Automatic Dry Powder Mortar Cement Mixer Production Line in Construction Industry

Product Description

Product Description
We have three types of lines: simple type, semi-automatic and economical type, and full-automatic and high-efficiency type.
We can design the most reasonable dry mortar production line with factory price according to your Budget investment, Capacity, Area condition, Formula, Different end products, etc. These dry mortar plants can be configured with a crushing machine, screen machine, and drying machine, in the area of lack of dried sand

The above are all on-site dry mix mortar production lines with different capacities, from simple dry mix mortar machines to automatic dry mix mortar production lines.
1. Small dry mix mortar machines have low investment and large returns, suitable for small and medium-sized enterprises.
2. The higher the output of the dry mortar production line, the higher the degree of automation.
3. You can also choose economical or automated pulse dust collectors according to your local environmental requirements.
4. In addition, the fully automatic dry mix mortar production line has a PLC control system with a high degree of automation, which can control the entire production line and observe the entire production process on the LED panel.
Product Parameters

Mode	Capacity	Area(Square meters)	Height	Note
Simple	1-5t/h	40	3m	Manual batching and packing
Basic	5-15t/h	40-60	6-10m	Manual batching, automatic packing
Semi Automatic Serial	5-15t/h	40-80	8-12m	Automatic batching of coarse material, manual
				batching of additive, automatic packing
Full Automatic	5-50t/h	40-100	10-25m	Automatic batching of coarse material, manual
				batching of additive, automatic packing
Full Automatic Tower	55-100t/h	60-500	10-30m	Automatic batching of coarse material, manual
				batching of additive, automatic packing

Automatic dry mortar production line Feature:

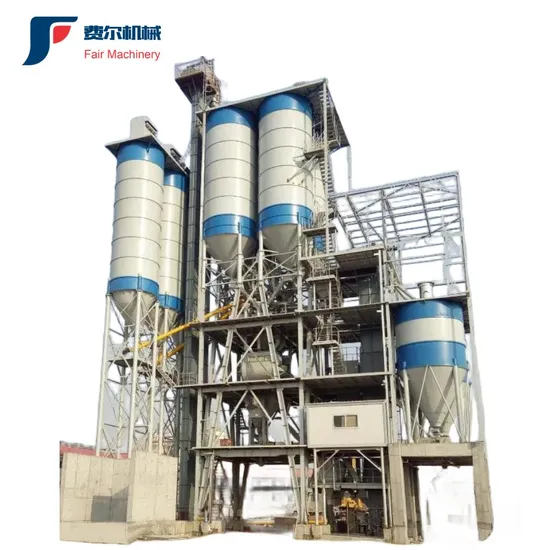

♦ Tower-type dry mortar production line is suitable for large-scale production.
♦ It can produce both ordinary mortar and special mortar.
♦ High efficiency, low operating costs, large output, production capacity up to 200t / h.
♦ Compact structure, less floor space, magnificent equipment.
What are the components of a dry mortar production line?
We can design the dry mortar production line drawing as per your requirement for free.
Drying system→Raw material storage tank(Bolted cement silo) →Screw conveyor Bucket elevator →PLC control system→ Pre-mixed Gravity-free double shaft mixer →Finished product hopper→ Packaging system(valve bag packing machine) →Bulk system Mixing system
Application
The dry mortar mixer can meet the performance requirements of dry mortar, dry material, and adhesive powder production needs, such as putty powder, powder coating, masonry mortar, plaster mortar, insulation mortar, decorative mortar needed by the system, and so on all kinds of dry powder mortar
Workshop

Packaging & Shipping
Company Profile
Henan FAIR Machinery Co. Ltd Since 1997 it is located in Zhengzhou city China's transportation hub city.FIER Specializing in the production machine manufacturing of mixing machines, dry mortar production lines, Packing machines, sand Dryers, crushing machines, etc. Single machines and production lines are widely used in construction, mining, chemical industry, building materials, feed, powder mortar, metallurgy, environmental protection, and other fields. FIER is committed to contributing to the development of The world's happiness. Make global customers richer. deeply domestic and foreign customers' trust and praise.
FAQ
1. What's the difference between a fully automatic dry mortar plant and a Semi-automatic dry mortar plant?
(1) Semi-automatic dry mortar plant is cheaper than full automatic dry mortar plant.
(2) Semi-automatic dry mortar plants do not need to equip silos while full automatic dry mortar equips material silos.
(3) Semi-automatic dry mortar is manual feeding and automatic weighing and packaging, and Full automatic dry mortar plant is automatic feeding and automatic weighing and packaging.
2. How many people are required to operate this tower-type dry mix mortar manufacturing plant?
Usually, 2-3 workers are enough to operate this full automatic tile adhesive mortar production line.
3. What equipment and service you can provide?
We can provide you with turnkey solutions for dry mortar plants from working site planning to dry mortar machines, transportation, installation and training, the formula of dry mortars, after-sales services, lifetime technical support, etc.
4. How about the investment in this project?
Our engineer can design the dry mortar plant according to your requirements and your budget, different dry mortar plant investments are different. Low capacity low cost, we will provide you with cost-effective solutions as per your requirements.
To provide you with a suitable quotation we need to know the following information:
1. What capacity do you need?
2. How many raw materials do you use? What's the estimated ratio?
3. Is a sand dryer required in this system? What is the fuel you use, coal? gas or diesel?
4. Regards packing, how many kg per bag do you need?
