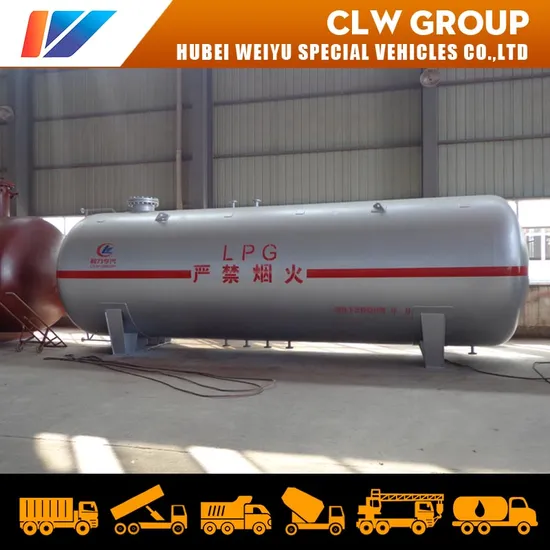

25ton LPG Storage Tank 50cbm LPG Gas Tank LPG Filling Plant for Nigeria
| US$11,890.00-21,360.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CLW50145
Material
Carbon Steel
Pressure
1.6MPa≤p<10.0MPa
Storage Medium
Flammable/Toxic
Pressure Level
Medium Pressure (1.6MPa≤p<10.0MPa)
Condition
New
Tank Material
Q345r
Loading Capacity
50cbm, 50000liters, 25ton
Tank Thickness
14mm
Shell Thickness
16mm
Design
1.71MPa, 17.7bar
Hydraulic Test Pressure
2.21MPa 22.1bar
Tank Diameter (mm)
Dn2600, Dn2700
Corrosion Allowance
1 mm
Life Time
20 Years
Logo
as Customer′s Request
Warranty
One Year
Usage
LPG Gas Storage, Station Tank
Tank Weight
10640 Kg
Transport Package
Naked, Waxed
Specification
13866 x 3132 x 3722 mm
Trademark
CLW
Origin
Suizhou, China
HS Code
73110090
Production Capacity
500 Unit/Month
Product Description
25ton LPG Storage Tank 50cbm LPG Gas Tank LPG Filling Plant for NigeriaProduct Description
1. LPG Tank Storage Content: LPG Gas, Propane, Butane, Liquid Ammonia, etc
2. Tank Design Standard: GB150-2013, ASME Standard with U STAMP,
3. Test: 100% Radiaographic Test, Magnetic Power Test, Water Pressure.
25tons LPG Storage tank
| 50 CBM LPG TANK DIMENSIONS | |||
| Volume of Tank | 50 CBM | ||
| Filling Weight | 19950 kg | ||
| Tank Weight | 10640 kg | ||
| Thickness of Shell (mm) | 14 mm | ||
| Thickness of End plate (mm) | 16 mm | ||
| Tank Diameter (mm) | 2600 mm | ||
| External Dimensions (mm) (length x width x height) | 9912 x 2628 x 3218 mm | ||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | ||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | ||
| Design Pressure | 1.77 MPa / 17.7Bar | ||
| Corrosion Allowance | 1 mm | ||
| Medium Density | 500 kg/ cbm | ||
| Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. | |||
| Main parts of LPG Tank | |||
| Item | Specification | Quantity | |
| Discharge Pipe | DN80 | 1 | |
| Inflow Pipe | DN80 | 1 | |
| Gas phase balance pipes | DN50 | 2 | |
| Drain Hole | DN50 | 1 | |
| Manhole | DN450 | 1 | |
| Air-out Pipe | DN50 | 1 | |
| Safety Valve Pipe | DN80 | 2 | |
| Safety Accessories (Included in the quotation): Cut-off Valve, Needle Valve, Safety Valve, Magnetic Liquid level meter, Pressure gauge, Temperature Gauge. | |||
Product Diagram
Product Process
Other Special Truck Series
Company Introduction
Overseas Exhibition and Local Support
Customer Visiting
