Plastic PP Thermoforming Machinery Price

Product Description

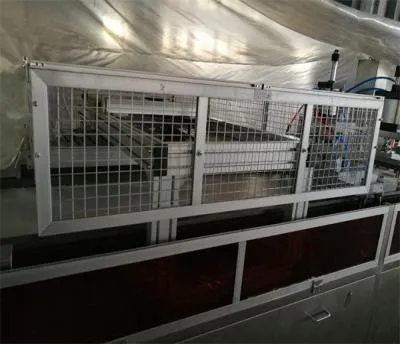

Automatic Container&Tray Thermoforming Machine With Laser Cutting Product Description
Machine has the reasonable design,novel structure,use the infrared radiator heating and servo traction,equipped with plate mold,punching and die cutting, waste recycle,synchronous assembly line work, and have the excellent properties of machine tool guide-way type trip is adjustable, intuitive, convenient operation and maintenance of the production process, complete function,has the following obvious characteristics:
Laser cutting is the new generation of cutting system, it mated the need of various of products' shape. Adopts chain and servo traction device,adjust stroke between 20-320 mm by step less Using Infrared radiation heating system, heating area corresponding to the molding area to ensure that the heating material temperature to achieve positive pressure molding requirement,keep the material shrink rate is the most stable quantity,ensure the product forming best.The heating system is unique and sheet it is compression of the sheet surface has the effect on surface texture, make more transparency, clear surface after molding, products with no grain, greatly improving the aesthetic of product. Send the transmission device, such as gear, screw, shake handle, can make all kinds of mold on the machine base circular guide around mobile, can adapt to different specification and packing of the products, expand the scope of the machine ,debugging more convenient Adopt PLC programmable controller to design the program logic, host frequency control, human-machine interface display operation .Human-machine interface can be directly set with each part number to make operation more intuitive and simple.
Product Parameters

Items	CWPP-520
Punch frequency	PP:10-20 PVC/PET/PS:10-35(Times/min)
Max.Forming area	PP/PS/PVC/PET:470x340mm
Max.Forming depth	55mm
Stroke	PP/PS/PVC/PET:60-350mm
Packing Material	0.15-0.6mm Roll 70-75mm
Material	PVC/ PET/ PS/ PP
Material Width	520mm
Total power	27kw
Air compressed	0.6-0.8Mpa
Mold cooling	60L/H tap water/recycle water
Overall dimension	6350×2400×1800mm
Weight	3200kg
