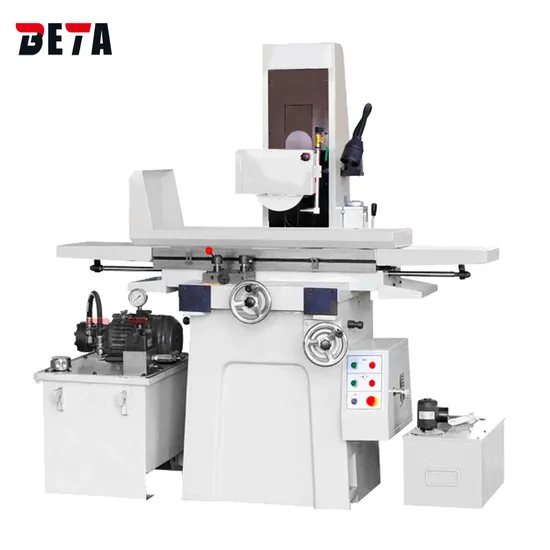

M820 Manual Flat Surface Grinding Machine Price List
Basic Info.
Model NO.
M820
Type
Surface Grinding Machine
Processing Object
Metal
Abrasives
Grinding Wheel
Controlling Mode
Manual
Automatic Grade
Manual
Cylindrical Grinder Type
Surface Grinding Machine
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Manual Surface Grinding Machine
Model
M820
Worktable Size
480X200mm
Wheel Speed
50Hz 2850rpm, 60Hz 3440rpm
Grinding Type
Surface Grinding for Metal
Chuck
Magnetic Chuck Table
Delivery Time
1 Month
Warranty Time
12 Months
Voltage
380V
Cross Moving
Manual
Longitudinal Moving
Hydraulic
Grinding Wheel Size
200X20X31.75mm
OEM
Available
Transport Package
Wooden Case
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
1000.000kg
Product Description
M820 Manual Flat Surface Grinding Machine Price List
| Model | Unit | M618A | M820 | M1022 | ||
| Working table | Table Size (L * W) | mm | 460*180 | 480*200 | 540*250 | |
| Max movement of working table(L * W) | mm | 500*190 | 530*220 | 560*260 | ||
| T -Slot number * width | mm | 1*14 | 1*14 | 1*14 | ||
| Grinding head | Max distance from spindle center to table surface | mm | 335 | 440 | 420 | |
| Wheel Size (Outer diameter * width * Inner diameter) | mm | Φ180*13*Φ31.75 | Φ200*20*Φ31.75 | Φ200*20*Φ31.75 | ||
| Wheel speed | 50HZ | r/min | 2850 | 2850 | 2850 | |
| 60HZ | 3440 | 3440 | 3360 | |||
| Feed amount | Vertical feed on handwheel | Per revolution | mm | 1.25 | 2.5 | 4 |
| Per graduation | mm | 0.01 | 0.02 | 0.02 | ||
| Cross feed on handwheel | Per revolution | mm | 2.5 | 1.25 | 1.25 | |
| Per graduation | mm | 0.02 | 0.01 | 0.01 | ||
| Motor power | Spindle motor | kw | 1.1 | 1.1 | 1.5 | |
| Coolant pump motor | w | 40 | 40 | 40 | ||
| Working precision | The parallelism of working surface to base level | mm | 300:0.005 | 300:0.005 | 300:0.005 | |
| Surface roughness | μm | Ra0.32 | Ra0.32 | Ra0.32 | ||
| Weight | Net | kg | 650 | 700 | 850 | |
| Gross | kg | 750 | 800 | 950 | ||
| Overall dimension(L*W*H) | mm | 1550*1150*1590 | 1680*1140*1760 | 1680*1220*1720 | ||
| Package dimension(L*W*H) | mm | 1000*1150*1760 | 1140*1250*1940 | 1200*1400*1940 | ||
