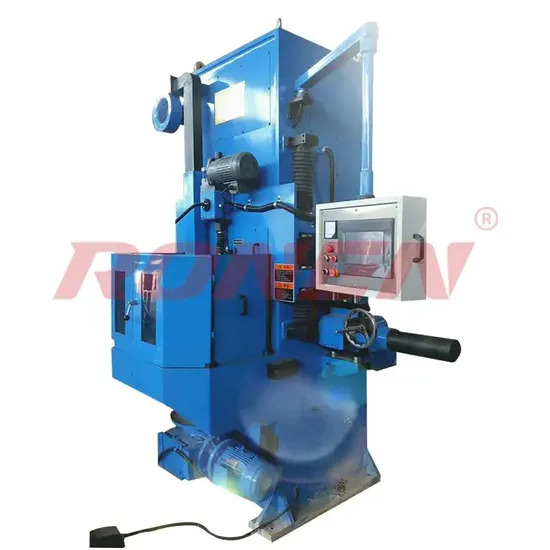

Rn400-12b Single Tray CNC Spring Grinding Machine Automatic Spring End Grinding Machine

Rn400-12b Single Tray CNC Spring Grinding Machine Automatic Spring End Grinding Machine

US$4,999.00-40,000.00 1 Set (MOQ)

Basic Info.

Model NO.
Rn400-12b
Processing Object
Spring
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
End Cylindrical Grinder
Precision
Precision
Certification
CE
Condition
New
Machine
Universal
Key Selling Points
Long Service Life
Applicable Industries
Manufacturing Plant, Machinery Repair Shops
Video Outgoing-Inspection
Provided
Core Components
Motor
Delivery
Delivery on Time Without Delay
After Sales
Provide Solutions Within 24 Hours
Voltage
380V
Color
Customized
CNC or Not
CNC
Marketing Type
New Product 2023
Machinery Test Report
Provided
Warranty of Core Components
1 Year
Machine Name
Spring Grinding Machine
Application
Electronic Appliances,Cars, Jewelry,Instruments
Transport Package
Seaworthy Packing
Specification
2200*1900*2730
Trademark
RONEN
Origin
Hebei, China
Production Capacity
100 Sets/Year

Product Description


Concrete parameter:
No. Name Parameters Units
1 Diameter of grindable steel wire: Φ3-Φ12 mm
2 Outer diameter of grindable spring: Φ120 mm
3 Height of grindable spring: 30-400 mm
4 Tray diameter: Φ750(2pcs) mm
5 Grinding wheel diameter: Φ660×Φ150×100 mm
6 Wheel speed: 970 r/min
7 Linear speed of grinding wheel: 35 m/s
8 Material tray speed: 0-22.5 r/min
9 Feed rate of upper grinding head: 0-105 mm/min
10 Total motor power: 38.5 kw
11 Flow of cooling fan: 2500-3800 m³/h
12 Total machine weight: 7.5 T
13 Main engine appearance (L*W* H): 2905×2380×2726 mm
14 Ambient temperature: +5 to +40 ºC
15 Ambient humidity: ≤90 %
16 Adaptive altitude: ≤1000 m

Company Information
"RONENFORM" BG(a member of RGL) is dedicated to manufacturing series of Wires/Springs Forming Machines, Tubes Bending Forming Machines, and various auxiliary equipment and spare parts. The company is headquartered in Beijing, and its manufacturing workshop is located in Baoding and Cangzhou. It provides high quality equipment for domestic and foreign pipe and auto parts customers, with rich experiences of serving the industrial field for more than 20 years, "RONENFORM" becomes a reliable professional wire/tube forming equipment supplier and life time partner. "RONENFORM" does not only provide machines, but also the know-how on specific products thanks to backup by a technician team consists of many top professors-being called "Craftsman", we are confident to guarantee all our customers that our manufacturing level /serving level ranks at the top all over China. We follow up the principle of "ZERO FAULT"on each steps of business with you. RONENFORM will always be here for you!
Cnc Automatic Spring End Grinding Machine
Machine advantages:
1. The machine tool adopts man-machine interface for easy operation.
2. This machine is used for dry grinding of compression springs and can be used for producing large wire diameter compression springs.
3. This machine can adopt two different grinding methods, progressive grinding and press in grinding.
4. The machine tool has two grinding heads, the king axis of which is located on the same axis. The upper and lower grinding heads are independently driven by two grinding wheel motors. The feed of the grinding head can be adjusted (motorized). When the grinding wheels of the upper and lower grinding heads are worn, they can be compensated by their respective grinding wheel compensation motors.
5. As the machine tool is a large wire diameter spring grinding machine, the grinding time differs greatly from the feeding time, so the machine tool adopts a single feeding tray and a foot switch to realize feeding and discharging.
6. This machine is an automatic spring grinding machine. The upper grinding wheel automatically feeds to the material tray during grinding. The feed speed (or pressure) is inversely proportional to the increase of the grinding amount. The ground spring can obtain a predetermined height.
7. The machine is equipped with the position control program of the upper and lower guide plates relative to the upper and lower grinding wheels. According to experience, it can be automatically compensated once by grinding a certain number of discs, or manually compensated according to the actual size of the spring after grinding.
