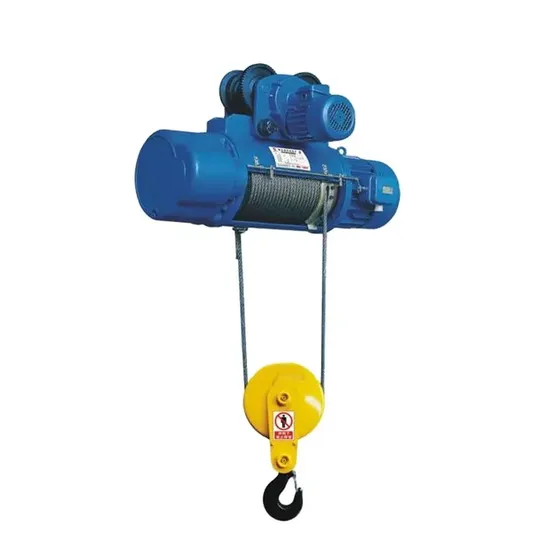

1~10 Ton 5m 10m 15m CD MD Type Electric Wire Rope Hoist

Product Description

Product Description
Lifting hoist model CD wire rope electric hoist is small-sized lifting equipment, which can be mounted on single beam, bridge, gantry and arm cranes. With slight modification, it can also be used as a winch. It is widely used in factories, mines, harbors,warehouses, cargo storage areas and shops, essential in raising working efficiency and improving working conditions. It has only one normal speed, which can satisfy normal application.
1. Design: International advanced tide compact and nice.
2. Reduce: High strength hard gear surface, inclined gear driving with low noise.
3. Motor: Inside fit plane brake, double winding pole changing control motor, incorporate with reducer.
4. Wire Rope: The tensile strength is 1760N/mm2.
5. Limit Switch: Cam limit model operate safety
Advantages of Vohoboo Wire Rope Hoist:
• CE approved.
• Lightweight robust construction.
• Low effort to lift maximum load.
• Fully forged hooks.
• High grade alloy load chain.
• Durable baked enamel paint protection.
• Overload protection device available upon request.
• Excellent after-sale serve, market agent support and protection.
• Excellent quality, top in China, always the leader.
• Sample order and trail order are acceptable.
Detailed Photos
Product Parameters

	Lift Capacity	Lift Height (m)	Lift Speed	Travelling Speed	Rope Reeving	Wire Rope Diameter	Work Duty
Model	(t)		(m/min)	(m/min)		(mm)
CD1-0.5	0.5	6/9/12/18/24/30	8	20	1/2	5.1	M3
CD1-1	1	6/9/12/18/24/30	8	20	1/2	7.6	M3
CD1-2	2	6/9/12/18/24/30	8	20	1/2	11	M3
CD1-3	3	6/9/12/18/24/30	8	20	1/2	13	M3
CD1-5	5	6/9/12/18/24/30	8	20	1/2	15	M3
CD1-10	10	6/9/12/18/24/30	7	20	1/4	15	M3
CD1-16	16	6/9/12/18/24/30	3.5	20	1/4	17.5	M3

Packaging & Shipping

Company Profile
Hebei Jili Rigging Co.,ltd. is located in Donglu Industrial Park,Baoding City, the "Hometown of Light Lifting in China".
Our company is a comprehensive enterprise integrating R&D,manufacturing,sales and service.
The company's main products are portable electric hoist,small King Kong electric hoist,miniature electric hoist,chain hoist,lever hoist,chain electric hoist,truck series (manual hydraulic truck,electro-hydraulic truck,hydraulic forklift, electro-hydraulic Forklift)lifting platform and a series of storage and handling tools,the company has advanced equipment production lines,a strong technical research and development team and a professional service team,can be customized according to customer needs,and design hoisting solutions for customers.
FAQ
1.WHEN CAN I GET THE PRICE? We usually quote within 24 hours after we get your inquiry.if you are urgent to get the price,please tell us by email or call us. 2.HOW CAN I GET A SAMPLE TO CHECK YOUR QUALITY? After price confirmation ,you can require for sample to check our quality. 3.CAN YOU DO THE DESIGN FOR US Yes.We can manufacture the products as per your requirements. 4.HOW LONG CAN I EXPECT TO GET THE SAMPLE? It will be ready for delivery in 3-7 days.The samples will be send to you via express and arrive in 3-5 days. You can use your own express account or prepay us if you do not have an account. 5.MASS PRODUCTION CYCLE? It depends on the order quantity,the lead time of MOQ is about 30 days. 6.TERMS OF DELIVERY? FOB,CIF,etc.You can choose the one which is the most convenient or cost effective for you.
