Manufacturer 1.5 Ton Diesel Forklifts 3 Ton 2.5 Ton Electric Forklift 2 Ton 3.5 Ton 4 Ton 5 Ton Forklift

Product Description

Product Description
Dongwang forklift integrating the research and development, manufacturing, sales and service of forklifts, producing a full series of electric forklifts, all-terrain forklifts and electric stacker, with independent marketing network and perfect service network in China, provide a full range of products containing weight 0.5~10 tons of each type of forklift truck.

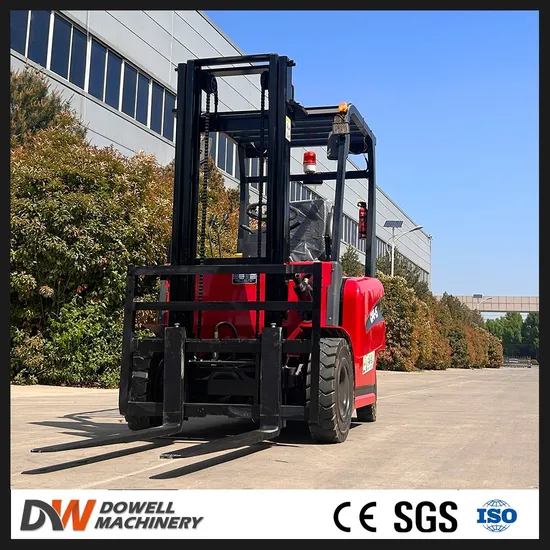

Detailed Photos


Product Parameters

Main Parameter	Model	/	CPD0.8	CPD1.0	CPD1.5	CPD2.0	CPD2.5	CPD3.0
	Power form	/	Lead Acid Battery or Lithium Battery	Lead Acid Battery or Lithium Battery	Lead Acid Battery or Lithium Battery	Lead Acid Battery or Lithium Battery	Lead Acid Battery or Lithium Battery	Lead Acid Battery or Lithium Battery
	Rated load lifting capacity	kg	800	1000	1500	2000	2500	3000
	Center distance of rated load	mm	500	500	500	500	500	500
	Wheel Base	mm	900	1330	1550	1630	1680	1950
Size	Mast Tilt Angle(Front/Rear)	αβ	6/8	6/8	6/8	6/8	6/8	6/8
	Min. Ground Clearance	mm	100	100	100	100	100	100
	Max. Lifting Height	mm	3000	3000	3000	3000	3000	3000
	Overall Dimensions(L/W)	mm	1850*1120	2100*1120	2330*1200	2430*1200	2550*1200	2830*1200
	Mast Extended/Lowered Height	mm	3550/2080	3550/2080	3550/2080	3550/2080	3550/2080	3550/2080
	Fork size L/W/T	mm	1070	1070	1070	1070	1070	1070
	Min. Turning Radius	mm	2000	2200	2250	2420	2420	2420
	Safety Rack Height	mm	2100	2140	2140	2140	2150	2200
Weight	Weight(with Battery)	kg	1310	1660	2150	2680	3600	3800
Tyre	Tyre		Solid Tire	Solid Tire	Solid Tire	Solid Tire	Solid Tire	Solid Tire
	Turning Tyre Size	/	400-8	400-8	5.00-8	5.00-8	5.00-8	5.00-8
	Driving Tyre Size	/	500-8	500-8	6.50-10	6.50-10	6.50-10	6.50-10
	Front Track	mm	1140	1000	10500	1030	1140	1140
	Steering Wheel Distance	mm	920	880	880	910	920	920
Power and Control	Drive Motor Rated Power	kw(60min)	1.2	2.5	3	5	7.5	10
	Lift Motor Rated Power	kw(15min)	0.8	1.5	3	4	7.5	7.5
	Battery Voltage	V/ah	60/70	60/70	60/70	60/70	60/70	60/83
	Controller	/	AC/DC	AC/DC	AC	AC	AC	AC
	Working Pressure	mpa	15	15	15	15	15	15
Others	Max. Climbing Ability	°	15	15	15	15	15	15
	Driving Brake Type	/	Oil Brake	Oil Brake	Oil Brake	Oil Brake	Oil Brake	Oil Brake
	Noise Level	/	68	68	68	68	68	68

Certifications
Company Profile

After Sales Service
Pre-Sales Service:
* Inquiry and consulting support.
* Photos&Videos for your order before shipment.
* Video visiting factory.
After-Sales Service:
* Training how to use the machine.
* Whole life-time supply for spare parts.
* User manual and details videos if you requested.
FAQ
1.Q:Are you manufacturer or trade company?
A: We are manufacturer, we have our own factory. Our factory has department for exploitation , producing, sales, after-sell service, packing , warehouse, we can offer you best products and best service.
2.Q: Are you interested in dealership with local company?
A: Yes, we are quite interested in this business cooperation. We'd like to cooperate with some local partner to sell more machines in local market and supply better service.We can discuss more if you also interested.
3. Q: Do you sell accessories for your machine?
A: Yes, all of matching accessories for our machine are on selling, we are willing to supply the matching parts to you with low price.
4.Q: What's your terms of packing?
A: Generally, we pack our goods Shipping in wooden boxes or shipping containers.
5.Q: What's your terms of payment?
A:Generally,30% as front money, and 70% before delivery. We'll show you the photos of the products and test videos.
6.Q: What's your terms of delivery?
A: EXW, FOB, CIF, DDU, DDP
7.Q: How about delivery time?
A: Generally, it will takes 3 to 10 days after receiving your advance payment. The specific delivery time depends on the quantity of your order.
8. Q: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit;
2. We respect every customer as our friend, no matter where they come from;
3. If you have any feedback that is cherished to us, please send email to us.
9.Q:Do you provide OEM/ODM Service ?
A:Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with different budgets
10.Q:Do you have CE certificate ?
A:Yes, we have the CE certificate
11.Q:What is your MOQ?
A:1Set.
