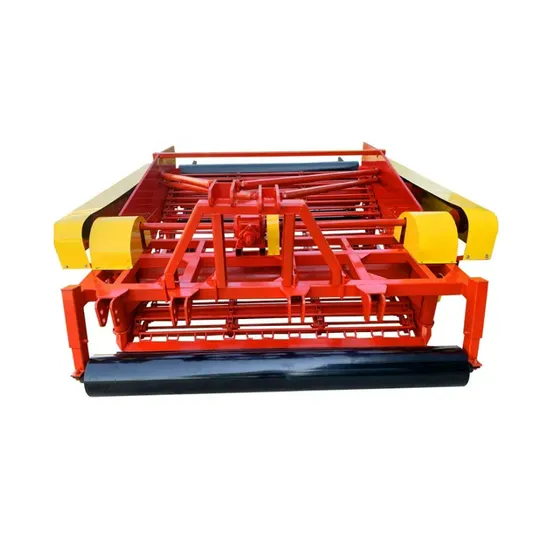

Tractor Mounted Peanut Potato Carrot Garlic Beetroot Onion Harvester
Basic Info.
Model NO.
4H-80
Power Source
Tractor
Harvest method
Picking
Drive Type
Gear Drive
Transmission
Hard Shaft
Portable Harvester Type
Backpack Type
Certification
Peanut,Garlic
Color
Red
Application Field
Agriculture
Warranty
2 Years
Supporting Form
Pull-Type
Row Distance(mm)
25 - 30 mm
Width
1600mm
Tractor Power(HP)
40 - 50 HP
Depth
40-160mm
Transport Package
Wooden Packing, Waterproof Packing
Specification
1800*950*1000mm
Trademark
JWM
Origin
China
Production Capacity
1000sets/Year
Product Description
Product DescriptionMultipurpose walking tractor harvester
This machine is used in conjunction with a tractor and is mainly used for digging and harvesting underground fruits of sweet potatoes, potatoes, peanuts, garlic, and rhizome medicinal crops in clay and semi-sand soil.
This machine can complete excavation, soil and seedling separation, and crop laying operations at one time. It has:
1. Small loss rate: During the suitable harvest period, the loss rate is small
2. Clean soil and seedling separation: Due to the use of vibrating lifting conveyor chain, the soil and fruit seedlings are effectively separated after being pressed by the pressure roller.
3. High operating efficiency: Due to small operating resistance, fuel consumption is reduced, which improves operating efficiency and economic benefits.
4. Easy to install and adjust: The optimized design makes installation more convenient and use and adjustment simpler.
5. The rotating parts of the whole machine are made of high-quality bearings, which have reliable performance and small movement resistance, making the operation more stable.
Product Parameters
| Model | Dimension (cm) | Matching power (kw) | Working width (cm) | Working efficency(hm2/h) | Weight (kg) |
| 4H-80 | 180*95*100 | 13.3-20.7 | 80 | 0.07-0.21 | 230 |
| 4H-130 | 295*152*105 | 29.6-37 | 130 | 0.17-0.3 | 520 |
| 4H-150 | 300*168*105 | 33-40.5 | 150 | 0.26-0.35 | 550 |
| 4H-165 | 355*189*120 | 59.2-64 | 165 | 0.23-0.40 | 820 |
| 4H-180 | 345*206*112 | 51.4-73.5 | 180 | 0.3-0.45 | 900 |
| 4H-215 | 350*240*120 | 73.5-88 | 215 | 0.3-0.5 | 1080 |
Detailed Photos
Packaging & Shipping
