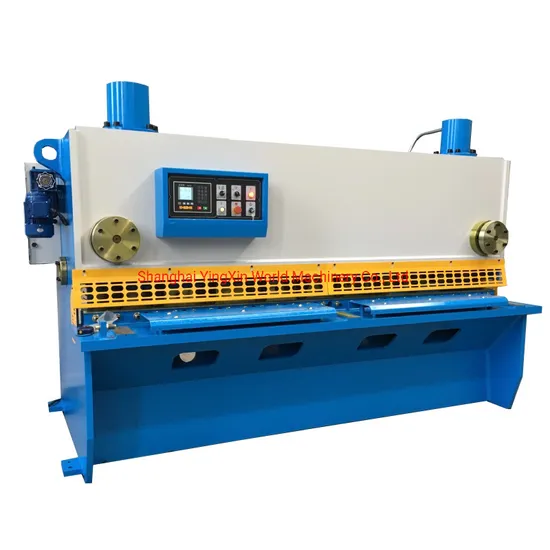

Nc Control Hydraulic Power Automatic Metal Cutting Machine

Nc Control Hydraulic Power Automatic Metal Cutting Machine

US$10,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
QC11Y
Certification
CE, ISO 9001:2000
Condition
New
Warranty
1 Year
Automatic Cutting Machine
Sheet Metal Cutting
Power Type
Hydraulic
Control System
Nc
Cutting Angle
Adjustable
Transport Package
in Container
Specification
ISO
Trademark
WORLD
Origin
China
HS Code
84295100
Production Capacity
5000 PCS/Year

Product Description

NC control hydraulic power metal cutting machine
Features:
1)Entirely steel welded frame, treated to release stress by tempering.
2)Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
3)Adopts rolling guideway to raise shear precision.
4)The stroke of knife beam can be adjusted.
5)With counter.
6)Shearing angle can be adjusted.
7)With protection fence.
Specifications
Items unit QC11Y-6x2500 QC11Y-6x3200 QC11Y-6x4000
Max. cutting thickness mm 6 6 6
Max. cutting width mm 2500 3200 4000
Tensile strength of plate to be cut N/mm2 450 450 450
Cutting angle deg 0.5-1.5 0.5-1.5 0.5-1.5
Travel distance of back gauge mm 20-550 20-550 20-600
Throat depth mm 150 150 150
Stroke speeds spm 16-26 12-22 10-20
Main motor kW 7.5 7.5 7.5
Length mm 3000 3700 4800
Width mm 1500 1650 1650
Height mm 2000 2050 2250
Items unit QC11Y-8x2500 QC11Y-8x3200 QC11Y-8x4000
Max. cutting thickness mm 8 8 8
Max. cutting width mm 2500 3200 4000
Tensile strength of plate to be cut N/mm2 450 450 450
Cutting angle deg 0.5-2 0.5-2 0.5-2
Travel distance of back gauge mm 20-600 20-600 20-600
Throat depth mm 150 150 150
Stroke speeds spm 14-25 12-20 10-20
Main motor kW 11 11 11
Length mm 3040 3860 4800
Width mm 1700 1700 1800
Height mm 2150 2350 2480
Items unit QC11Y-10x2500 QC11Y-10x3200 QC11Y-10x4000
Max. cutting thickness mm 10 10 10
Max. cutting width mm 2500 3200 4000
Tensile strength of plate to be cut N/mm2 450 450 450
Cutting angle deg 0.5-1.5 0.5-1.5 0.5-1.5
Travel distance of back gauge mm 20-600 20-600 20-600
Throat depth mm 150 150 150
Stroke speeds spm 12-20 10-20 10-18
Main motor kW 11 15 15
Length mm 3040 3860 4800
Width mm 1700 1700 1800
Height mm 2150 2350 2480
