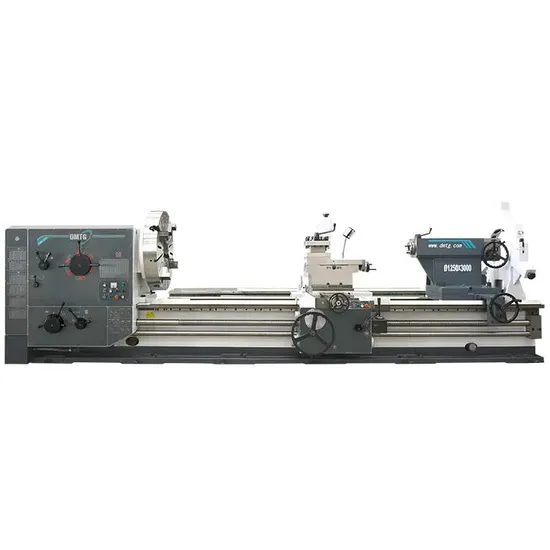

Heavy Duty Manual Lathe Cw61100m/Cw61125m/Cw61140m/Cw61160m Bed Guideway Width 755mm
Basic Info.
Model NO.
CW-M
Processing Accessory
Centre CNC Lathe
Guide Rail
Inclined Guide Rail
Power Source
Electric
Automatic Grade
Semiautomatic
Setting Mode
Table
Precision
High Precision
Certification
CE
Condition
New
Transport Package
Wooden Case Packing
Specification
/
Trademark
DMTG
Origin
Liaoning
Production Capacity
100 Sets/Month
Product Description
Heavy Duty Manual Lathe CW61100M/CW61125M/CW61140M/CW61160M Bed Guideway Width 755mm| MAIN PARAMETER | Max swing diameter over bed | mm | φ1000/φ1250/φ1400/φ1600 |
| Max swing diameter over cross slide | mm | φ630/φ880/φ1030/φ1230 | |
| Max workpiece length | mm | 1500-8000 | |
| Max cutting length | mm | 1300-7800 | |
| Spindle center height | mm | 500/625/700/800 | |
| Bed guideway width | mm | 755 | |
| SPINDLE | Spindle motor power | kW | 22/opt:30 |
| Spindle bore | mm | φ130 | |
| Chuck size | mm | φ1000-φ1600 | |
| Taper of spindle bore | Metric φ140 1:20 | ||
| Spindle speed ranges | r/min | 3.15-315 | |
| TAILSTOCK | Diameter of tailstock quill | mm | φ160 |
| Travel of tailstock quill | mm | 300 | |
| Taper of tailstock quill | Metric 80 | ||
| TOOLPOST | Tool shank size (Vertical 4-position) | mm | 45*45 |
| Other | Machine dimension | mm | 4450*1855*1890 |
| Weight | mm | 9000kg |
