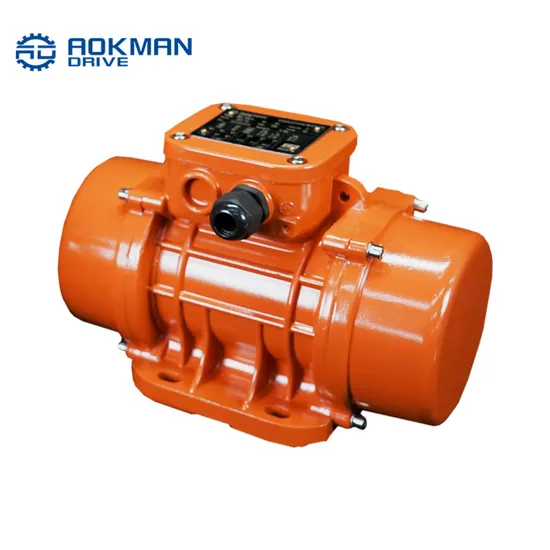

Aokman Drive Vibrating Feeder Machine Vibration Motor

Aokman Drive Vibrating Feeder Machine Vibration Motor

US$200.00
2-49 Pieces
US$100.00
50-99 Pieces
US$80.00
100+ Pieces

Basic Info.

Model NO.
MVE
Number of Stator
Three-Phase
Function
Vibrating
Casing Protection
Protection Type
Number of Poles
2
Starting Mode
Variable Frequency Starting
Brand
Aokman
Type
Vibrator Motor
Frequency
50Hz/60Hz
Voltage
380V
Pole
2p/4p/6p
Cooling Method
IC410
Mounting
B3 B5 B35
Warranty
1 Year
Ambient Temperature
-20°ºC~+40ºC
Degrees of Protection Provided
IP55 . IP65.IP66;
Altitude
<1000m
Duty Type
S1
Mounting Arrangement
Mounting Arrangement
Lnsulation Class
F
Place of Origin
Henan, China
Model Number
Mve
Transport Package
Wooden Cases
Specification
20cm~58cm
Trademark
AOKMAN DRIVE
Origin
China
Production Capacity
3000PCS/Month

Product Description

Aokman Drive Vibrating Feeder Machine Vibration Motor 1.This motor is of a reasonable design using superior process materials in order to product a highly efficient motor with a low operating temperature with a long service operating life.
2.The weight density and design this vibratory motor has a good vibratory output force(KN) with a high starting torque and low electrical power consumption.
3.Low operating noise levels(dB) during running and fluctuating loads.
4.This vibratory motor has a completely enclosed construction whereas it can used in high levels of various dust environments.
5.By adjusting the angle of the counterweights(flyweight) various levels of vibratory force percentage can be achieved.
6.Based on the method of the electric vibrators installation,the direction of the vibratory forces can be obtained.
7.The various levels of vibratory models of vibration are able to be achieved for the work required.
AOKMAN can design and manufacture customized electric vibrators with 50HZ/60HZ frequency, customized voltage range ,high altitude according to custom's special requirement.

Model
Rated Force(N) Rated Speed(rpm) Rated Power(Kw) Rated Current(A) Rated Voltage(V) Mounting dimension(mm)
Lay-out dimension(mm)
A B H n-φK AB BB HD G L
MVE-0.5-2 500 3000 0.03 0.16 380 106 62-74 48 4-φ9 130 121 136 10 121
MVE-1-2 1000 3000 0.04 0.19 380 106 62-74 48 4-φ9 130 121 136 10 121
MVE-2-2 2000 3000 0.09 0.35 380 106 62-74 64 4-φ9 131 123 159 12 123
MVE-3-2 3000 3000 0.16 0.52 380 125 90 79 4-φ13 155 163 175 14 253
MVE-4-2 4000 3000 0.2 0.58 380 125 90 79 4-φ13 155 163 175 14 273
MVE-5-2 5000 3000 0.37 0.96 380 140 105 92 4-φ13 168 178 196 20 334
MVE-7-2 7000 3000 0.45 1.25 380 140 105 92 4-φ13 168 178 196 20 334
MVE-8-2 8000 3000 0.55 1.45 380 170 120 94 4-φ17 208 205 210 22 321
MVE-10-2 10000 3000 0.75 1.85 380 170 120 94 4-φ17 208 205 210 22 321
MVE-13-2 13000 3000 1.1 2.44 380 170 120 94 4-φ17 208 205 210 22 321
MVE-16-2 16000 3000 1.25 2.78 380 190 140 120 4-φ17 234 220 272 26 437
MVE-18-2 18000 3000 1.35 3 380 190 140 120 4-φ17 234 220 272 26 437
MVE-20-2 20000 3000 1.5 3.1 380 190 140 141 4-φ17 356 206 287 25 452
MVE-22-2 22000 3000 1.5 3.1 380 190 140 141 4-φ17 356 262 287 25 452
MVE-23-2 23000 3000 1.5 3.1 380 190 140 141 4-φ17 356 262 287 25 452
MVE-32-2 32000 3000 2.2 4.6 380 190 155 160 4-φ25 380 254 287 30 552
MVE-40-2 40000 3000 2.3 5.3 380 255 155 160 4-φ25 302 273 287 30 538
MVE-50-2 50000 3000 3.5 7.22 380 255 155 160 4-φ25 302 273 318 30 588
MVE-65-2 65000 3000 4.2 8.2 380 255 200 200 4-φ28 378 325 318 40 605
MVE-90-2 90000 3000 7.2 17.8 380 320 200 200 4-φ28 378 325 411 40 605
MVE-120-2 120000 3000 10 19 380 320 250 204 6-φ38 452 367 411 40 646

Our Company
1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services.
Wholesale Gear Motors Powerful NMRV 050 Worm Gearbox for Elevator
AOKMAN DRIVE DRIVE BY QUALITY.
Industrial Gearboxes & Customized Solutions Just For You
Pre-sale services 1. Select equipment model.
2.Design and manufacture products according to clients' special requirement.
3.Train technical personal for clients
Services during selling 1.Pre-check and accept products ahead of delivery.
2. Help clients to draft solving plans.
After-sale services 1.Assist clients to prepare for the first construction scheme.
2. Train the first-line operators.
3.Take initiative to eliminate the trouble rapidly.
4. Provide technical exchanging.

FAQ
1. How to choose a gearbox which meets our requirement?
You can refer to our catalogue to choose the gearbox or we can help to choose when you provide
the technical information of required output torque, output speed and motor parameter etc.
2. What information shall we give before placing a purchase order?
a) Type of the gearbox, ratio, input and output type, input flange, mounting position, and motor information etc.
b) Housing color.
c) Purchase quantity.
d) Other special requirements.
3. What industries are your gearboxes being used?
Our gearboxes are widely used in the areas of textile, food processing, beverage, chemical industry,escalator,automatic storage equipment,metallurgy,environmental protection, logistics and etc.
4. Do you sell motors?
Yes,We produce different types of motors.We can provide motors with high quality.
Contact
Address: No.1394, Hanghai Road, Zhengzhou, China
Zip Code: 450016
