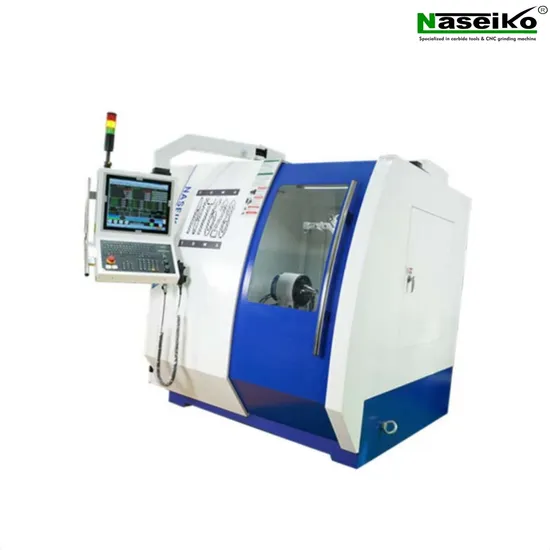

Chinese Manufacturer′s CNC Machinery 5 Axes Tools Sharpening Equipment Economical Grinder

Product Description

Chinese Manufacturer's CNC Machinery 5 Axes Tools Sharpening Equipment Economical Grinder
The 5-axis 5-linkage CNC tool grinder is based on the experience of the German 5-axis CNC tool grinder . It is designed based on the practical experience of designers and exchanges at the tool production site,in terms of practicality, economy, operation, maintenance, stability and efficiency be reflected. The machine tool adopts an integral imported organic glass circular door to facilitate unrestricted operation and maintenance of the machine tool. The fully enclosed protective cover complies with production safety. In order to cope with the production of special tools, the relative position relationship of the servo axis of the equipment is optimized, which can correspond to many types of tools processing machine structure. All axes use imported servo motors and screw guides with high precision and resolution to ensure high production efficiency and quality of the cutting tools.

Product Parameters

	Unit	NT618
Japan servo motor drive (absolute value) stroke (X/Y/Z axis)	mm	500/470/250
CNC system resolution (X/Y/Z axis)	mm	0.0001
Minimum resolution for programming of handwheel feed (X/Y/Z axis)	mm	0.0001
THK screw (X/Y/Z axis)	-	BN-FN32-C3
Repositioning accuracy (X/Y/Z axis)	mm	0.003
Guide rail (X/Y/Z axis)	-	HSR30
Workpiece rotation axis (A/B axis)	-	rotation axis
DD servo drive (A/B axis)	-	direct drive
Rotary encoder (A/B axis)	-	RENISHAW, UK
Indexing accuracy (A/B axis)	-	2 arc seconds (0.0005 degrees)
Rated speed (A/B axis)	rpm	250/200
Maximum revolutions (A/B axis)	rpm	250/200
CNC system resolution (A/B axis)	degree	0.0001
360 degree rotation, indexing head body (A/B axis)	-	Could be installed with Shaw Berlin W25 collet holder or BT50 knife handle
Quick movement (X/Y/Z axis)	m/min	7.5
Minimum diameter for clamping workpiece	mm	3
Maximum diameter for clamping workpiece	mm	20
Maximum length for clamping workpiece	mm	250
Minimum diameter for grinding workpiece	mm	1
Maximum diameter for grinding workpiece	mm	16
Maximum blade length for grinding	mm	≤100
Maximum workpiece weight	kg	5
Linear resolution	mm	0.0001
Linear repeat positioning accuracy	mm	0.003
Rotation resolution	mm	0.0001
Rotation Repetitive Positioning Accuracy	degree	0.001
Spindle power	kw	12kw permanent magnet variable frequency motor
Grinding wheel diameter	mm	75-150
Grinding wheel spindle speed	rpm	4000-8000
Stepless adjustable	-	inverter
Machine weight	kg	2000
Total power	kw	≤29kw

Detailed Photos
FAQ
Q: What is your product line?
A: CNC grinding machine,
CNC mismatch grinder machine,
Electronics servo press machine,
Precision Grinding Wheel Dressing Machine.
Carbide end mill, carbide burr, dental burrs, and other tungsten carbide items,etc.
Q: Is ODM or OEM production supported?
A: Yes.
Q: What is MOQ for your product?
A: For standard models machine, MOQ is 1 set ;
For OEM ODM customized machine, MOQ is from 10 sets.
For carbide tools, MOQ is from 1000 units.
Q: How long is the delivery time?
A: For standard Naseiko machine, it is about 1-2 months after order confirmed;
For customized machine, it will be 6~12 months after order confirmed;
For customized milling cutter or carbide burrs, it is about 1 month.
Q: Where is your loading port?
A: Shanghai / Guangzhou ,China port.
Q: How do you implement equipment warranty overseas?
A: At present, we have contracted after-sales service points overseas, and in the future, we will establish our own after-sales service centers in key overseas markets.
Q: What are your benefits superior to other suppliers?
A: Naseiko Intelligent technology is a manufacturing enterprise with years of industry experience, focusing on the research and production of CNC tool grinders. Our team has rich experience and professional knowledge in this field.
We have international advanced testing equipment, excellent craftsmanship and refine quality management system,
as well as professional team. It ensures our products stable and reliable.
