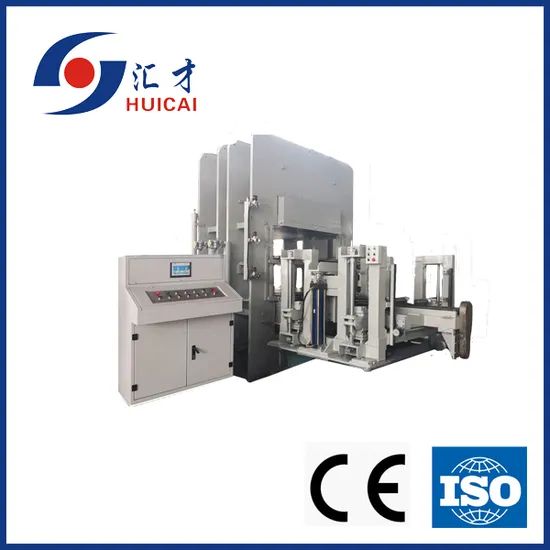

Rubber Vulcanizing Press Machine Manufacture
| US$6,000.00 | 1 Piece (MOQ) |
Basic Info.
Customized
Customized
Automatic Grade
Seni or Auto
Structure
Vertical
Total Pressure (Mn)
1.60-2.00
Working Layers
1
Piston Stroke (mm)
250-500
Daylight ′(mm)
125-500
Motor Power (Kw)
2.2
Heating Manner
Electric, Oil
Electric Pipe Heating Power (Kw)
9
Type
General Rubber Machinery
Type of General Rubber Machinery
Material Processing Machine
Transport Package
Packed in Wooden Case or Bare Packing
Specification
1000x1000x1
Trademark
HUICAI
Origin
Qingdao, China
HS Code
8477800000
Production Capacity
200 Sets/Month
Product Description
Qingdao Huicai Machinery Manufacturing Co., Ltd. Is the professional manufacturer which research, develop and produce various press vulcanizer, plate press vulcanizer, rubber mixing mill and the other rubber machinery and tire machinery. It has ten years' history of producing rubber machinery, and it has gained good reputation among the industry.This machine is the frame plate press vulcanizer series. It is mainly used in the vulcanization of various rubber products. It generally adopts frame structure with compact structure, beautiful modeling and strong clamp force. The upper template of each working position can by heated up to 180degrees Celsius (adjustable), the lower template can control the temperature in the room temperature, which forms the effective temperature difference. This machine has unique two-temperature working position structure and high pressure performance which are suitable for various reflective material products such as press forming of trademark light, etc.
| Model | XLB-D(Y)1000x1000x1 | XLB-D(Y)1200x1200x1 | XLB-D(Y)1500x1500x1 |
| Total pressure (MN) | 1.60-2.00 | 1.60-2.50-3.15 | 3.15-5.00 |
| Working layers | 1 | 1 | 1 |
| Piston stroke (mm) | 250-500 | 250-500 | 250-500 |
| Motor power (KW) | 2.2 | 2.2/3.0 | 2.2/3.0 |
| Daylight (mm) | 125-500 | 125-500 | 125-500 |
| Heating manner | electric,oil | electric,oil | electric,oil |
| Electric pipe heating power (KW) | 9 | 9.8 | 12.5 |
