US$3,000.00-14,200.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
High Pressure Vertical
Position of Pump Shaft
Vertical Edge
Certification
CE, ISO, SGS
Adjustable Pressure ( Low Pressure)
0-50bar/725psi
Adjustable Flow Rate( Low Pressure)
0-75L/Min
Adjustable Pressure ( High Pressure)
0-100bar/1450psi
Adjustable Flow Rate ( High Pressure)
0-40L/Min
Overall Dimension
1040*550*1650mm
Transport Package
in Plywood Case
Specification
ISO 9001, CE
Production Capacity
0-75L/Min
Product Description

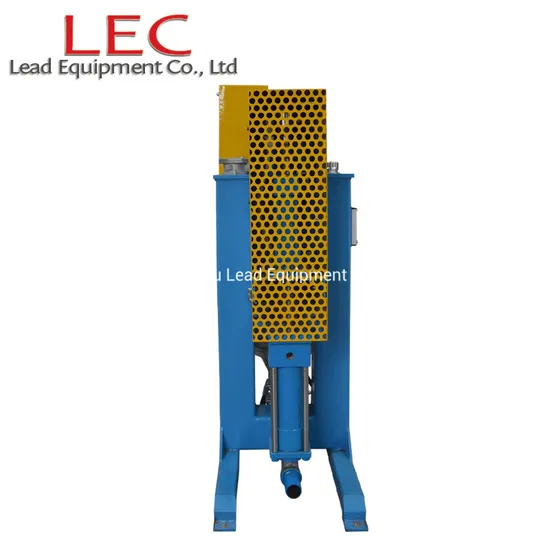

LGH75/100 PI-E ISO piston filling cement injection grouting pump
Product Description
The LGH75/100 PI-E high pressure vertical grouting pump is designed and made for permeation grouting, compaction grouting, backfilling grouting, curtain grouting, high pressure split grouting etc, grouting methods.
Grouting material: cement mixture, mortar/plaster, bentonite and other additive.
Specification of cement grout injection pump
Item | LGH75/100 PI-E grout pump |
Piston diameter | 100mm |
Piston stroke | 150mm |
Adjustable pressure ( low pressure) | 0-50Bar/725psi |
Adjustable flow rate( low pressure) | 0-75L/min |
Adjustable pressure ( high pressure) | 0-100Bar/1450psi |
Adjustable flow rate ( high pressure) | 0-40L/min |
Discharge pipe size: | M27x2 |
Inlet pipe size: | G2'' |
Power Unit | 7.5kW |
Chassis | Skid |
Weight | 390Kg |
Overall Dimension | 1040x550x1650mm |
Note: Chassis: Skid or Tyre We also could according to your demands customize |
Applications of cement grout injection pump
Civil Engineering -dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts
Structural - building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting
Construction - pavement under sealing, slab jacking, and slab raising
Marine - underwater foundations, piers, breakers, shoreline foundations
Mining - tunnel lining, contact grouting, shaft waterproofing
Utilities - encasements, waterproofing, slope line grouting
Geotechnical - deep well casing, monitor wells, well sealing, and abandonment
Features of cement grout injection pump
Compact structure, lightweight, easy to operate, low maintenance cost;
With digital display counter: it can display at any time, and can accumulate work times;
Flow and pressure can be adjusted step-less;
Equipped with emergency unloading valve: in case of an emergency, it can be load-off instantly;
In low pressure, it will be flow-converging of two pumps; In high pressure, there is only one pump work. Low pressure and large flow, high pressure and low output;
With full-hydraulic shaft device, stable and reliable operation;
Cooling type: water-cooling and air cooling; Suitable for hot and cold areas.
After-Sales Service
During-sale service for cement grout injection pump
1. Acceptance of the product
2. Assist client product construction scheme
After-sale service
1. Spare parts will be delivered as you need them.
2. Engineers will go to clients' sites for guiding the installation and test-running;
3. Warranty period: 12 months from the installation and commissioning;
Other grouting pumps
For more information about cement grout injection pumps, please feel free to contact us.
