The Dosing System/Plastic Mixer/Pneumatic Conveying System/Vacuum Conveyor/PVC Powder Weighing Mixing Compounding System/Mixing Equipment/Mixing Machinery

Product Description

Typical material handling plant for PVC extrusion
Raw material preparation is a necessary and very important step in a PVC extrusion process.
what is the targets we want to achieve:
A: Improve the finish product quality
(and as a consequence the profit margins of the product) Definition of quality: A product is constantly produced without any variation of the specific characteristics the product need to have for fulfilling the final task of the product's application.
B: Improve the prestige of PVC processors
With a state of the Raw Material Handling System the ENVIROMENTAL CONDITIONS inside and outside the production plant(Dust, Noise, Steam, Smells, Vibrations) are improved easily and therefore the prestige of this industry as well as.
C: Minimize labor cost since the introduce of automation processing
A modern material handling plant for PVC processing should include below sections and units:

1. Bag empty of raw material
2. Send raw material into the storage silos
3. PVC and additives dosing and weighing
4. PVC and additives mixing
5. Dry Blends material storage
6. Extruders' feeding
7. Central de-dusting
8. Central electrical control

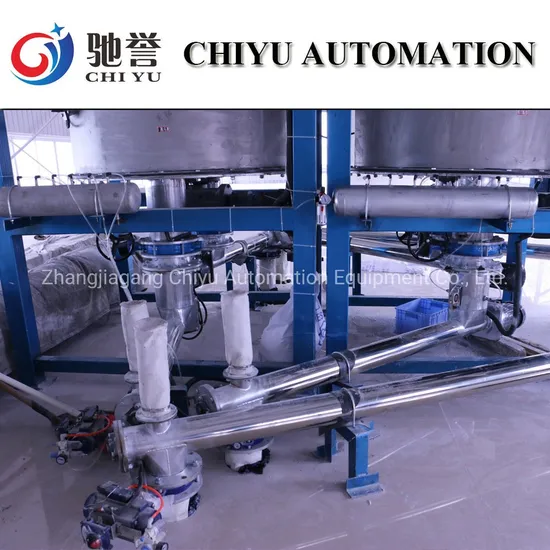

Below is one of our automatic PVC batching dosing mixing and extruder's feeding plant we do for PVC pipe extrusion factory:
1. Raw material unloading silo & storage silo, this customer has three kinds of main raw material, PVC, Light Caco3, Heavy Caco3.
2. 3m3 trasition silo before weighing.
We use screw feeder to convey the raw material from trasition silo to weighing silo, by this way, the weighing accuracy can be highly improved.
3. Weighing silo
4. Hot&cool mixer combination:
5. PVC pipe extrusion lines
6. Final high quality PVC pipes in different sizes.
About our company:
Zhangjiagang Chiyu Automation Equipment Co.,ltd. is specialized in manufacturing kinds of plastic mixing, automatic dosing mixing feeding system. Chiyu Automation Equipment is located in Zhangjiagang City, Jiangsu Province, 150km away from Shanghai.
Our main products as below:
1.High Speed Mixer
2.Vacuum Hopper Loader to Mixer
3.Automatic Dosing ,Mixing,Conveying System for PVC WPC LVT Floor Extruder Line
4.Automatic Compunding System for Pipe,Profile Extruder line
5.ZD Series Screw Conveyor
6.Additives Automatic Weighing Machine
7.Internal Mixer Automatic Batching System
We have more than 10 years experince in this field. With rich experince,Chiyu Automation Equipment will be your reliable supplier for plastic machines. We warmly welcome friends from all over the world to visit our factory.
Please feel free to contact us if you have any questions.
