Jbt50 Construction Machinery Concrete Mixer Diesel Portable Concrete Pump

Product Description

JBT50 Construction Machinery Concrete Mixer diesel portable concrete pump
Product Description
Concrete Pump with Concrete Mixer In One Machine is combined by thetraditional concrete pump and the mixer together, it is the most suitable for usein four to six floor buildings,especially in the group buildings, bridges, and the spread of small construction sits where need theconcrete mixer at the scene.
Concrete mixer with pump into one body, simple to operate, easy to move, flexible, and stable performance. The pump construction operation system used in all automated, all material mixing, high pressure pumping as one; Double cylinder hydraulic pumping system, hydraulic system greatly enhance the the stirring Concrete pump overall reliability ensure pump strive foolproof work under harsh conditions.

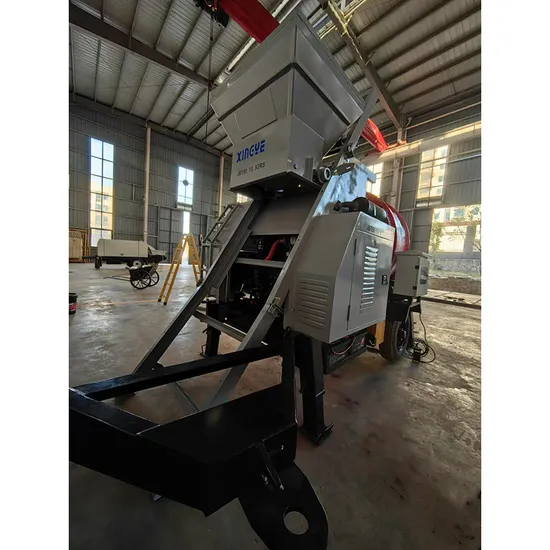

Detailed Photos
Concrete pump with Mixer Features:
The perfect combination of mixing and pumping, it's a one new equipment gathering function of lifting gravel material, mixing, and pumping, the whole process completed by an operator, significant saves in labor costs, at least saves 3-4 name labors for the construction, and efficiency can be increased 4-6 times;
Conveniently and flexibly moving, very suitable for removing between the multi-site work.
High output pressure, can meet high-rise buildings and the constructions of long-distance transport requirements.
Apply for advanced S valve to change direction, better meet to transfer the fine aggregate concrete.
Have Suction pumping function to minimize pipe blockage.
Electrical part adopts PLC control, with the best handling characteristics.
Glasses plate and cutting ring with high hardness wear-resistant alloy material and longer life.
With automatic centralized lubrication system, greatly extending the life of rotating parts.
Hydraulic cooling using advanced air-cooling system, no need water, easy to use.
Friction between the rollers by a gear wheel, reliable non-skid.
Electric cabinet equipped with a wireless remote control handle, easy to operate.

Product Parameters

Product model	JBT30.6.52RS	JBT40.8.62RS	JBT50.10.92RS
Maximum theoretical concrete delivery volume	30m³/h	40m³/h	50m³/h
Maximum theoretical delivery height/distance	80/300m	100/400m	120/500m
Distributor valve form	S valve	S valve	S valve
Mixer	JZM450F	JZM450F
Total power	62KW	62KW	92KW
Maximum aggregate	30mm	40mm	40mm
Outlet pressure	6MPa	8MPa	10MPa
Delivery cylinder	Ф200*500	Φ200×800	Φ200×800
Main oil cylinder	Ф100*65*500mm
Overall dimensions	4100*2150*2700mm	4100*2150*2700mm	4100*2150*2700mm
System pressure	28Mpa	28Mpa	28Mpa
Total mass	3800KG	4000KG	4200KG

Company Profile
Ningdu Xingye Machinery Manufacturing Co., Ltd.
Being the only and largest concrete mixing plant manufacturer in Jiangxi with 25 years of professional production experience is an impressive accomplishment. It demonstrates our company's expertise and reputation in the industry.As the only manufacturer in your region, you may have a competitive advantage in terms of local market share and pricing power. Additionally, having 15 years of experience in concrete batching plant manufacturing indicates that your company has a proven track record of delivering high-quality products and services to customers.The new factory was completed and put into operation in May 2023. It enables our company to increase production capacity and potentially expand our product offerings. With a larger facility, you may also be able to streamline production processes and improve efficiency, which can lead to cost savings and increased competitiveness.Having a new plant with a total area of 20,000 square meters is a significant investment, and it shows that your company is committed to growth and meeting the needs of your customers. With this expanded production capacity, you may be able to take on larger projects or increase your output to meet growing demand.
We have a professional design team that can design various concrete mixing equipment for different customers. At the same time, we also have a strict quality inspection team. Excellent after-sales installation team makes our products exported to all over the world.
Packaging & Shipping

Certifications


Our Advantages
Ningdu Xingye Machinery Manufacturing Co., Ltd. was established in July 2013 and is located in Xinzhongsheng Industrial Park, Ningdu County, Ganzhou City, Jiangxi Province. It is a national-level specialized new technology enterprise integrating machinery manufacturing, R&D design, trade logistics and overseas sales. It is mainly a supplier of machinery and equipment in the fields of construction, mineral mining, municipal engineering, bridges and tunnels. The company has successively held more than 20 national invention patents and independent intellectual property rights, and has a leading industry position and innovation capabilities.
We adhere to the business philosophy of "taking technological innovation as the core, product quality as the cornerstone, and customer satisfaction as the purpose", constantly explore, strengthen research and development, actively expand service areas and customer needs, and create unlimited possibilities for the company's development. The products have won wide recognition in the market for their excellent performance and reliability.
For more than 10 years since its establishment, the company has been working hard in the field of machinery manufacturing and sales. The products have been exported to more than ten countries and regions around the world, and have established long-term and stable cooperative relations with well-known companies in the United States, Singapore, Malaysia, Indonesia and other countries, and established a good brand image and market reputation.
While the company continues to grow, it actively fulfills its social responsibilities and is committed to energy conservation, emission reduction and sustainable development. The company strictly abides by national and local environmental protection laws and regulations, and continues to contribute to environmental protection and sustainable development. At the same time, we are also actively involved in various public welfare undertakings, and contribute to public welfare undertakings in the fields of society, community, environmental protection, and humanities.
The company currently has more than 100 employees. We insist on being people-oriented and attach importance to the growth and development of employees. The company has successively equipped employee dormitories, canteens, living and leisure areas, sports and fitness areas and other living facilities to provide employees with a good working environment; and customized a complete training and promotion mechanism for the entire process of the 2+3 model to enhance employees' sense of belonging, sense of accomplishment and happiness.
Looking to the future, we will continue to deepen our efforts in the fields of machinery manufacturing, R&D design, trade logistics, overseas sales, etc., increase R&D investment, and promote technological innovation and product upgrades. We will actively expand domestic and foreign markets, explore customer needs through precise market positioning and marketing strategies, and establish and enhance brand awareness at home and abroad. In the future competition, we will continue to lead the industry with outstanding technical strength and product quality.

FAQ

1. Are you a manufacturer, trading company, or a third party?
We are a manufacturer with 15 years of manufacturing experience
2. Can the machine be customized to our needs, such as put on our logo?
Our faith is to Get The Right Equipment for the Job, Surely our machine can be customized as your need, Put on your logo is also available. 3. What is the delivery time of your machine?
In general, the delivery time of our machine is about 30 days, customized machine will be delivered as the negotiation with our clients as soon as possible.
3. If I will need to stay at your place for a few days, is that possible to book the hotel for me?
It's always my pleasure, hotel booking service is available.
4. As the shipping period will take a long time, how can you make sure the machine won't be broken?
Our machine is film wrapped, to make sure the device can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.

5. What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, as our product is machinery equipment, it's difficult to send you samples, however,we can send you catalog, warmly welcome you to come to visit our company.

6. How can I get to your factory?
We can pick you up at the airport.
7. May I know which payment will be accepted by your company?
So far 100%T/T before shipment, 30% deposit paid by T/T, and balance paid by L/C are available.
8. About the after-sale service, how can you solve the problems occurred with your overseas customer in time?
The warranty of our machine is typically 12 months, during this period, we will arrange the international express immediately, to make sure the replacement parts are delivered as soon as possible.
9. After we place an order, will you arrange the installation of the machine at present?
All the machines will be tested well before being delivered, so almost of them can be used directly, also our machines are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the costs will be be
charged by you.
