US$1,500.00-3,000.00
|
1 Set
(MOQ)
|
Basic Info.
Certificate of Original
Issued by Chamber of Commerce
Payment Term
50% T/T as Deposit, The Balance Will Be Paid After
Installation and Adjustment
Yes
Crushing Degree
Fine Grinding Machine
Cutter Material
Hard Alloy
Finished Surface
Gear Process
Compressive Strength (For Crushing)
250-300MPA
Tongs′ Features
Dedicated Tongs
After-sales Service
on line
Transport Package
Wooden Box
Production Capacity
700PCS/Year
Product Description

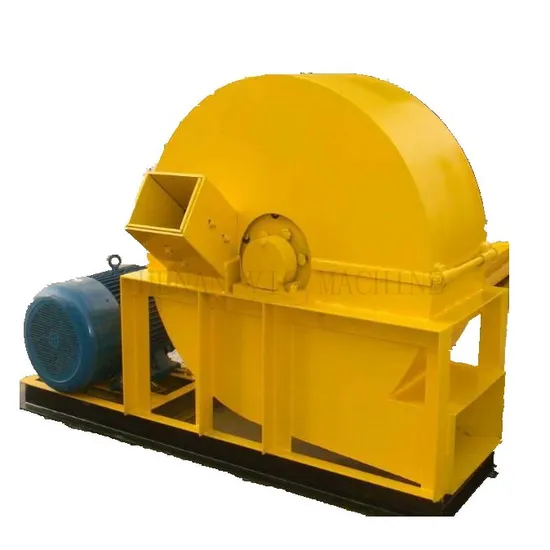

2TPH Efficient sawdust wood crusher wood grinding machine
Introduction:
1. The wood grinding machine can crush the big diameter tree branch such as pine, poplar wood, filed mushroom into pieces like sawdust one time.
The wood crusher machine wood grinding machine is simple structure, compact, space-saving footprint, good shaving quality, also is good for bamboo, grass, corn stalk, sorghum stalk and other fibrous materials.
2. Adopt vee belt transmitt, disk cutting and hammer crushing to sawdust, the granularity size can be adjusted by changing the sieve.
3. The wood crusher machine wood grinding machine is not only be driven by motor, but also can be diesel engine according to the need of clien.
Main data about the wood crusher wood grinding machine:
Model | 9FH-500 | 9FH-600 | 9FH-700 | 9FH-800 | 9FH-900 | 9FH-1000 |
Capacity(kg/h) | 300 | 600 | 800 | 1500 | 3000 | 4000 |
Cutter dia(mm) | 500 | 600 | 700 | 800 | 900 | 1000 |
Cutter pcs | 4 | 4 | 6 | 6 | 6 | 6 |
Cutter length(mm) | 100 | 150 | 200 | 250 | 300 | 350 |
Feeding dia(mm) | 180x200 | 200x200 | 200x250 | 250x300 | 300x400 | 400x500 |
Main shaft speed(min/h) | 2600 | 2500 | 2600 | 2300 | 2000 | 2000 |
Power(kw) | 11 | 15 | 22 | 37 | 45 | 55 |
Size(m) | 1.2x0.85x0.9 | 1.5x1.0x1.1 | 1.6x1.0x1.2 | 2.1x1.1x1.3 | 2.3x1.1x1.4 | 2.6x1.1x1.5 |
More pictures and detais about the wood crusher wood grinding machine:
Wood crusher wood grinding machine and final product:
Parts
Our factory
