China Automatic HDPE PE PP LDPE Plastic Bottle Toy Making Maker Blower Blowing Molding Machinery

China Automatic HDPE PE PP LDPE Plastic Bottle Toy Making Maker Blower Blowing Molding Machinery

US$30,000.00-34,000.00 1 SET (MOQ)

Basic Info.

Model NO.
FD30
Making Method of Parison
Injection Blowing
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Making Bottles Range
2ml-2000ml
Suitable Material
HDPE/LDPE/PP/PS/EVA
Max.Height of Bottle
240mm
Max.Dia of Bottle
100mm
Transport Package
Sea Worthy Standard Packages
Specification
3200*1150*2200
Trademark
FD
Origin
Jiangsu China
HS Code
8477401000
Production Capacity
20sets/Month

Product Description

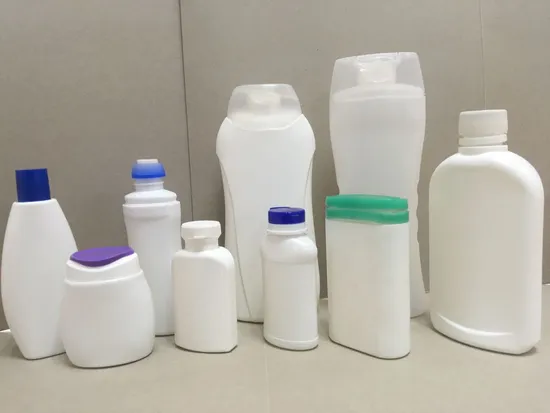

injection blow molding machine for cosmetic bottles
»Main Features
1.The clamping framework adopts single-crossbeam,double pillars,which enlarges the space of setting mould,will be easier to install mould.
2.Injection clamping adopts the structure of three oil vats and small supply-oil case,hence the speed of open/clamping will be quicker and the bearing pressure of mould will be more equally.
3.using tie-bar protection makes open/clamping mould work while transfer table rise/fall,so the production efficiency improve obviously,and protect core rods damages once mold hasn't at right station.
4.double servo motor system control for 30% consumption saving (Optional).
5.Special thickness working platform with QT material assure machine run stably,clamping well,anti-distortion.
»Operating Principle
Station A:Preform injection
The bottle neck will be molded accurately after injecting the material into the cavity,After proper control,the mold open and mandrils to...along with the cavity.
Station B:Blow molding
Blowing action was done at this part,molding would be complete after cooling.(bottle shape decides by the mold cavity).The air came out from the mandrils huffs the cavity,make the cavity cling to the mold.Then mold open and the mandrils turn to...along with bottles.
Station C:Stripper
The bottle automatically will be ejected from the mandrils at this position and then to be packed.The three actions of injection/blowing/ejection working at the same time,which makes the machine of high efficiency and low waste with bottles.

»Main Technical Parameters
No. Item Unit FD30 FD50 FD70
1 Dia. of screw mm 40 45 50
2 Screw L/D ratio 22 22 22
3 Max. theoretical injection capacity cm³ 165 254 324
4 clamping force of injection mould kn 300 450 600
5 clamping force of blowing mould kn 55 70 80
6 pressure of hydraulic system Mpa 14 16 16
7 Max. pressure of compressing air Mpa 1 1 1
8 Wastage of cooling water m³/min ≥0.3 ≥0.5 ≥0.8
9 Range of formability product ml 1.5-2000 1.5-2000 1.5-2000
10 Height of formability product mm ≤200 ≤200 ≤200
11 Dia of formability product mm ≤100 ≤100 ≤100
12 Total power kw 24.7 36 48
13 Overal size(L×W×H) mm 3200×1150×2200 3750×1300×2300 4000×1450×2350
14 Machine weight ton 4 6 6



»Machine Main Parts Brand
Key parts Brand
Servo motor / VDP(Optional) Techmation/Yuken
Hydraulic motor Intermote
Hydraulic valve Yuken
Pneumatic valve Festo
Electrical valve Schendier or Omron
Liner scale JEFFRAM
Controller Jinghua/Omron(optional)
Contactor Schendier
Seals DZ
Approach switch Omron

»Packaging & Shipping
