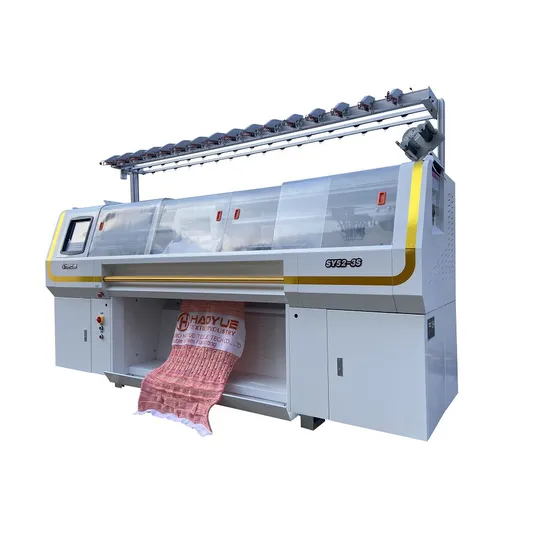

Fully Computerised Sweater Collar Flat Knitting Machine

Product Description

Introducing the revolutionary Automatic Computerized Flat Sweater Knitting Machine, your ultimate partner for crafting high-quality sweaters effortlessly. Engineered for unparalleled efficiency and precision, this advanced textile machine is perfect for both professional and hobbyist knitters who demand the best.Harness the power of computerized technology to effortlessly customize your designs and patterns, ensuring a flawless finished product every single time.From cotton to wool and acrylic fiber, this versatile machine can handle a wide range of materials with ease.
Bid farewell to the tediousness of manual knitting and embrace seamless production with the Automatic Computerized Flat Sweater Knitting Machine from China Haoyue.Elevate your knitting skills and productivity today!
Product Description
NINGBO HAOYUE Double System Sweater Knitting Machine features a high roller, high-performance sinker, dynamic stitch, motor control reserving carriage, and digital technology. It offers high-speed and efficient production, capable of creating pointelle, tuck, jacquard, intarsia, full needle jacquard, apparent shape, hidden shape, and other intricate patterns. Suitable for a variety of yarns including wool, cashmere, cotton, chemical fiber, silk, and blended yarns, it's perfect for making sweaters, blankets, scarves, gloves, hats, and knit apparel accessories.
Available in different outlooks (HP model) Available in different outlooks (New model)
Detailed Photos

HENGQIANG CONTROL SYSTEM	MAIHONG CONTROL SYSTEM	RAYNENG CONTROL SYSTEM
The machine system can be customized according to your requirements.	The machine system can be customized according to your requirements.	The machine system can be customized according to your requirements.

CARRIAGE	NEEDLE BED	DYNAMIC STITCH
Linear velocity of the head can reach 1.6m/s.Each system is equipped with five functions as rib transfer, weaving, hangging head, non-weave and pin. In addition, it is secured by short-circuited electromagnetism, motor overcurrent. Locked-Rotor, etc...	Split design, insert part fits with the needle are made of imported steel through fine blanking and grinding, which reduces the wear and tear of the stitches, decreases the resistance of the stitches, and effectively improves the knitting efficiency	It supports multi-segment stitch control of patterns in one line, realizes the weaving of multiple fabrics with different densities in the same line, and further improves weaving efficiency and diversity of the weaving forms.

DISPLAY SCREEN WITH KEYBOARD	SERVO MOTOR	16 YARN FEEDER
It adopts industry LCD display with graphic touch control, multi-color, all time monitoring function. The data of the knitting amount, time, speed, roller, stitch, yarn feeder, etc...	Using cani control, can achieve the rapid return and direction changing of the machine carriage, accurate positioning, smooth conmutation .	The 16 yarns can be used by any weaving system and can be switched at any position. According to different knitting speed the control program can automatically adjust the position.

AUTOMATIC RESET PROBE	POSITIVE YARN FEEDER	AUTOMATIC REFUELING
Automatic reset function, which ensures any deviation of the probe can be reset automatically regardless of the area.	Positive yarn providing, successfully reduce yarn resistance, increase knitting efficiency.	In order to make the machine work better, we have developed 24-hours intelligent system for automatic refueling.

Product Parameters

Gauge	3G,3.5G,5G,5/7G,7G,8G,9G,10G,12G,14G,16G,18G
Knitting width	52,60,66,72,80,100inch
Knitting system	Double system Double carriage double system(optional) 2+2
Knitting speed	Controlled by servo-motor with 32 sections optional, max speed reach 1.6m/s.
Knitting function	Knit, miss, tuck, transfer, pointel, intarsia, jacquard, apparent or hide shaping and other regular or irregular patterns.
Racking	Controlled by servo-motor racking within 2 inches and with fine adjusting function.
Stitch density	Controlled by stepping motor, 32 section stitch select-able adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled.
Dynamic stitch	Using high speed stepping motor, multi-stitch function can be achieved in one line.
Needle selection	Advanced encoder reading pin.8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width jacquard needle selector.which can be installed or removed simply from the carriage and maintained easily.
Transfer system	Combined design, single or double cam system all can transfer together or separately. Also one cam do transfer , another cam system for knitting, which will achieve high production.
Sinker system	Controlled by stepping motor, adjustable to different knitwear, up to be various results of shaping and patterns.
Quickly turning	Intelligent switching braiding system improves machine weaving efficiency.
Take-down system	Infrared alarm,Computer programs instruction, stepper motor control,32-stagetension selection with an adjustable range between0-100.
Color-changing system	2×8 yarn feeders on each side of 4 guide rails, shift able on any needle position.
Yarn feeder device	Accurately control the tension of the yarn and ensure the consistency of the whole woven piece quality. 3G-10G Adopts roller feeding device 12G-18G Adopts the yarn storage device
Protection system	The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle breakage, error programming occur, also set up the safety auto-lock protect device.
Control system	1. LCD industrial display, Can display various parameters, which can be adjustable during operation. 2. USB memory interface,System memory 2G. 3. Free design system is visual and easy to understand and software upgrade free of charge. 4. Support multi-language operation as Chinese and English, Spanish, Russian etc.
Refueling device	Automatic refueling: Control the refueling time and frequency by setting the time. The oil pump lubricate the jack and long jack needle on the needle bed automatically to reduce the wear of the machine and increase its service life.
Network function	Has network interface,enable remote-monitoring via network,and connecting with ERP system.
Power supply	Single-phase 220V/three-phase 380V,adopt advanced CMOS technology, having memorizing function at power shock stop.
Non waste yarn Comb device	Non waste yarn Comb device(Optional)
Volume and weight	3000*1000*1800mm,1150kgs(52inch)

Packaging & Shipping
Knitting Samples
Company Introduction
NINGBO HAOYUE is a professional high-tech manufacturer specializing in the production and sales of computerized flat knitting machines and professional collar knitting machines. From sweaters, shoe uppers, polo collars, ribs, scarves, hats to blankets, and beyond, our 25 years of industry experience and technological advancement have earned us the trust of numerous domestic and international suppliers. We boast significant technical advantages, state-of-the-art facilities, and a flawless quality management system. Our commitment is to offer superior quality, exceptional service, and competitive prices. Guided by the principles of prioritizing people and achieving success through quality, we strive for mutual benefit and double-win outcomes.
