Ready-Mixed Concrete Batching Mix Plant Machine Construction Equipment Cement Mix Plant Hzs75

Product Description

Product Description
HZS series Concrete Batching Plant is composed of batching, measuring system, mixing system, electrical control system, image monitoring system, communication system and steal frame. It applies to large scale construction projects of road, bridge, dam, airport, sea port and other places having large demand of concrete, like commercial ready-mixed concrete of city.
Concrete Mixing Plants feature:Ready-Mixed Concrete Batching Mix Plant Machine Construction Equipment Cement Mix Plant Hzs75
1. Good quality material, rational design
2. High quality and reliable mixer 3. Precise measurement system
4. Perfect control: Simple operation, perfect control system
5. Wear-resisting design 6. Superior environmental performance
Product Parameters
HZS75 Concrete Batching Plant Parameter:Ready-Mixed Concrete Batching Mix Plant Machine Construction Equipment

1

Theory productivity : 75m3/h

2

Discharge height : 3.8m

3

Total power : About 105kw (no including screw conveyor)

4

Machine weight : About 33t (no including powder silo and screw conveyor)

5

Area : 30m×15m

6

Mixing system

Mixer

Power

Feeding capacity

Discharging capacity

JS1500

30kw*2

2250L

1500L

7

Aggregate weighing system

Aggregate bin capacity

Weighing hopper capacity

Motor power

Belt width

Measurement accuracy

7m3×4

2250L*1

5.5kw

650mm

±2%

8

Hoisting system

Hoisting hopper capacity

Hoisting motor power

2250L

22kw

9

Cement weighing system

Weighing hopper volume

Weighing scope

Measurement accuracy

900L

0-500 kg

±1%

10

Water weighing system

Pump motor power

Weighing hopper volume

Measurement accuracy

4kw

500L

±1%

11

Liquid additive weighing system

Additive tank volume

Weighing hopper volume

pump motor power

Measurement accuracy

2m3

40L

0.75kw

±1%

12

Air circuit system

Air compressor power :11kw

13

Screw conveyor

Screw conveyor

Transportation capacity

power

Ф219

45t/h

11kw

14	Powder Silo	60t/80t/100t/150t/200t
15	Control room	6m2

HZS series Concrete Mixing plant Model:Ready-Mixed Concrete Batching Mix Plant Machine Construction Equipment

Model	Lifting Type	Capacity	Mixer capacity	Weighing Precision		Power KW
HZS25	Bucket	25m3/h	500	Aggregate 2%	Power/Water/Additive	37
HZS35	Bucket	35m3/h	750			50
HZS50	Bucket	50m3/h	1000			74
HZS75	Bucket	75m3/h	1250			105
HZS60	Belt conveyor	60m3/h	1000			75
HZS90	Belt conveyor	90m3/h	1500			6110
HZS120	Belt conveyor	120m3/h	2000			140
HZS150	Belt conveyor	150m3/h	2500			175
HZS180	Belt conveyor	180m3/h	3000			205
HZS240	Belt conveyor	240m3/h	4000			280
HZS270	Belt conveyor	270m3/h	4500			300
HZS300	Belt conveyor	300m3/h	5000			330

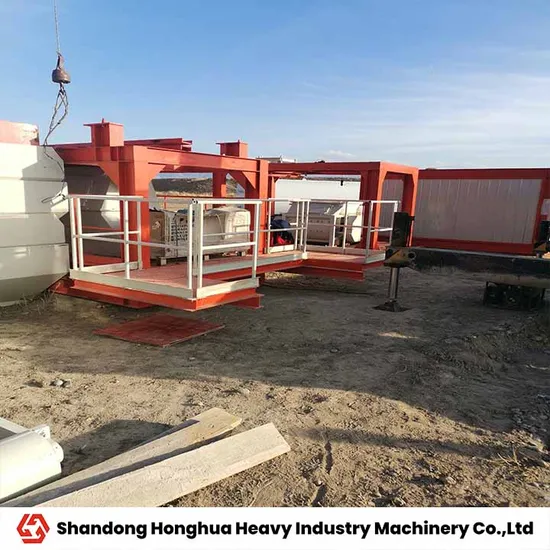

Detailed Photos
Company Profile
Shandong Honghua Heavy Industry Machinery Co., Ltd. is located in Dawenkou Industrial Park, Tai′an City, Shandong Province, China, covering an area of more than 50 acres, with two standard heavy-duty workshops of more than 20, 000 square meters and more than 100 factory employees. The factory has convenient transportation and is extremely convenient for domestic and international communication and transportation.Honghua Heavy Industry is a professional company dedicated to the development, production, sales and service of construction engineering machinery and equipment. The main products are three series of products: Asphalt concrete mixing equipment, cement concrete mixing equipment and stabilized soil mixing equipment, and have a complete production capacity of supporting products. The company′s business scope covers the design, production, sales, service and accessories supply of various mixing equipment. The company has advanced development and production equipment and a group of professional and technical personnel who have been engaged in the production and research and development of such equipment for many years, and has strong strength in product design, research and development and production and processing.In recent years, Honghua Heavy Industry has been committed to establishing complete export sales channels, and the equipment it produces has gradually gone global. There are sales and service teams in Russia, Central Asia and Southeast Asia. And has gradually built a complete overseas accessories warehouse. We provide perfect solutions for various types of mixing equipment for our domestic and foreign customers relying on a complete technology and service team.
FAQ
Ready-Mixed Concrete Batching Mix Plant Machine Construction Equipment
Are you a manufacturer or Trader?
We are a professional manufacturer , we have our own R&D team and sales team, we provide one-stop service.
Do you provide OEM/ODM Service?
Yes, offer me necessary information, we provide custom-make service to meet different needs of global clients with
different budgets.
How can we ensure quality?
The final inspection is always carried out before shipment.
How to install the equipment after purchasing?
We will provide a professional installation video to illustrate.Also provide a manual.
Do you offer a guarantee?
Yes, we guarantee our product for one year. Provide after-sales service support with and agricultural technical support.
Welcome to send me message and customize your concrete batching plant for your construction project!!!
