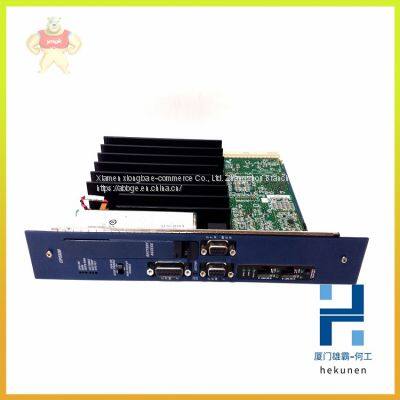

IC698CPE030 IC698CPE040-JP GE CPU Ethernet CPU control memory xchange module
IC698CPE030 IC698CPE040-JP GE CPU Ethernet CPU control memory xchange module
Our Email: 2235954483@qq.com
contact number:13313705507
contacts：HE
The RX7i CPUs are programmed and configured by the programming software to perform real time
control of machines, processes, and material handling systems. The CPU communicates with I/O and
smart option modules over a rack-mounted backplane using the VME64 Standard format. It
communicates with the programmer and HMI devices via the embedded Ethernet ports or a serial port
using SNP Slave protocol.
CPE030: 600MHz Pentium-M microprocessor with 64 MB of user memory and 64 MB of user flash
CPE040: 1800MHz Pentium-M microprocessor with 64 MB of user memory and 64 MB of user flash
Features
▪ Contains 64 Mbytes each of battery-backed user memory and non-volatile flash user memory for
user data (program, configuration, register data, and symbolic variable) storage.
▪ Access to bulk memory via reference table %W.
▪ Configurable data and program memory.
▪ Programming in Ladder Diagram, C, Structured Text, and Function Block Diagram.
▪ Auto-located Symbolic Variables that can use any amount of user memory.
▪ Support for Series 90-70 discrete and analog I/O, communications, and other modules. For a list
of modules supported, refer to the PACSystems RX7i Installation Manual, GFK-2223.
▪ Support for all VME modules supported by Series 90-70.
▪ Rx7i data monitoring over the web. Allows a combined total of up to 16 web server and FTP
connections.
▪ Up to 512 program blocks. Maximum size for a block is 128KB.
▪ Test Edit mode that allows you to easily test modifications to a running program.
▪ Bit-in-word referencing
▪ Battery-backed calendar clock.
▪ CPU and module firmware upgrades via Winloader through CPU’s RS-232 or RS-485 serial port.
▪ Three isolated serial ports: an RS-485 serial port, an RS-232 serial port, and an RS-232 Ethernet
station manager serial port.
