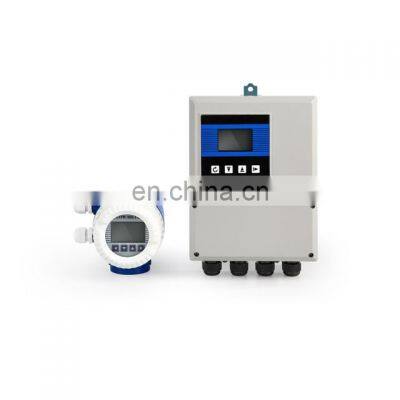

FT8210H Magnetic Flow Meter Sensor Indicator

Product Description

Product Description
Product DescriptionIntegrated Electromagnetic flow converter 4-20maAccording to the size of the sensor, we offer four kinds of transmitter housing, As shown in the figure below, please note: the PCB board, software and menus and functions are be the same, only the size of housing and shape of the housing is different.Requirement For Sensor And Excitation (AC and DC power supply type)Excitation current can be set to 125mA、160mA、250mA 250mA excitation current is suitable to the resistance of two coil: 35~ 65Ω125mA excitation current is suitable to the resistance of two coil: 65 ~ 120ΩExcitation frequency:25HZ,12.5HZ,6.25HZ,3.125HZDetailed ImagesBefore buy electromagnetic flow converter you should know:Electronic flow transmitter is parts of electromagnetic flow meter.ItemElectromagnetic Flow Converter250mA Excitation current35~ 65 ohm125mA Excitation current65 ~ 120 ohmExcitation current125mA,160mA,250mAPower Supply85VAC~265VAC or 110VAC~420VAC or 24VDC or 3.6v lithium batteryPipe size1~3000mmVelocity Range0.01 - 15 m/sVelocity resolution0.5 mm/secFrequency25HZ/12.5HZ/6.25HZ/3.125HZCommuncationRS485 (standard),HART (option),MODBUS interfaceLCD DisplayEnglish displayQuick ResponseResponse time of 0.3 secondsAmbient temperature–20~+65℃Relative humidity5%~90%Velocity resolution0.5 mm / secOutput Signal (AC and DC power supply type)Current output: 4 to 20mA,load;resistance：0～750ΩBase deviation：0.1%±10µAFrequency range is 100～5000Hz；Photoelectric isolation, isolation voltage：> 1000VDC； Pulse equivalent output: user defined pulse width,automatic conversion to square wave at high requency ;Photoelectric isolation, isolation voltage：> 1000VDCCommuncationCommunication ：RS485 (standard)、HART (option) MODBUSInterface：RTU formatPhysical interface：RS-485Electrical isolation：1000VHART interface：Support standard HART protocolPacking & DeliveryRelated ProductsElectromagnetic flow meterOpen channel ultrasonic flow meterVortex flow meterTDS -100F1 Wall mount ultrasonic flow meterTDS-100H hand held ultrasonic flow meterTDS-100M Modular ultrasonic flowmeterAbout usDALIAN TAIJIA TECHNOLOGY CO.,LTDNO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China E-mail:ndt at TEL:86-411-39685079Whatsapp:+8615998577470web:https://tmeasurement.en.china.cn/?spm=a2700.7756200.0.0.769c71d2zcQ6PtTitle goes here.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding MachinePET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
