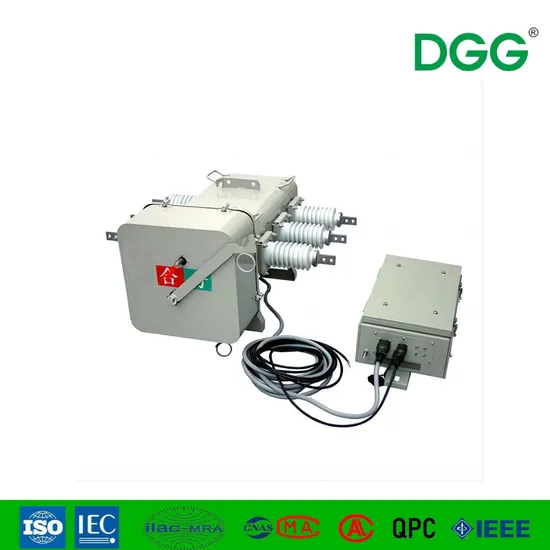

12kv High Voltage Outdoor Sf6 Electric Pole Mounted Auto Recloser Load Break Switch Vacuum Circuit Breaker
| US$1,500.00-1,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZW32-12
Arc-extinguishing Medium
Vacuum
Installation
Fixed
Type
Circuit Breaker
Function
Conventional Circuit Breaker, Overcurrent Protection
Certification
ISO9001-2000
Rated Frequency
50Hz
Rated Voltage
12kv
Rated Current
630/1250A
Rated Short-Circuit Breaking Current
20/25ka
Transport Package
Export Box
Trademark
DGG
Origin
China
HS Code
8504311000
Production Capacity
100000PCS/Year
Packaging & Delivery
Package Size
100.00cm * 50.00cm * 25.00cm
Package Gross Weight
120.000kg
Product Description
Our factoryWe are professional manufacturer of current transformer ,voltage transformer, Vacuum Circuit Breakers/Recloser,Isolation switches,Dropout Fuse Cut-out,Lightning Arresters,High and Low Voltage Cabinets,Metering Devices,Power Distribution Transformers etc.
General
ZW32-12 Series outdoor AC vacuum circuit breaker is 12kV distribution equipment of 3 phase,50Hz. It's used to connect and break load current,over-load current, and short-circuit current. It's applicable for substations, industry, mining, and urban and rural electric power networks, especially applicable on occasions with frequent operation and automatic power distribution networks.
Model and Meanings
| Technical specification | ||||
| No. | Item | Unit | Data | |
| 1 | Rated frequency | Hz | 50 | |
| 2 | Rated voltage | kV | 12 | |
| 3 | Rated current | A | 630/1250 | |
| 4 | Rated short-time power frequency withstand voltage | Interphase, to earth(wet) | kV/min | 42/1 |
| Interphase, to earth(dry) | 48/1 | |||
| Break(dry) | 34/1 | |||
| Secondary circuit to earth | 2/1 | |||
| 5 | Rated lightning impulse withstand voltage | Interphase, to earth | kV | 75 |
| Break | 85 | |||
| 6 | Rated short-circuit breaking current | kA | 20/25 | |
| 7 | Rated short-circuit making current(peak) | 50/63 | ||
| 8 | Rated short-time withstand current and duration | kA/s | (20/25)/4 | |
| 9 | Rated peak withstand current | kA | 50/63 | |
| 10 | Rated short-circuit breaking current breaking times | Times | 30 | |
| 11 | Rated operating voltage and rated voltage of the auxiliary circuit | V | AC/DC220,DC48,DC24 | |
| 12 | Main circuit resistance | Without isolation | μΩ | ≤80 |
| With isolation | ≤120 | |||
| 13 | Mechanical life | Times | 10000 | |
| Note: If the altitude is over 1000m, the rated insulation level should be modified as appropriate. | ||||
Outline and Dimensions
Test Reports
All products have undergone professional testing and certification.
Our Customer
Our customers are located all over the world.
Photos of Product
