1500 mm Stroke CNC Dual Axis Aluminum Profile Drilling Machine Lock Hole Milling Machine Door and Window Manufacturing Machine

1500 mm Stroke CNC Dual Axis Aluminum Profile Drilling Machine Lock Hole Milling Machine Door and Window Manufacturing Machine

US$5,400.00
1 sets
US$5,300.00
2+ sets

Basic Info.

Model NO.
none
Condition
New
Certification
None
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Applicable Material
PVC, UPVC, Aluminum
Dimension(L*W*H)
2100X1400X1700mm
Work Air Pressure
0.5-0.8MPa
Power
1500
Weight
1000 Kg
Video Outgoing-Inspection
Provided
Marketing Type
New Product 2024
Key Selling Points
High-Accuracy
Machinery Test Report
Provided
Transport Package
Tandard Export Packing: Film + Carton + Strip
Specification
82.6 * 55 * 67 inch
Trademark
SHUNJIE
Origin
China Foshan
Production Capacity
50 Set/Sets Per Month

Packaging & Delivery

Package Size
210.00cm * 140.00cm * 170.00cm
Package Gross Weight
1000.000kg

Product Description

Product Overview

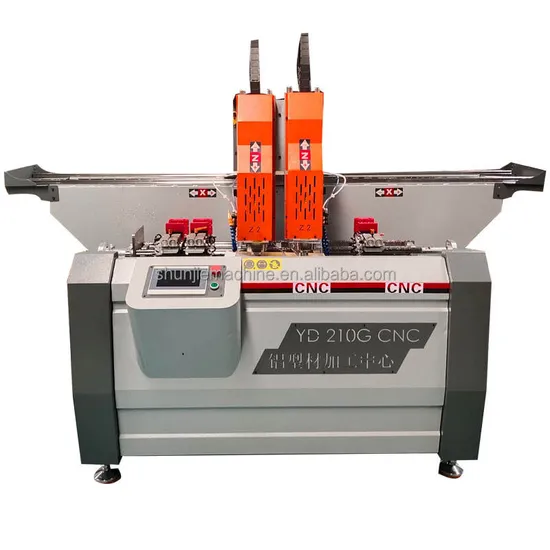

Aluminum profile milling machine
Aluminum profile milling machine is special designed for processing of water slot, pulley hole, hardware hole on
aluminum and PVC profile. It can mill various holes by changing different copy board.

1).It is used for processing several of holes,grooves and waterslots on aluminum and PVC windows&doors or curtain walls.
2). Vertical and horizontal direction can be adjusted .
3). Changeable template for different copy routing.
4).It has the features of compact structure ,nice design and small volume, the air pressure drives the clamping
5). Large useful scope,high efficiency and convenient operation achieve the continuous processing and safe operation.

PRODUCT SPECIFICATIONS
Item
CNC 3500 Aluminum profile milling machine
Power
3.7 kw X 2
Voltage
380v
Working pressure
0.6-0.8Mpa
X/Y/Z Axis range
1500x210x280mm
Machine size
2100x1400x1700 mm,About 1000kg

Product Parameters
Product Description
Detailed Photos
Our Advantages
Packaging & Shipping
FAQ
1. Q: What is the Loading?APlease check the above "PRODUCT SPECIFICATIONS".
2. Q: Do you inspect the product? How?
A: Yes, We have QC department to control each step of production till to finish. It's important that QC will inspect all before
loading. We also accept the third inspect department.
3. Q: How do I pay for my purchase order? What's the trade terms?
A:T/T, L/C at sight ,Western&Union,Trade Assurance. Trade terms: FOB/CIF/CRF
4. Q: What's the delivery time?
A: It will take 7-15 days to finish the order, but the exact time is according to actual situation.
5. Q: Can I have my own customized product?
A: Yes, your customized requirements for material, color, logo, design, package ,etc.
