Ucg 32100nc Professional High Percision Smart Servo External and Inner Grindwheel Processing Universal Cylinder Grinder Grinding Machine

Ucg 32100nc Professional High Percision Smart Servo External and Inner Grindwheel Processing Universal Cylinder Grinder Grinding Machine

US$25,000.00-30,000.00 1 set (MOQ)

Basic Info.

Model NO.
UCG 32100NC
Type
External Grinding Machine
Processing Object
Thread
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
ISO 9001
Condition
New
Worktable Rapid Feed Speed
1 - 6000
Cross Feed Rapid Speed
1 - 6000
Spindle Speed Range
26 - 500
Wheelhead Spindle Motor
4
Transport Package
Customizable
Specification
Customizable
Trademark
TRANSTAR
Origin
China

Product Description


Product Description

What extra equipment you can get from the servo grinding machine?
X Z axis servo motor and ball screw
HMI (colorful touch screen)
X Z axis MPG
PLC controller
Luxury semi-closed safe guard
Built-in processing menu
Spindle unit with high precision and maintenance-free

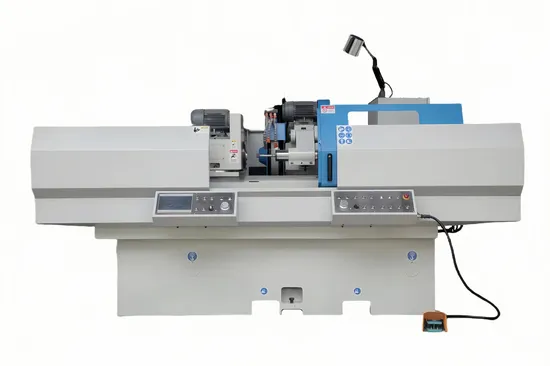

The machine adopts T structure: grind wheel head make cross movement along rear linear guide way of the body (X axis), and the work table make longitudinal movement along the front V-F guide way of the body (Z axis).
Detailed Photos
Product Parameters
Item Model UCG 2060NC UCG 2080NC UCG 32100NC UCG 32150NC
Working Capacity
Center Height mm 135 135 180 180
Grinding Diameter (External) mm 800~200 800~200 800~320 800~320
Grinding Length (External) mm 600 800 1000 1500
Grinding Hole Diameter (Inner) mm 25~100 25~100 25~100 25~100
Grinding Depth (Inner) mm 125 125 125 125
Maximum Workpiece Weight kg 100 100 100 100
Working Table ( Z Axis )
Worktable Travel mm 700 900 1200 1700
Worktable Rapid Feed Speed mm/min 1~6000 1~6000 1~6000 1~6000
Worktable Fine Feed Rate mm 0.005 0.005 0.005 0.005
Worktable Swivel Range deg -2~9 -2~9 -2~9 -2~7
Grinding Wheel Head ( X Axis )
Wheelhead Cross Travle mm 205 205 265 265
Cross Feed Rapid Speed mm/min 1~6000 1~6000 1~6000 1~6000
Cross Feed Rate mm 0.001 0.001 0.001 0.001
Wheelhead Swivel Range deg -10 -10 -10 -10
Wheelhead Spindle Speed r/min 2140 2140 2140 2140
Grinding Wheel Dimensions mm 400*50*203 400*50*203 400*50*203 400*50*203
Grinding Wheel Peripheral Speed m/s 45 45 45 45
Workhead
Spindle Speed Range r/min 26~500 26~500 26~500 26~500
Workhead Swivel Range deg 0~90 0~90 0~90 0~90
Center Taper MT #4 #4 #4 #4
Tailstock
Quill Manual Travel Range mm 30 30 30 30
Center Taper MT #4 #4 #4 #4
Quil Engine Drive Mode pneumatic pneumatic pneumatic pneumatic
Motor
Wheelhead Spindle Motor kw 4 4 4 4
Workhead Spindle Motor kw 0.75 0.75 1.5 1.5
X/Z Axis Drive Servo Motor kw 1.5 1.5 1.5 1.5
Coolant Pump kw 0.09 0.09 0.125 0.125
Total Power Capacity KVA 11 11 12 12
Machine
Floor Space cm 400*250*200 440*250*200 480*280*200 580*280*200
Package Dimensions cm 345*210*180 385*210*180 425*220*180 525*220*180
Machine Weight kg 3400 3700 4000 4500
Inner Grinding Device
Spindle Motor Power kw 1.1
Spindle Speed r/min 10000
Grindwheel Dimensions mm 30*25*10

Packaging & Shipping

Installation Instructions
The major pars such as machine body, work table, are all high grade casting piece. Optimization design(FEA) is the key to improve the machine precision and rigidity. All new designed machine structure make it with great excellent working performance.


The work table make longitudinal movement along front slide way of machine body, V-F slide way is adopt and coated with TF wearable material belt, be precision scraped by manual. The motion is drove by Ac servo motor and ball screw and can realize various kinds of feed mode: travel set, manual
feed, rapid feed and auto. Feed.
The work table consist of upper table and nether table, the upper table can make clockwise or anticlockwise rotation for grinding taper surface.
The work head and tail stock are located on the table, for clamping and rotating workpiece.
FAQ
If you are fed up with complexity hard work on traditional cylinder grinder?

If you are fed up with "oil leakage, coolant splashing around field" ?

If you are helplessness with these fault of complexity mechanical/hydraulic apparatus?

If the CNC machine is difficult for your operation? And you have not any experience on G code program?

YES, WE ARE ALSO FED UP WITH ALL THSE TROUBLES!

THIS IS WHY WE DESIGNED THE SMART SERVO GRINDING MACHIEN FOR YOU!
