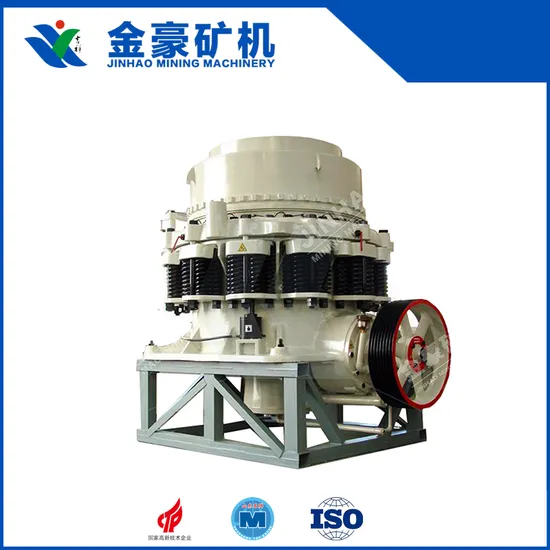

Mining Machinery Mineral Machine Spring Cone Crusher for Gold, Copper, Lead, Zinc, Iron Ore Pyb1200

Product Description

Product Description
Overview of Cone Crushers Cone crushers are advanced, large-scale crushing machines primarily used for medium and fine crushing of various hardness ores and rocks. They are favored for their high efficiency, high output, good product shape, and particle size distribution.
Working Principle:The working principle of a cone crusher involves the interaction between a conically shaped main shaft and an outer concave mantle to crush the material. Material enters the top of the crusher and, as the conical main shaft rotates, it is subjected to compression, bending, and impact within the crushing chamber, gradually being crushed to the desired size before being discharged through the bottom of the crusher.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Types:There are several types of cone crushers, including:
Spring Cone Crusher: Uses springs to adjust the crushing force and provide overload protection.Hydraulic Cone Crusher: Utilizes a hydraulic system for adjusting the crushing force and overload protection, making operation more convenient.Compound Cone Crusher: Features a more complex movement trajectory, suitable for finer crushing.Single Cylinder Cone Crusher: Compact structure, simple to operate and maintain. Advantages:High Crushing Efficiency: Advanced crushing chamber design and reasonable motion parameters ensure high efficiency.Good Product Shape: The crushed product has a good shape with low content of needle-like and flaky particles.Automatic Control System: Some models are equipped with an automatic control system, enhancing the convenience and safety of operation.Few Wear Parts and Long Life: Fewer consumable parts and made of wear-resistant materials, ensuring a long service life.Low Maintenance Cost: Reasonable structural design facilitates maintenance and replacement of wear parts.Precautions:Choose the appropriate type of cone crusher based on the properties of the material to be crushed.Regularly inspect the operating condition of the equipment to ensure it functions properly.Keep the equipment clean to prevent blockages and material buildup.Adjust the feed size and crusher operating parameters according to process requirements.
As an indispensable piece of equipment in modern crushing operations, the characteristics of high efficiency, stability, and economy make cone crushers the preferred choice for many engineering projects.
Product Parameters Technical Data Sheet of Spring Cone Crusher

Model	(mm) Diameter Of Crushing Cone	(mm) Inlet Dimensions	(mm) Max Feed Particle Size	(mm) Adjusting Range Of Dischargmg Outler	(kW) Motor Power	(t/h) Capacity	() (kg) Weight (Excepting Motor)
PYB-900	900	135	110	15~50	55	50~90	9600
PYB-1200	1200	170	145	20~50	110	110~168	24700
PYB-1750	1750	250	215	25~60	155	280~480	50300
PYB-2100	2100	350	300	30~60	280	500~800	71200
PYB-2200	2200	350	300	30~60	280	500~1000	80000
PYZ-900	900	70	60	8~20	55	20~65	9600
PYZ-1200	1200	115	100	8~25	110	42~135	25000
PYZ-1750	1750	215	180	10~30	155	115~320	50300
PYZ-2200	2200	275	230	10~30	280	200~580	84000
PYD-900	900	50	40	3~13	55	15~50	9700
PYD-1200	1200	60	50	3~15	110	18~105	25300
PYD-1750	1750	100	85	5~15	155	75~230	50500
PYD-2200	2200	130	100	5~15	280	125~350	85000

Features:
The spring cone crusher is suitable for crushing all kinds of ore and rock above medium hardness.With the features like reliable structure,high production efficiency,convenient adjustment and cost saving,the spring safety system of crusher acts as an overloading protection system that allows metal to pass through the crushing chamber so as not to damage the cone crusher.The spring corn crusher adopts oil and water seal form to isolate stone powder and lubricate oil to make the work reliable.
Remark:
There are three types of crushers:standard(intermediate crushing),medium(intermediate and fine crushing)and short head(fine crusher) types.The only difference between them lies in the internal structure.
Company ProfileYantai Jinhao Mining Machinery CO,. LTD. is an international mining machinery and EPC service provider, covering design and research, equipment manufacturing and procurement, construction and installation,mine management and operation, as well as industry resources integration. Jinhao has served more than 80 countries and regions around the world, and we offered solutions to more than 2000 mines. Moreover, we have set up branch companies in Zimbabwe and Tanzania. With our reliable products and comprehensive services, we are always at your service, and we are excited about the prospect of working together.
Jinhao Mining Machinery produces and processes ore dressing equipment,including feeding, crushing, screening, grinding,classification, agitation, flotation, cyanidation,and many other varieties. The company has outstanding professional and technical personnel, strong technical strength, complete processing equipment, perfect testing methods, international supporting service and many other comprehensive solutions.
Certifications
Exhibition&Customer Visit
FAQQ1: How to get the free solution and quotation?
A1: Please send inquiry to us, leave your whatsapp and email, our sales manager will contact you within 1 hours.
Q2: Are you manufacture or trading company?
A2: We are factory, established in 1997.
Q3: What is the quality of your products?
A3: Our products passed CE ISO BV certification, exported to lots countries all over the word, such as Middle East, Malaysia, Indonesia, Philippines, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q4: How long is your delivery time?
A4:7-10 days for the stock, 15-30 days for the mass production.
Q5: What is your payment method?
A5: 30% deposit in T/T advance, 70% balance before shipment.
Q6: How long is the warranty? Does your company supply the spare parts?
A6: Our warranty period is one year generally. Spare parts for old customer at lowest cost.
Q7: Can you help us to install the plant ?
A7: Yes, we can help you set up a complete production line and give you related professional advice and good after sale service. We had already build many mining projects in China & Overseas.
