Pure Water Manufacturing Equipment System RO Pretreatment UF Ultrafiltration Device

Product Description

Product Description

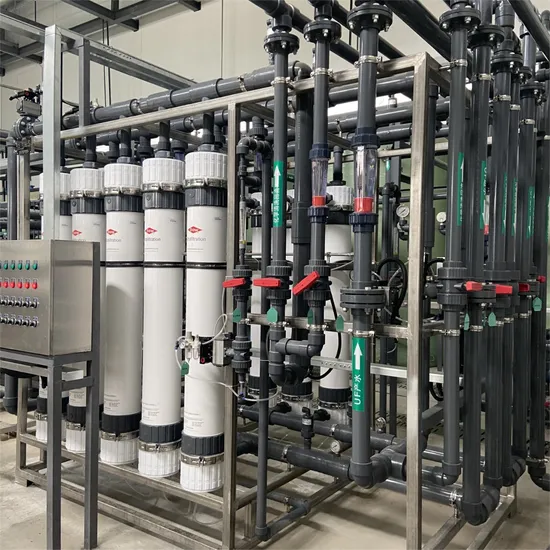

UF ultrafiltration device
Ultrafiltration is one of the membrane separation water treatment methods
According to the size of the filtered particles, there are microfiltration, ultrafiltration, nanofiltration, reverse osmosis. Among them, ultrafiltration can filter 20-100A(>0.1nm) size particles, filtration accuracy within 0.005-0.05nm, ultrafiltration can separate colloids, proteins, microorganisms and macromolecular organic matter in the liquid, and can pass through all dissolved salts and smaller molecules, most ultrafiltration membranes can separate molecules between 1000 and 100000 substances .
Characteristics of HS-UF device
(1)Low pressure, working pressure 0.2-0.7MPa.
(2)Operation at normal temperature, maximum temperature <45ºC, suitable for the separation of heat-sensitive substances.
(3)Good acid and alkali resistance, cleaning temperature 50ºC,PH2-11.5.
(4)Good oxidation resistance, maximum Cl2 concentration,200PPm.
(5)Reliable operation, ultrafiltration system includes pump, valve, cleaning system, monitoring instrument and protection system.
Application areas of HS-UF
Purification of industrial water;
Separation of oily water;
Juice refining;
Condensate water treatment of power plant;
Protein extraction and separation;
Oilfield waterflood treatment;
Waste water recovery;
Biological products, oral liquid, beverage decontamination. CMF continuous microfiltration device
Continuous microfiltration (CMF) is a new technology of membrane filtration.Thus, the membrane separation process tends to replace the traditional sand filtration, which is a very promising filtration method.
Continuous microfiltration can remove particles greater than 0.2μm from raw water, which is composed of filter membrane components, feed pumps, pipelines, solenoid valves, regulating valves and control systems (PLC level switches, flow monitoring, etc.), as well as purified compressed air systems, all mounted on a steel frame. Continuous microfiltration operation is simple, take automatic program uninterrupted, safe and reliable.
Application areas of HS-CMF
Industrial water;
Treatment of recycled water;
Swimming pool water treatment;
Pretreatment of seawater desalination;
Well water debacteria;
Reverse osmosis feed water pretreatment;
Drinking water;
Cooling water treatment;
Ultra-pure water pretreatment;
Mineral water after treatment;
Chemical process separation and recovery;
Treatment of dirty water during emergency disasters.

Detailed Photos
Product Parameters Technical features of HS-UF
spiral-wound membrane(PS/PN)

Model	Water yield m3/h	Spacer size mil	Trapped molecular weight MW	Roll element size mm	Individual membrane area m²	Individual maximum water supply m3/h
HS-UF-01A	1
HS-UF-02A	2			96.5×965
HS-UF-05A	5		2000/5000/	193×1016	7.4/8.0
HS-UF-10A	10	24/31/46/65/80	10.000/30.000	200×1016	9.8/33.3	6.8/9.0/27.2/34
HS-UF-15A	15		70.000/500.000	210×1016	37/59
HS-UF-20A	20			210×1524

Hollow capillary membrane(PS.PVD.90×1100)

Model	Water yield m³/h	Number of membrane elements	Trapped molecular weight MW	Pumping power kW	Overall dimension(L×W×H) mm
HS-UF-01B	1	2-4		0.75	600×400×1600
HS-UF-02B	2	4-8	6.000	1.5	800×400×1600
HS-UF-03B	3	6-12	20.000	1.5	1100×600×1600
HS-UF-05B	5	10-20	100.000	1.5	1600×600×1600
HS-UF-10B	10	20-40		2.2	2000×600×1600

Technical features of HS-CMF

Model	Water yield m3/h	Feedwater PH	Feed water temperature ºC	Membrane area m³	Overall dimension(L×W×H) mm	Shipping weight kg
HS-CMF-004	0.4	2-11	≤40	8	1500×900×1500	150
HS-CMF-010	1.0	2-11	≤40	20	1920×950×1600	165
HS-CMF-020	2.0	2-11	≤40	40	2000×1000×1800	170
HS-CMF-030	3.0	2-11	≤40	60	2000×1000×1800	180
HS-CMF-040	4.0	2-11	≤40	80	2360×1210×1920	205
HS-CMF-080	8.0	2-11	≤40	160	2650×1400×2000	315
HS-CMF-100	10	2-11	≤40	200	3000×1400×2000	338
HS-CMF-200	20	2-11	≤40	400	3750×1570×2000	540
HS-CMF-300	30	2-11	≤40	600	3950×2000×2475	614
