Three Roller Symmetrical Steel Plate Flange Rolling Machine with Control Cabinet

Product Description

Product Description
Three Roller Plate Rolling Machine
W11 mechanical plate rolling machine is a kind of general-purpose equipment specially used for metal plate bending and forming, and its structure form is three-roll symmetrical type.
This type of plate rolling machine has two lower rollers as the active rollers, which are mechanically transmitted through the motor and reducer to make the two lower rollers rotate.
The upper roller is the passive roller, its lifting movement through the motor, reducer, worm and wormwheel for mechanical transmission.
Key features
Mechanical fully automatic model - symmetrical 3 roller plate rolling machine
1.The equipment is made of steel plate welded parts, with high mechanical strength, high accuracy, and strong practicality.
he adjustment and operation of parallelism between the upper and lower rollers are simple, and the equipment maintenance is convenient.
2.Control Cabinet
Centralised control; equipment protection; simplified system wiring
3.Wireless Remote Control
Avoiding the inconvenience of a narrow range of mechanical control, it improves work efficiency and productivity.
Principle of operation (as shown)
Product Parameters

No.	Model	Biggest volume board thickness	Maximum volume board width	Speed Reduction Motor
1	W11-4x1200	4 mm	1200 mm	√
2	W11-4x1600	4 mm	1600 mm	√
3	W11-6x2000	6 mm	2000 mm	√
. . .	. . .	. . .	. . .	√
N	W11-25x3000	25 mm	3000 mm	√
The above data is based on: mild steel For more models/plates (e.g. stainless steel) please contact the staff.

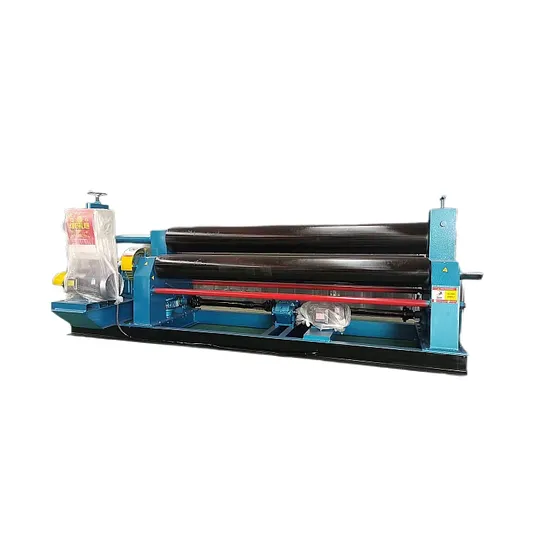

Complete Machine Picture
16*2200 mechanical automatic plate rolling machine
12*2500 mechanical automatic plate rolling machine(with Roller head to roll tube/pipe)
12*3000 mechanical automatic plate rolling machine
Detailed Photos
Roller Material.--No.20 seamless carbon steel pipe OR solid steel pipe with modulated heat treatment
Support Shaft--For transfer by forklift even without packaging.
Shaft Die
The shaft die can be customized according to the need
(to achieve synchronous operation of the plate and tube)
Packaging & Shipping
Packing and Shipping-Iron frame packing/wooden case packing/container packing
