Custom New Design Large Soundproof Aluminium Bronze Thermal Break Triple Glazed Outside Open Aluminum Bay Fixed Picture Tempered Glass Casement Window

Custom New Design Large Soundproof Aluminium Bronze Thermal Break Triple Glazed Outside Open Aluminum Bay Fixed Picture Tempered Glass Casement Window

US$138.00
2-49 Square Meters
US$116.00
50-99 Square Meters
US$98.00
100+ Square Meters

Basic Info.

Model NO.
86
Material
Aluminum Alloy
Open Style
Swing
Frame Material
Aluminum Alloy
Screen Netting Material
Stainless Steel
Style
Modern
Opening Pattern
Horizontal
Function
Heat Insulation, Soundproof, Anti-Theft, Airproof, Insect-proof, Dust-proof
Surface Finishing
Finished
Security Rating
B
Name
Double Glazed Pane Windows
Glass
5mm+20A+5mm
Hardware
Germany Brand / Chinese Top Brand
Window Material
Aluminum Alloy+Glass+Accessories
Finish
Powder Coated, Anodised, Fluorocarbon
Packing
Multi-Layers Protection Packaging
Application
Villa
Color
Customised Sizes
Size
Customised Sizes
Design Style
Modern
Glass Type
Single\Double\Tempering\Floating\Stained\Low-E
Material Thickness
1.4mm/1.6mm/1.8mm/2.0mm
Transport Package
Will Be Wrapped in Plastics Film and Paper.
Specification
customised sizes
Trademark
Hihaus
Origin
China
HS Code
7610100000
Production Capacity
10000/Week

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
70.000kg

Product Description

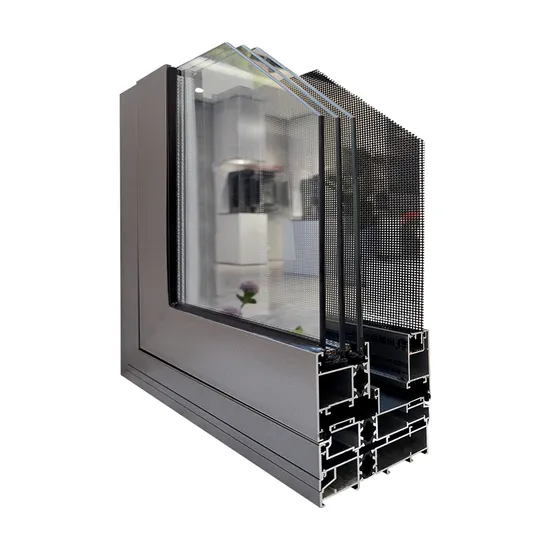

Custom new design large soundproof aluminium bronze thermal break triple glazed outside open aluminum bay fixed picture tempered glass casement window
A new Thermal break casement Window from Hihaus is widely loved by overseas customers for residential or commercial projects. It has the following advantages:
Superior drainage performance: It is designed with glue injection technology and has good waterproof. And the window frame uses a hidden drainage design, so there is no need to worry about drainage problems.
Good stability: The material and thickness of the glass and profiles ensure the solidity of the Windows, as well as the process and installation of the mesh.
Noise reduction and heat preservation: Large insulating glass and high-quality sealing materials provide a comfortable and quiet living environment for residents.
1. The fixed part of the window is pressed by arc line, which is convenient and efficient to install.
2. Standard 20A large insulating glass, sound and heat insulation effect is good.
3. The fan adopts German group Angle injection process design, strong stability and firmness; Better waterproof performance.
4.Accessories imported hardware accessories, safety and anti-prying lock seat, safety and anti-prying performance is good.
5.The window frame part adopts the hidden drainage design, and the drainage performance is better
6.Glass interior design, safe and agile installation; Indoor optional guardrail, optional anti-fall device
Product Name 86 series Thermal break casement window
Material 1.4mm Thickness aluminum alloy, High strength silicon magnesium aluminum alloy
Max. Single sash size 700*1400mm
Open Style Single exterior window & On the outside hang, Inside with gauze mesh
Glass Specification 5mm+20A+5mm Hollow tempered glass, optional with tinted glass, Electric louver
Mesh 304 stainless steel net
Hardware German HOPPE handle, German RUNAS Friction hinge, Concealed hinge set
Location Villa, Commercial, Residential, Apartment
Detailed Photos
1.The 45-degree Angle makes the overall window performance more stable..
In addition, with anti-collision Angle, more than one protection.
2. Germany SIEGENIA hardware handle
smoother to use.
3. Glass fan using reinforced hinge
German imported brand, support triple glass for cold insulation
4. Mesh panel 90 degrees open
304 stainless steel net, with anti-mosquito anti-theft function.

Guangzhou Hihaus Building Materials Co., Ltd.
Hihaus is your one-stop project solution provider. Experienced with the project in the Americas, Southeast Asia, Middle East, Australia, etc.
1.TOP 10 manufacture in China.
2.123,000 sqm Workshop, 800+ skilled workers.
3. Annual prodution capacity: over 500,000 sqm.
4.17+ years experience.
5. AAMA, ISO9001, AS2047, AS/NZS 2208,40+ patents etc.
