48V 5 AMP Power Adapter 150W 180W 200W 250W 360W UL FCC PSE GS CE Ukca SAA C-Tick RoHS Reach IEC62368 IEC61558 AC/DC Power Adapter 24V 6A Power Supply Adapter

48V 5 AMP Power Adapter 150W 180W 200W 250W 360W UL FCC PSE GS CE Ukca SAA C-Tick RoHS Reach IEC62368 IEC61558 AC/DC Power Adapter 24V 6A Power Supply Adapter

US$24.50
1-999,999 Pieces
US$15.50
1,000,000+ Pieces

Basic Info.

Model NO.
MKK-2
Certification
TUV, RoHS, ISO9001, CCC
Color
Black
Type
OEM
Internal Structure
On-Off Type
Power Source
Full-Bridge Type
Connection
Plug In
Bluetooth Standard
Without
Brand
Dilithink
Part No.
Mkk-2
Output Voltage
12~60VDC
Output Current
0.1 ~ 25A
Material
100% PC ( Fireproof )
Protection Feature
Over Current&Voltag;Short Circuit Protection
AC Plug
EU Us UK Ar Aus Kr Jp Plug Optional
Warranty
3 Years
OEM
Support New Shapy, Color , Specifiction, DC Plug
Connection-Peg
C8/C6/C14
Transport Package
1PC in a Inner Box, 100 Inner Boxes in One Carton
Specification
L152.5xW65.5xH35mm
Trademark
DILITHINK
Origin
Shenzhen, China
HS Code
8504401400
Production Capacity
7, 200, 000.00/Year

Product Description

48v 5 amp power adapter 150w 180w 200w 250w 360w UL FCC PSE GS CE UKCA SAA C-Tick ROHS REACH IEC62368 IEC61558 ac/dc power adapter 24v 6a power supply adapter

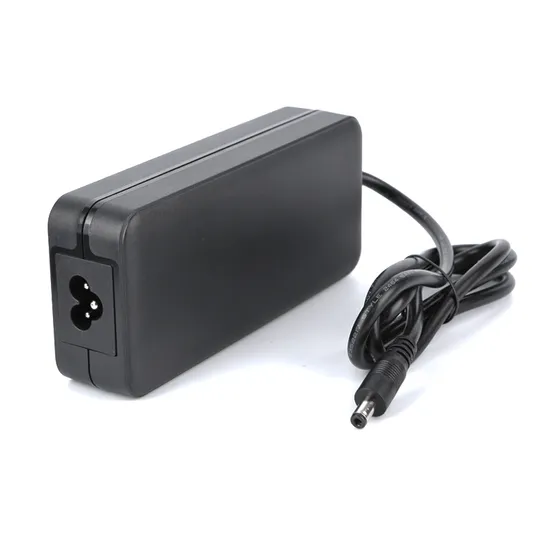

1. PRODUCT PHOTOS:
Our ac dc power adapter uses the PC materials
1.1 Temperature resistance 130ºC
1.2PC material meets the requirement of the spherical pressure test.
2. PRODUCT PARAMETERS:
Input Volt.&Freq. 100~240VAC&50-60Hz Typ. 90~264VAC&47~63Hz Range
Energy Level DOE VI
Withstanding Voltage
(Between Pri. and Sec.)
3000VAC 1Minute 10mA Max
Output Voltage 12-60VDC
Output Current 100-25000mA
Output Power 250W Max.
Ripple&Noise <120mVp-p
Load Regulation ±5%
Burn-in 100%, full-load 4Hours Min.
Mean Time Between Failures Over 100K Hours
Full Load@25ºC
Operating Temperature -10~40ºC
Storage Temperature -20~80ºC
Relative Humidity 20%~80%
Safety Standard UL/cUL/FCC/PSE/CE/GS/UKCA/SAA/C-Tick/KC/KCC/EAC

The general outputs list:
12V 16A 18V 13.8A 26V 7.5A 36V 5.5A 45V 4.4A 52V 3.8A
12V 18A 19.2V 10A 26V 9.5A 36V 3.9A 45V 5.5A 52V 4.8A
12V 20A 19V 11A 28V 7A 38V 5A 46V 4.3A 53V 3.7A
15V 13A 19V 13.1A 28V 8.5A 38V 6.5A 46V 5.4A 53V 4.7A
15V 15V 20V 10A 30V 6A 40V 5A 48V 4A 56V 3.5A
15V 16.6A 20V 12.5A 30V 8A 40V 6.25A 48V 5.2A 56V 4.4A
18V 10A 24V 8A 33V 6A 42V 4.7A 50V 4A 60V 3.3A
18V 11A 24V 10A 33V 7.5A 42V 5.9A 50V 5A 60V 4.1A

3. WHICH CAN BE CUSTOMIZED FOR OUR AC ADAPTER:
4. TO PRINT THE CUSTOMER'S LOGO ON THE AC DC POWER SUPPLY ADAPTERS:

5. SAFETY STANDARDS OF POWER ADAPTERS:
Our power adapters are used in different industries,
which need one-by-one safety standards for different industries.
The certifications of our power supply are as below:
5. QUALITY ASSURANCE:
ac adapters are 100% tested in the production process
6. MAIN PRODUCTION PROCESS FLOW CHART, HOPE CAN HELP YOU TO
KNOW OUR AC DC POWER SUPPLY ADAPTERS MORE:
7. PACKAGE &SHIPPING OF THE AC DC POWER ADAPTER:
8. ABOUT US:
We have 17 years of manufacturer experience in the ac dc power adapter and power supply industry.

We are customer-oriented, serve customers in different countries and industries, and provide professional ac dc power adapter power solutions to customers.
Application
Our power adapters are used in small household appliances, IT communications, audio and video, computer peripherals, mobile phone peripherals, security, power tools, machinery and equipment, maternal and child products, pet products, and medical products.
Production and R&D
Our multiple production links of the product use standard automated production, reduce manual operations, and use mechanical automation instead, which can optimize the stability of product quality at the same time it also improves the production efficiency and increases the cost competitiveness of our adapters in the market.
In future work, hope will continue to optimize the production process SOP, so that our adapters will become better and better, more and more in line with the trust and satisfaction of customer groups.
We have a strong R&D team that can provide customized services for customers. Customized service can be an adapter or PCB BOARD.
Our factory is close to the Shenzhen airport, it takes about 30 minutes.
9. EXHIBITION:
Welcome to meet us at the exhibition
10. WE HAVE OTHER MODELS:
15W 18W 24W 36W 48W 65W 100W 120W 150W 250W and 360W...
Welcome to send us emails. thanks.
11. HOW TO GET FREE SAMPLES?
11. OUR SERVICE: 1: We will send your free samples for your confirmation.
2: We welcome you to visit our factory in Shenzhen, China.
3: We welcome customers to check the mass ac dc adaptor before shipment.
4: We will send you the QC report before the mass power adapters before shipped.
5: You can ask refund ac dc adaptor 30 days after you get the goods, and all of the cost we will afford if the reason is ours, What's more, we will give you the new products as soon as possible
12. TERMS AND CONDITIONS: 1. Payment terms: T/T, L/C, Western Union, PayPal, etc. 2. Lead time: sample in stock; bulk production 10~15 days after deposit. 3. 24/7 service. 4. OEM/ODM are both available.5. Your company's LOGO on the adapters available and customized color box and the outer package also available.
13. RFQ
1Q: If you have a possibility to print or engrave the customer's logo on the adapter?If you do, how would it affect the price per unit?
1A: We can engrave the customer's logo on the power adapters, and it doesn't affect the price per unit,
there is no cost increase for the logo printing.
2 Q: What is your MOQ?
2A: Generally our MOQ for each model is 500PCS, we can discuss in detail if you have special requirements, like a big quantity for the whole order but a small quantity for each model.
3Q: How about your warranty for the ac/dc adapter?
3A: Generally we offer a 2-year warranty for our products. Quality is the most important for long-term business partnerships, and it is also our company's aim to offer high-quality and guaranteed products to help our clients expand their target markets.
4Q: How can I get detailed specifications about this power supply? Do you have a catalog and price list?
4A: We have each model's specifications, catalogs, and price lists. Welcome to contact us for detailed information via the contact ways mentioned below anytime!
Q: How about the sample? For free?
A: YES! Generally, we offer 1-3PCS free sample(s) for your test
