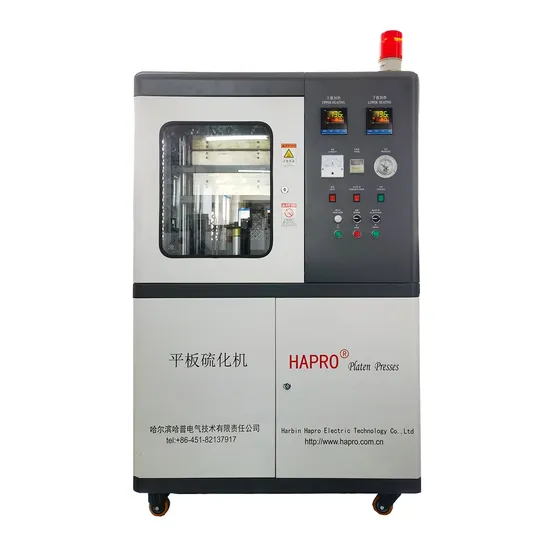

Laboratory Automatic Hot Pressing Machine
| US$14,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
PL-300
Certification
CE
Condition
New
Customized
Non-Customized
Automatic Grade
Automatic
Structure
Block Assembly
Size Heating Board
300*300mm
Size Cooling Board
300*300mm
Working Floors
2
Open Model
Auto
Accuracy Temperature
Less Than or Equal to 1.0 °
Transport Package
Plywood
Trademark
Hapro
Origin
China
HS Code
9024900000
Production Capacity
100/Year
Product Description
Instrument useRaw materials are placed into a mold and are clamped between electric heating flat plates of the machine; with pressure and temperature, materials are formed into the needed shape for experiments. 1.2 Design principleA hydraulic pump driving pressure, and temperature generated by heater, shaping the specimen in the mold cavity Technical parameters:| Photograph | Performance Index | Performance Parameter |
| All pressure | 30T(adjustable) | |
| Temperature | room temperature ~300ºC | |
| Temperature controller | LED show temperature value | |
| Heating method | Electric heating | |
| Total power | 7 kW | |
| Power supply voltage | 3 phase , 380V | |
| Cooling method | Nature water cooling | |
| Accuracy between board | ±1ºC | |
| Accuracy temperature | ≤±1.0ºC | |
| Dissipation heat | ≤±1.5ºC | |
| Timer | LED 0~99(H) | |
| Size heating board | 300×300mm | |
| Size cooling board | 300×300mm | |
| Working floors | 2 | |
| Open model | auto | |
| Distance between board | 0~90mm | |
| Range of hydro cylinder | Max. 250mm | |
| Speed of hydro cylinder | 14mm/s | |
| Motor | 5 HP | |
| Safety part | position in the door | |
| Dimension (L×W×H) | 1550×1320×600mm |
