90% New Used Combined Cone Crusher Gp1400

Product Description

Product Description

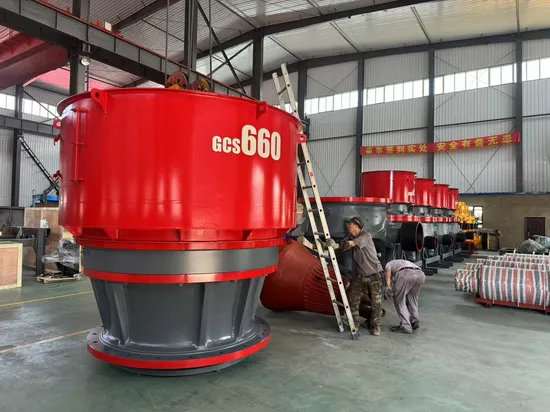

this second hand cone crusher 1400 ,just use 8months , store in my factory pass two year
very good , we test well. before ship
100TPH 150TPH 200TPH Granite Stone Crushing Machine Production Line INTRODUCTION
The stone crushing plant machine consists of vibrating feeder, jaw crusher, fine jaw crusher, cone crusher, impact crusher, hammer crusher, vibrating screen, roller crusher or sand making machine, sand washing machine, belt conveyor system, control system, etc. We can desgin the stone crushing and screening system based on your requrements, like raw material types, input size, output sizes, capacity. The stone crusher plant can crush so many materials, granite, basalt, cobblestone, river stone, dolorite, limestone, gypsum, iron ore, copper ore, coal, etc.
The stone crushing production line system is widely used in mine, metallurgy, the building, road and railroad construction, hydraulic construction, chemical industry, fire-proofing material and ceramics.
Primary Stone Crushing Machine-Jaw Crusher
Secondary Stone Crushing Machine-Cone Crusher, Impact Crusher, Hammer Crusher
Stone Separating/Sieving System-Vibrating Screen
Stone Conveying System-Rubber Belt Conveyor
100TPH 150TPH 200TPH Granite Stone Crushing Machine Production Line FEATURES AND BENEFITS
1. High crushing ratio, uniform final product size;2. Deep crushing chamber without dead zone, which increase the feeding capacity and production capacity;3. Stable and convenient gasket discharge adjusting device makes the adjusting range wide and flexible;4. Safe and reliable lubrication system, easy replacement of wear;5. Simple structure, low operation costs;
6. Energy saving, low noise and little dust.
Product Parameters
100TPH 150TPH 200TPH Granite Stone Crushing Machine Production Line SPECIFICATIONS
Jaw Crusher

Model	Max. feeding size(mm)	Output size(mm)	Capacity(t/h)	Power(kW)	Weight(t)	Dimension(mm)
PE250*400	210	20-60	5-20	15	2.8	1450*1335*1310
PE400*600	340	40-120	15-50	30	6.5	1565*1732*1586
PE350*750	300	20-100	25-70	37	7.3	1810*1900*1730
PE500*750	425	50-100	40-80	55	10	1980*1890*1860
PE600*900	500	65-160	50-120	75	17	2290*2206*2370
PE750*1060	630	80-140	100-180	110	27	2790*2450*2840
PE900*1200	750	95-165	140-300	132	50	3335*3182*3040
PE1000*1200	850	195-265	160-390	132	51	3435*3182*3050
PE1200*1500	950	150-300	300-800	160	100	4200*3750*3820
PE1500*1800	1100	180-350	400-1000	315	139	5185*3660*4255
PE1800*2000	1400	180-400	500-1200	400	160	5630*4100*4800
PEX250*1000	210	25-60	20-50	37	6	1580*1964*1380
PEX250*1200	210	25-60	25-60	37	6.5	1580*2164*1430
PEX300*1300	250	20-80	30-90	55	11	1750*2320*1730

Cone Crusher Specifications

Model	Max. Feed Size	Min. Discharge Size	Speed	Power	Weight	Capacity(t/h) in different discharge size(mm)
	(mm)	(mm)	(RPM)	(kW)	(t)	6	10	13	16	19	22	25	38	51	64
GPCC600	95	10	630	37-55	5.3		20	25	30	35	45	50	76
GPCF600	72	6	630	37-55	5.3	18	20	25	30	35	40	45	60
GPCC1000	160	13	630	90-110	10.8			80	100	135	150	175	235
GPCM1000	115	10	630	90-110	10.8		65	75	90	120	135	150
GPCF1000	80	8	630	90-110	10.8	52	62	72	78	115
GPCC1160	180	13	630	110-132	16		115	135	150	180	200	260
GPCM1160	130	10	630	110-132	16		100	110	120	135	165	175
GPCF1160	90	10	630	110-132	16		80	105	110	140
GPCC1300	200	16	610	132-160	23				150	180	200	230	310	390
GPCM1300	150	13	610	132-160	23			115	140	160	190	210
GPCF1300	102	10	610	132-160	23		90	115	145	160
GPCC1380	215	19	610	185-220	27					200	220	260	350	440
GPCM1380	160	16	610	185-220	27				155	180	200	220
GPCF1380	115	13	610	185-220	27			150	190	210	230
GPCC1500	235	22	560	220-280	37.8						265	310	420	525	580
GPCM1500	175	19	560	220-280	37.8					215	240	265	320
GPCF1500	130	13	560	220-280	37.8			180	210	235	255	275
GPCC1650	267	22	560	250-315	44.3						330	390	525	655	725
GPCM1650	203	16	560	250-315	44.3				210	250	280	300
GPCF1650	140	13	560	250-315	44.3			180	220	260	335

Impact Crusher

Model	Max. feeding size (mm)	Feeding size (mm)	Rotor size (mm)	Capacity (t/h)	Power (kW)
PFG1214	250	400*1360	Φ1250*1400	110-220	132-160
PFG1315	350	800*1480	Φ1300*1500	160-260	185-220
PFG1416	500	860*1580	Φ1450*1600	220-360	280-315
PFG1620	500	860*1960	Φ1620*2000	350-520	250*2
PFG1820	600	980*1960	Φ1820*2000	400-660	315*2
PFG1824	600	980*2360	Φ1820*2400	500-760	400*2
PFG2024	700	1080*2360	Φ2020*2400	650-980	500*2
PFG2224	700	1080*2360	Φ2220*2400	760-1200	560*2

Detailed Photos
100TPH 150TPH 200TPH Granite Stone Crushing Machine Production Line
Project Case
100TPH 150TPH 200TPH Granite Stone Crushing Machine Production Line WORKING SITE
Packaging & Shipping
Standard Export Packaging and Shipping
The products should be processed to be rustproof and moisture proof before delivery. The small parts are packed into wooden crates; the big parts are wrapped by plastic sheeting.
Sales Service
Pre-sales Service
We can provide customers with single machine or complete processing plant by our wide product range. Based on the customers' request and budget, our experts make out efficient and reliable solutions. We arrange the production strictly following customers' order. What's more, every customer has the chances to visit the factory and working machine in the site before placing the order. We will arrange cars, hotels and translators for the visiting customers.

After-sales Service
Our experienced technicians is available on the phone and on the internet,customer can get instance guidance. Dispatch engineers to help customer installation and train local worker to operate and maintain the equipment. Well trained and prfessional engineers are at your service home and abroad.
FAQ
To choose the appropriate model for you, we need to know the following information, when we get your requirement information, we will send you our accurate quotation soon with additional discount:
1. What's the raw materials(such as granite) and its size(mm/inch, such as 500mm)?
2. What's the discharging size? 0-5, 5-10, 10-20, 20-40mm?
3. What's the required Capacity(tons per hour or TPH)? such as100TPH, 150TPH, 200TPH, 300TPH.
4. Other special requirements.
We are one leading manufacturer of stone crusher machine in China with main products of jaw crusher, impact crusher, cone crusher, mobile, double roller crusher, hammer crusher, ball mill, vibrating feeder, vibrating screen, sand making machine and sand washer, belt conveyor, magnetic separator, brick making machine,etc.
If any question, please kindly contact us.
