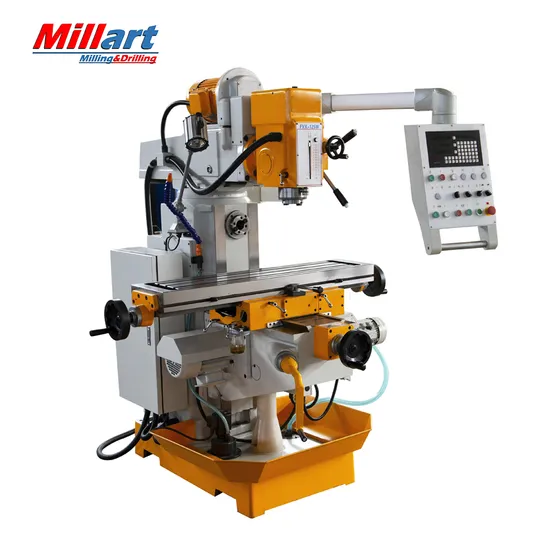

Mill and Drill Machine Xz6326b Vertical Mill Head with Spindle Auto Feed by Electric Clutch
| US$5,000.00-6,100.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XZ6326B
Object
Hardware
Structure
Lifts
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Program Control
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
1120X260
T Slot/Width/Distance
5/14/50
Max. Load of Table
200
Table Longitudinal Travel(Manual/Auto)
600
Table Cross Travel (Manual)
300
Table Vertical Travel(Manual)
380
Spindle Taper
ISO40
Transport Package
Wood Case
Specification
CE ISO9001
Trademark
L&T
Origin
Tengzhou China
HS Code
8459590000
Production Capacity
200PCS/Month
Product Description
Mill and Drill Machine Xz6326b Vertical Mill Head with Spindle Auto Feed by Electric ClutchFeatures:
Spindle can feed automatic
Spindle can be forward and reversal for tapping
Vertical mill head can swivel ±90 degree
X,Y axis can feed automatic
Z axis can motorized lifting
Table size 1270*260mm is optional
Technical parameter:
| Model | unit | XZ6326B |
| Table size | mm | 1120X260 |
| T slot no./width/distance | no | 5/14/50 |
| Max. load of Table | kg | 200 |
| table Longitudinal travel(manual/auto) | mm | 600 |
| table Cross travel (manual) | mm | 300 |
| table Vertical travel(manual) | mm | 380 |
| Spindle taper | ISO40 | |
| spindle speed /step -- Vertical | rpm | 67-2010/12steps |
| --Horizontal | rpm | 40-1300/12steps |
| Max.drilling dia. | mm | 30 |
| Max.end milling width | mm | 125 |
| Max. vertical milling Dia. | mm | 25 |
| Max.tapping dia. | mm | M16 |
| quill travel | mm | 120 |
| swivel angle of headstock | degree | ±45º |
| vertical spindle axis to column surface | mm | 220-760 |
| vertical spindle nose to table surface | mm | 115-430 |
| horizontal spindle axis to table surface | mm | 0-380 |
| horizontal spindle axis to ram bottom | mm | 175 |
| ram travel | mm | 520 |
| Longitudinal feed | mm / min | 24-720/8steps |
| Longitudinal rapid speed | mm / min | 1040(X) |
| automatic spindle feed | 0.1/0.15/0.3 | |
| main motor | kw | 1.5/2.2(V),2.2(H) |
| feed motor | kw | 0.37(X) |
| coolant motor | kw | 0.04 |
| overall dimension | cm | 158X145X215 |
| N/W,G/W | kg | 1350/1500 |
Standard accessories:
| Drill chuck |
| Reduction sleeve |
| Draw bar |
| X,Y axis auto power feed |
| Z axis motorized lifting |
| Mill arbors |
| Collet chuck kits |
| Coolant system |
| Chip tray |
| Work lamp |
| Tools and box |
Optional accessories:
| 3 axis DRO |
| Air draw bar |
| 58 pcs Clamping kits |
| Spindle protection |
| Worktable protection |
| Rotary table HV10 |
| Dividing head F11-160A |
| Machine vice 160mm |
