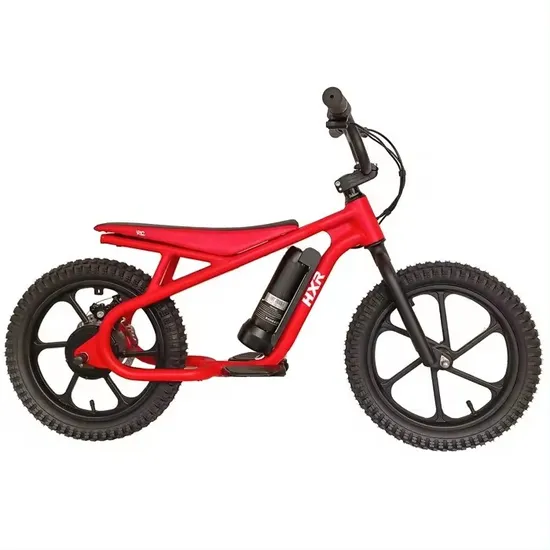

Balance Electric Bike for Kids with CE
Basic Info.
Model NO.
kids E-bike
Battery Voltage
24V
Battery Type
Lithium Battery
Wheel Size
16"
Motor
Brushless
Frame Material
Aluminum Alloy
Certification
CE, EN15194
Folded
Unfolded
Max Speed
<20km/h
Range per Power
31-60km
Balance Bike
Balance Prctice Ebike
Transport Package
Carton
Specification
130X25X55
Trademark
HXR
Origin
Cn
HS Code
8711901010
Production Capacity
20000pieces/Year
Product Description
| Basic Info. | |||||
| Model | Cargo E-bike | Wheel Size | 12"/16" | Colour | White/black |
| Gross Weight | 18kg | Net Weight | 14kg | Speed | 15-20km/H |
| Range | 30km | Max Loading | 50kgs | Drive Mode | PAS/Electric |
| Charging Time | 5-6 h / 2A charging | Packing Size | 155X30X77cm | Transport Package | Carton Box |
| HS Code | 8711600010 | TARIC Code To EU | C468 | Certificate | CE EN15194 |
| Electric System | ||
| Parts | Item | Specification |
| Motor | Wheel diameter | 20 |
| Nominal voltage | 24 Vdc | |
| Rated power | 200 | |
| Max speed | 15-20 Km/h | |
| Max torque | 35 N.m | |
| Pedal sensor | cadence | |
| Weight | 2.5 Kgs | |
| Battery | Li-ion battery | Ingredient : : Nickel oxide 10-14% ,Lithium cobalt phosphate 3-4% ,Manganese 5-8% ,Carbon 12-15% Copper 8%, Polyviny idene fluoride PVDF 6%,Al 5%,EC 5% |
| Nominal voltage | 24v | |
| Energy | 125wh | |
| Rated Capacity | 5Ah | |
| Voltage Scope | 24V | |
| Charging time | 2A charge:5-6 h | |
| lifecycle | 1200 times | |
| range | pedal assist mode, 25km | |
| Weight | 3.5 Kgs | |
| Controller | Rated Voltaage | 24v |
| Rated power | 200W | |
| Low Voltage Protection | 24V | |
| Current Limit | 30A | |
| Water Proof | IPX6 | |
| Multiple Protections | Over-current protection,over-voltage/under-voltage protection, overheat protection, runaway protection, short-circuit protection, phase wire disconnect protection, blockage protection | |
| Flexible configuration | Parameter settings can be modified through USB interface with the computer, or through display. Parameter include current limit value, low voltage protection value, sensor type, maximum speed, power ratio etc. | |
| Displayer | Conmunicate mode | UART,CAN |
| Function | Battery indicator,Headlight ,Walk mode,PAS level, Speed,Trip/ODO,Trip time,Mile/Km | |
| USB charge | option | |
| speed | 25km/h | |
| Mode | smart | |
| handelbar subassembly | ||
| handle bar | BH-AL-2S/EN-C/W:650×45º/Φ25.4/alloy/SS.A.BK/andoized black | |
| stem | DA-32/E:90×R:10º×B:Φ25.4×C:Φ28.6×H:40/alloy/andoized black //anti-rust | |
| left grip | DC-G120/L=120mm/BK/PT425C/sealed | |
| right grip | DG-G120/L=120mm/BK/PT425C/sealed | |
| throttle | FT21X/L=100mm(cable only)JL-F-Z309AG/ 3 pin male-WX-FT21X-012 | |
| front shifter | ASLRS35R7EP/SL-RS35-7R/TOURNEY/7speed/2500mm inner line/gear indicating/ | |
| brake level | EL550-TS/L=100mm(cable only)JL-F-Z209AG /2pin male /alloy/black | |
| F brake wire | 1000/1150/ | |
| R brake wire | 1650/1800/ | |
| displayer | LCD800S/36V/5 level/throttle 6KM/speed limit 45KM/black/L=120mm(cable only)JL-F-Z509AG 5 pin male socket /seprate handle cable L=280mm/fiting with Lishui controller | |
| bell | AD-098-3 /36mm/Φ22.2 /pc/AL/painting black / | |
| front reflector | #500-8582/RR-180-SLW//C.P.S.C./BS/ECE/DIN/JIS/3919901N/NGH-222//Φ22.2/C.P.S.C./JIS | |
| front wheel subassembly | ||
| front wheel sets | 16" front wheel sets | |
| front hub | KT-SL4F/13G×36H/3/8"×135W×154mm/AL/anodized black | |
| rim | AL-07/2"/13G×36H/single layer /Weight reducing ring/AL/Black/ | |
| tube tape | 16"×65W/L=855mm/nylon/red | |
| tire | H5176/26"×4.0/black | |
| inner tube | 16"×1.95black/nipple 48mm/cap | |
| spoke | 13G×258mm/steel/electro black /nickeling copper nut | |
| spoke | 13G×203mm/steel/electro black /nickeling copper nut | |
| wheel reflector | 722SS A//yellow//CPSC/TPL/AS/ECE/CAN | |
| front disc plate | TR180-1/stainless steel | |
| frame subassembly | ||
| Frame | alloy 6061T6/YS935 grey (80% matte black)/front tube140mm/BB 88mm/top tube490mm/wheel base170mm | |
| fork | PS4-005-20/Φ28.6×Φ25.4×217L×0/forkbase135mm/length475mm/alloy//disc | |
| headsets | H148/1-1/8"×44/50×30/hight9.9±1/steel/Electroplated black /C2861 tension adjuster/threadless | |
| stem washer | 3510/Φ28.6×10 / alloy/ black anodized | |
| saddle | DDK181S/leather/rived//Spring ED black/ | |
| seat post | SP-C208/EN-M/Φ30.4×300/ alloy SS.A.BK/andoized black | |
| post clamp | 319Q/Φ35/alloy/black anodized /CP washer/ | |
| rear derailleur | ARDM360SGSL/RD-M360-L/ACERA/SGS/7~8 speed/black/direct mounting | |
| kick stander | TA-45/adjustable distance270-335mm/40mm/alloy/ electroplated black | |
| rear discbrake | ARIES/MD-M280/side mounting/A3adaptor /TR180-1 rotator/steeless screws | |
| controller | DS-5C/brushless 48V500W120º/curretn limit 15A/waterproof cable/ inner motor speed cadence/with APT800S display | |
| batery top case | DS-5C/pc+alloy | |
| battery | DS-5C/24V/5Ah/18650 cell/ 2400MA/PC black/DC2.1 chrage port/power socket/with for250w motor,current limit 15A controller /all accessory /2 keys/ cell size :18650/21700 | |
| batery bottom case | DS-5C/pc+alloy | |
| front light | LED front light 24V battery power | |
| rear light | LED rear ligh24V battery power | |
| charger | 24V 2A | |
| bottom bracket shafter subassembly | ||
| pedal sensor | PAZ/5V/L=100mm/JL-F-Z309AG/3 pin /5 cadence sensor | |
| BB parts | B910/163×88±0.5/steel/electroplated (ED) black /With hexagon socket dustproof screws/ | |
| chain | KMC/HP6L/(1/2"×3/32")/6 speed/PP0 joint/grey/120 pcs | |
| crankwheel | PRO-Q36PP,3/32×36T×170mm/alloy/BED(1/8/double cover | |
| pedal | B087DU/108×102×28.8mm//Al/electro black//2DU | |
| axle washer | Φ16×Φ20×11mm/steel/Electroplated black/ | |
| rear wheel subassembly | ||
| rear wheel sets | 16" wheel hub motor sets | |
| gear | AMFTZ217428T/MF-TZ21/TOURNEY/7 speed /14-28T/&28T | |
| rear hub motor | 24V200W120º/26"×36H/25KM/wheel base 158.5mm//brushless with hall /inter speed sensor/JL 9 pin cable/painting black/26"36V250W/CE | |
| rim | AL-07/26"/13G×36H/single layer /Weight reducing ring/AL/Black/ | |
| tube tape | 16"×65W/L=855mm/nylon/red | |
| tire | H5176/20"×1.95/black | |
| inner tube | 16"×1.95/black/nipple 48mm/cap | |
| spoke | 13G×258mm/steel/electro black /nickeling copper nut | |
| spoke | 13G×203mm/steel/electro black /nickeling copper nut | |
| wheel reflector | 722SS A//yellow//CPSC/TPL/AS/ECE/CAN | |
| rear discbrake | ARIES/MD-M280/side mounting/A3adaptor /TR180-1 rotator/steeless screws | |
