CNC Cutting Machine Materials

Product Description

Product Parameters

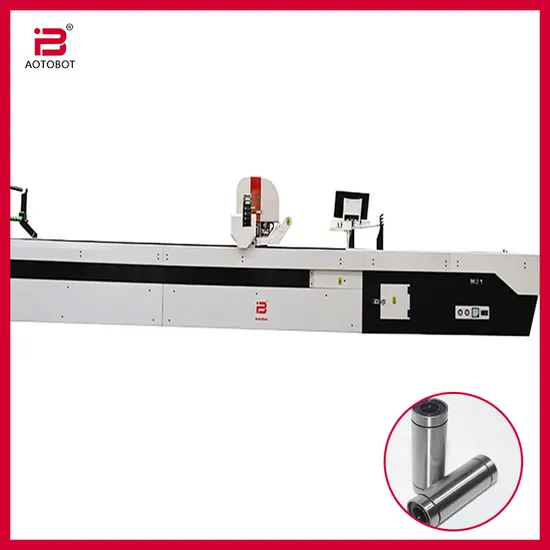

M21 Targeting industry Children's wear, Swimwear, Underwear

Machine type		M21	Remarks
Feature	Name	AOTOBOT
	Cutting width	1950
	Cutting length	3200
	Maximum Cutting height	75mm/110mm
Cutting specification	Methods	Straight knife reciprocating clipping
	Knives	Automatic sharpening, Knife width 8mm Thickness 2.0, 2.5mm
	Speed	Top speed 45m/min
	Accuracy	± 1mm
	Drills	Solid 1.6, 2, 3mm	Specification for hollow drilling 4-20mm. Selection
Machine specification	Outside dimensions of machine	length width and height 7100*2600*1400mm
	Conveyor area	length and width 2450*2100mm	Optional custom length 3000/3500mm
	Vacuum method	separate frequency conversion adsorption
	Operate the computer	pc desktop computer
System specification	language	Chinese ,English
	Power	Three phase 380V , 22KW
Others	Compressed air	-20KP
	Standard color	White
	Weight	5000KG
	Option	Selection, Knife cooling, Device movement

Product Description
Specification
Automatic covering film
Automatic positioning and drilling
Automatic cleaning bristle device
Automatic air float linkage device
Automatic indicator for grinding and blade changing
Separate vacuum pump and multi-section control
Automatic indicator for fault detection
The cutting machine can move transversely to meet multi-lines of cutting work areas.etc
Function Feature
Vacuum
The vacuum adsorb pressure is stronger , exhaust decompression and cooling Chamber design
New crankshaft
New crankshaft cutter cutting conveyor , lower noise , higher cutting strength ,less vulnerable parts
Double blade plate
Double blade plate design , more stable cutting accuracy , more accurate cutting of lightand thin impermeable fabrics
Company Profile
ZHEJIANGBOPAIINTELLIGENGTTECHNOLOGYCO.,LTD is high-tech company, which is specialized in intelligent cutting equipment design, research, and sales. With introducing foreign advanced technology and incorporating own experience in cutting field for many years, AOTOBOT has becomes the complete solution manufacture. It supplies CAD, spreading machine, smart cutting machine for soft material cutting industry. The company's products have been used from traditional textiles and clothing to the outdoors. car home furnishing. sofa seat, medical treatment, industrial textile industry and other fields. And successfully developed cutting technology for glass fiber, aerospace materials, bulletproof materials, synthetic materials. The company's products are all over Germany, the United States. The company's product has been sold to Germany, United states, Brazil, Vietnam, Cambodia, India, Kazakhstan and other countries. Also established branch in Vietnam. With rich experience and R&D ability, AOTOBOT could provide customized service and personalized product. also it supplies systematic cutting solution. Has invested enormous amount of energy on intelligent factory automation, AOTOBOT hugely promotes production efficiency and solve factory intelligence problems for customer factory Our aim is to create reliable products with professional technology and win the recognition of users with good after-sales service. Business philosophy: Integrity and cooperation, and win-win future. Corporate culture: unity, diligence, refinement, and innovation. Future development, we will open. more intelligent cutting custom era.
FAQ
Q1. Are you a factory or a trading company?
(ZHEJIANG BOPAI INTELLIGENT TECHNOLOGY CO., LTD.)is a national high-tech enterprise specializing in the design, research and development, production, sales and service of intelligent cutting equipment. We have more than 15 years of manufacturing experience, and our products
were exported to more than 80 countries and regions.
Q2. Where is the advantage of your machine ?
Our cutting system technology developed from Japan since 40 years ago, till now , we have sold to
More than 40 countries.
Aotobot brand cutting machine equipped with all the specifications . Bopai company appled the Patent of double knife plate which hugely improved the cutting speed by double time. Aotobot equipment supply YASAKAWA motor and drive system,
Adsorption device, bristle cleaning automatically,air cooling system, knife intelligence technology etc.
Q3. how about the installation and after sale service?
A: we have one strong and professional after sale service team,all the engineers with more than 10 years experiences. We can send technical to supply training and installation. Also we have distributors in all over the world, which also can take care of the after sale service daily.
Q4. How do you guarantee your quality?
A: With more than 40years of manufacturing experience, our products are
superior to the domestic standard and meet the Japan standard. All the main device are
Importing from Japan . machines run well without confusion on problem.
