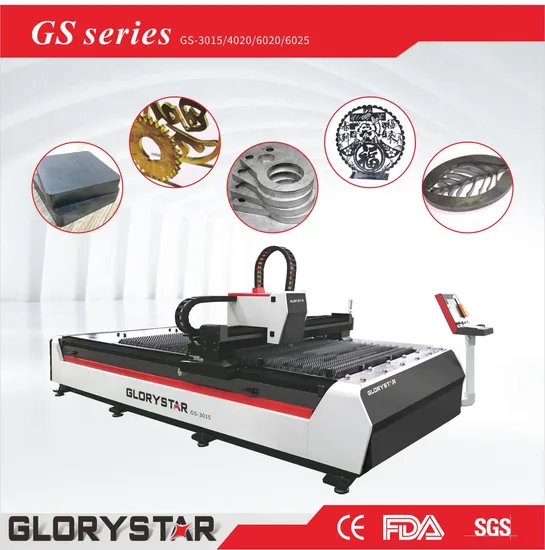

CNC Laser Cutting Machine with Japan Panasonic Servo Motol
| US$29,500.00-175,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GS-3015
Technical Class
Fiber Laser
Applicable Material
Metal
Structure Type
Gantry Type
Laser Classification
Fiber Laser
Laser Technology
Laser Control Fault Cutting
Model No
GS-3015
Laser Type
Fiber Laser Generator
Laser Power
500W/1000W/2000W Ipg Laser Generator(Optional)
Working Area
3000mm * 1500mm
Max.Load of Worktable
800kg
Product Name
Mental Laser Cutting Machine
X Axis Travel Distance
3030mm
Y Axis Travel Distance
1520mm
Z Axis Travel Distance
105mm
Main Power Protecting Level
IP54
Transport Package
Package by Plywood
Specification
36CBM
Trademark
Glorystar
Origin
Dongguan City, Guangdong Province, China
HS Code
8456100090
Production Capacity
8000 PCS / Year
Product Description
CNC Laser Machine Japan Panasonic Servo Motol laser cutter japanProduct Features
The strong frame is completely welded, high temperature annealing and stress relief treatment to ensure no deforming
Imported high precision ball screw transmission / rack & pinion, high precision linear guide rail
Imported servo motor and drive, imported high-rigidity precision gearbox.
Equipped with auto-lubrication device, with dust removal and smoke extract system in cutting area
Modular structure of laser generator, high performance and free from maintenance
Professional laser cutting software, easy, convenient and smart to operate, easily design all kinds of graphics and texts for cutting.
Accessories
Technical Table
| Model No. | GS-3015 |
| Laser Power | 1000-3000W(Optional) |
| Working area | 3000*1500mm |
| Total Power Consumption | <9KW |
| Transmission Mode | Rack & Pinion, Dual Drive |
| Voltage and Frequency | 380V 50Hz(60Hz) |
| Dimension | 4200*2320*1620mm |
Applicable Materials
Mainly applicable for non-contact and fast cutting, hollowing and punching of carbon steel, stainless steel, steel alloy, galvanized steel and metal pipes etc.
Applicable Industry
Widely used in all kinds of metal cutting industries such as metal working, kitchen and bathroom wares, advertising & signs, lighting & hardware, electrical cabinets, auto parts, machinery and equipment, appliance, precision parts and so on.
Sample Show
| GLORYSTAR 1000W FIBER LASER CUTTING THICKNESS | ||||
| Materials | Thickness(mm) | Cutting speed (m/min) | Auxiliary Gas | Air pressure (bar) |
| Carbon steel | 0.5 | 50 | Air | 6 |
| 0.8 | 28 | Air | 8 | |
| 1 | 23 | Air | 10 | |
| 2 | 6.5 | O2 | 3.5 | |
| 3 | 3.5 | O2 | 0.5-1 | |
| 4 | 2.3 | O2 | 0.5 | |
| 5 | 1.8 | O2 | 0.5 | |
| 6 | 1.4 | O2 | 0.5 | |
| 8 | 1 | O2 | 0.5 | |
| 10 | 0.8 | O2 | 0.5 | |
| 12 | 0.65 | O2 | 0.5 | |
| 14 | 0.6 | O2 | 0.5 | |
| Stainless steel | 0.5 | 50 | N2 | 7 |
| 0.8 | 33 | N2 | 10 | |
| 1 | 25 | N2 | 12 | |
| 2 | 8 | N2 | 15 | |
| 3 | 2.8 | N2 | 18 | |
| 4 | 1.2 | N2 | 18 | |
| 5 | 0.8 | N2 | 18 | |
| 6 | 0.45 | N2 | 18 | |
| Stainless steel | 0.5 | 55 | Air | 8 |
| 0.8 | 38 | Air | 9 | |
| 1 | 28 | Air | 12 | |
| 2 | 8.5 | Air | 15 | |
| 3 | 3.3 | Air | 18 | |
| 4 | 1.35 | Air | 18 | |
| 5 | 0.9 | Air | 18 | |
| 6 | 0.5 | Air | 18 | |
| Aluminum | 0.5 | 25 | Air/N2 | 8 |
| 0.8 | 18 | Air/N2 | 9 | |
| 1 | 12 | Air/N2 | 12 | |
| 2 | 3.5 | Air/N2 | 18 | |
| 3 | 1.5 | Air/N2 | 18 | |
| 4 | 0.8 | Air/N2 | 17 | |
| Brass | 0.5 | 30 | N2 | 12 |
| 0.8 | 17 | N2 | 12 | |
| 1 | 12 | N2 | 15 | |
| 2 | 3 | N2 | 18 | |
| 3 | 1.3 | N2 | 18 | |
| Copper | 0.5 | 18 | O2 | 12 |
| 0.8 | 12 | O2 | 12 | |
| 1 | 6 | O2 | 12 | |
| 2 | 1.5 | O2 | 15 | |
1kw cutting Carbon Steel 14mm 12mm 8mm 4mm 6mm
