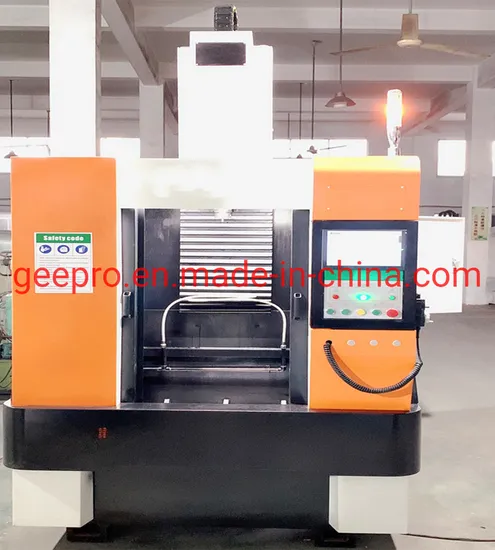

Siemens CNC Vertical Honing Machine for Cylinders Dia 12--200mm Depth 600mm
| US$15,500.00-27,800.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KH915
Abrasives
Whetstone
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
Inner Surface
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Delivery Time
30days
Transport Package
Standard
Trademark
GEEPRO
Origin
China
HS Code
8460401000
Production Capacity
100-200PCS/Year
Product Description
| 1 | Machining Hole Diameter | Ø12-Ø200mm |
| 2 | Allowable load of table | 200kg |
| 3 | Maximum stroke Depth | 600mm |
| 4 | Spindle motor power | 1.5KW |
| 5 | Spindle reducer ratio | 3:01 |
| 6 | Spindle Speed range | 100-1000rpm(CVT) |
| 7 | Return Oil Pump flow | 100L/min |
| 8 | Stroke Motor | 2.2KW |
| 9 | Stroke Control Type | "Servo Motor+Ball Screw" |
| 10 | Stroke Speed | 0-40m/min(CVT) |
| 11 | Honing tool Qty | 1 Axis |
| 12 | Single Working Station | 1(Single Honing tool) |
| 13 | Feeding Torque | ≥20NM |
| 14 | Honing Accuracy | ≤0.1mm |
| 15 | Feeding Type | Constant feed |
| 16 | Machine Weight | About 2.5 Tons |
| 17 | Machine Size L×W×H | 1500×1500×2700mm |
| 18 | Noise standard | Less 80 dB Normally |
