DD40E/2 Fincm Cnc Automatic Multi Hole Drilling Machine

Product Description

Product Description

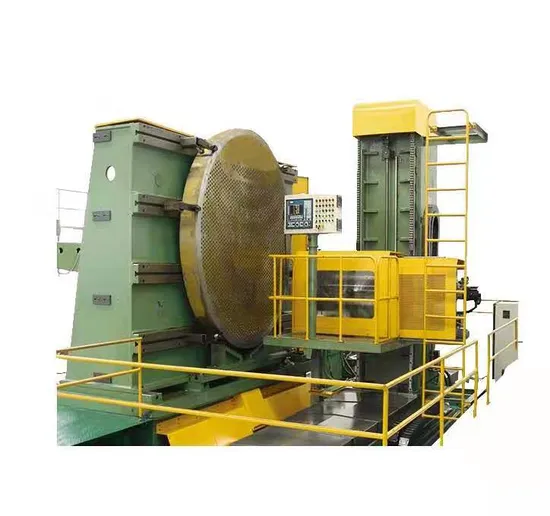

DD40E/2 FINCM CNC Double-Spindle Horizontal Deep Hole Hydraulic Drilling Machine 4000mm*800mm (Diameter*Thickness)
This equipment is mainly composed of longitudinal sliding table, vertical column sliding table, double-spindle feed sliding table, worktable and bending plate, hydraulic system, cooling system, automatic lubrication system, electrical system, chip conveyor, etc.
This DD40N/2 is mainly used for processing the holes on the tube plate of the shell and tube heat exchanger used in the petroleum, chemical, pharmaceutical, thermal power station, nuclear power plant and other industries. The maximum diameter of the workpiece is φ4000mm (need to be turned 180°), and the maximum drilling The depth is 750mm. The machine tool has high efficiency and good accuracy. The surface roughness of the drilling can reach Ra6.3~Ra3.2, the precision of the hole diameter can reach IT9~IT10, and the straightness of the hole is 0.3-0.8mm/800mm.
Equipment advantages:
1. This machine is a horizontal deep hole drilling machine.
2. The X, Y, and Z axes of the machine tool are guided by linear roller guides, which have extremely high load-bearing capacity and superior dynamic response performance, no backlash, and high motion accuracy.
3. The worktable of this machine tool is separated from the bed, and the clamping workpiece is not affected by the vibration of the bed. The working table is a casting with stable precision. The bending plate holding the workpiece is divided into two pieces, and the spacing is adjustable to adapt to workpieces of different diameters.
4. This machine tool has two spindles, which can work at the same time, and the efficiency is nearly double that of a single-spindle machine tool.
5. This machine is equipped with a flat chain type automatic chip conveyor, which is fully automatic.
6. This machine tool is equipped with an automatic lubrication system, which can regularly lubricate the parts that need lubrication such as guide rails and lead screws to effectively ensure the stable operation of the machine tool and increase the service life of each component.
7. This machine tool numerical control system adopts FAGOR8055 numerical control system, equipped with electronic handwheel, which is convenient for operation and management.
8. This machine tool has a variety of detection functions, including: 1) Spindle feed torque detection. 2) Spindle motor torque detection. 3) Flow detection. 4) Pressure detection. 5) Liquid level detection. 6) Temperature detection.
9. The machine tool's linear guide pair, ball screw pair, servo motor and its driver, planetary reducer, internal cooling joint (for gun drill), CNC system, hydraulic pump, valve and other machine tools have very high reliability. Comparable to imported machine tools, with fewer failures and high start-up rate. Detailed Photos
Main Technical Specifications:

Parameter name	Project		Parameter value
Processing range	Maximum workpiece diameter		Φ4000mm
	Borehole diameter		Φ14~φ40mm(BTA drill)
	Maximum drilling depth		800mm
Drilling head	Quantity		2
	Spindle center distance (adjustable)		170~220mm
	Spindle speed		200~2500r/min
	Spindle variable frequency motor power		2×15kW/20.5kW
Longitudinal slide movement (x-axis)	Travel		4000mm
	Maximum movement speed		4m/min
	Servo motor power		4.4kW
Vertical slide movement of column (Y-axis)	Travel		2000mm
	Maximum movement speed		4m/min
	Servo motor power		7.7kW
Movement of double spindle feed slide (Z axis)	Travel		900mm
	Feed rate		0~4m/min
	Servo motor power		2.6kW
Hydraulic system	Hydraulic pump pressure / flow		2.5~4MPa,25L/min
	Motor power of hydraulic pump		3kW
	Capacity of hydraulic oil tank		120L
Cooling system	Cooling pump pressure / flow		6.5MPa,2×200L/min
	Cooling pump motor power		2×22kW
	Cooling tank capacity		3000L
	Industrial refrigerator power		14kW
	Flux of magnetic roller paper tape filter		2×200L/min
	Filtration accuracy		25μm
Chip removal	Chip conveyor type		Flat chain
	Chip removal speed		2m/min
	Chip removal motor power		0.75kW
	Pump motor power / flow		2×1.5kW/2×200L/min
electrical system	Numerical control system		Siemens 828D
	Number of NC axes		3
	Total power of motor		About 125kW
Machine tool dimensions	Length × width × height		About 14×7×6m
Machine weight			About 85t
Accuracy	X-axis positioning accuracy		0.06mm/ overall length
	X-axis repeat positioning accuracy		0.03mm
	Positioning accuracy of y-axis		0.06mm/ overall length
	Y-axis repeat positioning accuracy		0.03mm
	Tolerance of hole spacing		±0.10mmDrilling face
			±0.3-0.8mm/800mmDrill out
	Hole roundness		0.02mm
	Aperture accuracy		IT9~IT10

Working temperature: 0ºC~40ºC
power:3 phase 4 wire; voltage:380±10%V ; frequency:50HZ
List of the Key Outsourced Components:

NO	Name	Brand	Country
1	linear guide rail	HIWIN/PMI	Taiwan(China)
2	Numerical control system	Siemens	Germany
3	Feed servo motor	Siemens	Germany
4	Spindle servo motor	Siemens	Germany
5	Grating ruler	FARGOR	Spain
6	Oil pump	JUSTMARK	Taiwan(China)
7	Hydraulic valve	ATOS/YUKEN	Italy / Japan
8	Planetary gear reducer	APEX	Taiwan(China)
9	Switch, button, indicator light	Schneider/ABB	France / Germany
10	Automatic lubrication system	HERG	Japan

Note: The above is our fixed supplier. If the supplier can not supply the components in case of any special matter, we will adopt the components with the same level, but the quality is no worse than the above.
