Flat Plate Collector Pool Energy Solar Panel Systems

Flat Plate Collector Pool Energy Solar Panel Systems

US$125.00
2-99 Pieces
US$95.00
100+ Pieces

Basic Info.

Model NO.
2m*1m
Working Temperature Range
Medium Temperature
Type
Flat Panel
Application
Water Heater, Solar Thermal
Pipe Material
Copper
Lenght
2000mm
Width
1000mm
Thickness
130mm
Absorptivity
95%±2%
Emissivity
5%±2%
Max. Working Pressure
0.6MPa
Surface Treatment
Low-Iron Matted Tempered Glass
Insulation
Glass Fibre and High Density Polyurethane
Wind Resistence
30m/S
Hail Resistance
25mm
Transport Package
Export Standard Packing
Specification
2m*1m
Trademark
Gaia Solar / OEM
Origin
Dezhou, Shandong
HS Code
8419901000
Production Capacity
1000sets/Week

Product Description

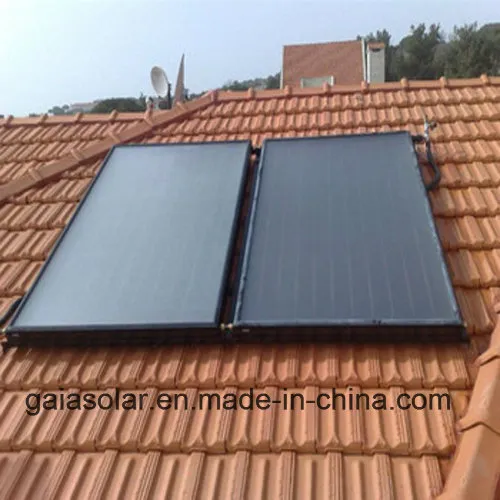

Flat Plate Collector Pool Energy Solar Panel Systems

Product Specification:
1) Low iron textured tempered glass(3.2mm thickness)offers the best capability of durability, strength.
2) Tinox blue titanium or black chrome coating have very high absoption rate to ensure the high efficiency.
3) Whole-plate ultrasonic welding technology makes the flate plate solar collector more beautiful, efficient and durable.
4) Special Anodized aluminum alloy frame to ensure handsome appearance and can accept high pressure without leakage.
Product Details
Features:

· Copper pipes and fins
· Black Chromium Coating
· Tempered glass cover
· High Thermal efficiency
· Size: 2000*1000*80mm or customized
Benefits:

· Durable and corrosion-resistant material makes your maintenance cost low.
· Comfortable hot water can be gained even in medium solar radiation areas.
· Increases the value of your property.
· Long lifespan to 25 years, makes your investment more worth it.
· Worry-free from hails or other terrible weathers.
Work Principle
Sunlight passes through the glazing and strikes the absorber plate, which heats up, changing solar energy into heat energy. The heat is transferred to liquid passing through pipes attached to the absorber plate. Absorber plates are commonly painted with "selective coatings". Absorber plates are usually made of copper or aluminum because the metal is a good heat conductor. Copper is more expensive, but is a better conductor and less prone to corrosion than aluminum.

Technical Data

Out Shell
Shell Material 6063-T5 Aluminum Alloy
Thickness 1.0mm
Technology Plastic Spray
Seal Strip Material EPDM
Glass Cover Material Low iron matted tempered glass
Transmissivity ≥92%
Thickness 3.2mm
Insulation Material Back Side Material Glass Fiber + Polyurethane
Thickness 20+25mm
Round Sides Material polyurethane
Thickness 15mm
Material of Plate Core Aluminum plate(0.4mm)
Welding Technology of Plate Core Laser Welding
Material and Specification of Back Plate and Sides Aluminum Alloy δ≥0.3mm
Solar Thermal Characteristic Film Black Ti Film
Film Technology Strong Magnetic Voltex High Voltage adsorption
Absorptance α=0.95±0.02
Emittance ε=0.05±0.02
Physical Characteristic Dimension(mm) 2000×1070×80mm
Net weight(kg) 38
Gross weight(kg) 41
Test Pressure 1.2MPa,10 minutes
Working Pressure 0.6MPa
Inner Plate Copper Pipe TP2 Φ22 Copper Pipe
Copper Pipe Specification(mm) Φ22×0.5
Reed Pipes PERM
Reed Pipe Specification(mm) Φ10×0.5
Plate Core Dimension(mm) 1950×950×0.4mm
Number of Copper Pipe 7 8 9

FAQ
Q1: Can I have a sample for testing?
A: Yes, of courses we can supply the sample for you!
Q2: Can I add my logo on the water tank?
A: Yes, OEM and ODM are available for us. But you should send us LOGO image.
Q3: How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems, we also send the spare parts, but you should pay.
Q4: Do you have inspection before delivery?
A: 100% self-inspection before packing.
Q5: Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory.

Packing & Delivery
Packing Details
Full container order in high quality export carton or pack it according to customers special request.
Delivery Details
Within 14 days
Our Company
Gaia Solar is located in Dezhou city which known as China Solar Valley. During past ten years history, Gaia Solar has become one of the largest private solar energy companies in china. Its main products solar evacuated tube, solar water heater, solar oven, parabolic trough solar collector and his receiver tube have exported more than thirty countries.
Good quality, competitive price and best service will be your best cooperator in the solar energy field.
Contact Us
Dezhou Gaia Solar Energy Co.,Ltd
Room 712, Baitiane Plaza, No.7 of HuBinnan Road, Dezhou City, Shandong Province
Website: gaiasolar.en.made-in-china.com
Mobile and Chat: 0086-13953485199
