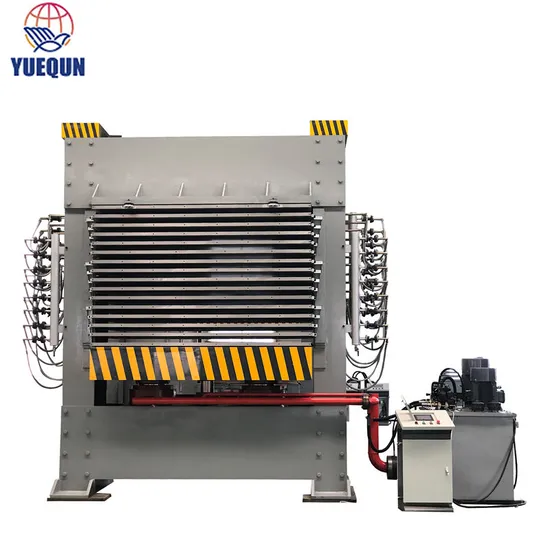

Automatic 500t 15 Layers Hydraulic Film Face Plywood Veneer Hot Press Machine

Automatic 500t 15 Layers Hydraulic Film Face Plywood Veneer Hot Press Machine

US$41,000.00 1 Set (MOQ)

Basic Info.

Model NO.
YQHP4X8/500/15
Type
Hot Press Machine
Automatic
Automatic
Certification
CE, ISO
Transport Package
Plywood Box
Specification
38 TONS
Trademark
YUEQUN
Origin
Linyi
HS Code
8479300000
Production Capacity
240set/Month

Product Description


Model
YQHP4X8/500/15
Max pressure
500 Tons
Board feeding direction
Transverse
Layers
15Layers
Layer spacing
70mm
Number of hot press plate
16pcs
Hot press plate size
2700*1370*42mm
Cylinder
2*ø360mm*1050mm

1*ø180mm*1050mm
Stroke
1050mm
Compression resistance
≤25 Mpa
Total Power
7.5KW+18.5kw
Low pressure pump flowing
250ml/r*1pcs
high pressure pump flowing
10ml/r*1pcs
Overall dimension
3550mm*1370mm*4650mm
Working methods
Full
Composite frame
Assembled
Upper and bottom beam
900mm
Middle beam
400mm
Thickness of the frame
35 mm
Weight
About 33Tons

Why Choose Us:
--------------------------
(1)lasering your logo on products and designing logo is free
(2)Delivery time within 30days
(3)No else charge
(4)MOQ≥1
(5)Provide products quotation
(6)Provide Packaging customization service
(7)SupportWechat/Email/whatsapp/
(8)We specializein this field for 25 years
(9)Excellent after-sale system
(10)Supporting visits to factory
Pre-sale service
1) Provide the free consultation of equipment
2) Provide the standard device and the flow chart
3) According to the clients' special requirement ,offering the resonable plan and free design to help to select the equipment .
4)Welcome to visit our factory
Service during the sales
1) Inspect the machine before leaving the factory
2) Oversea install and debug the equipment
3) Train the first-line operator
After sales service
1) 24 hours online service
2) Provide the VIDEO with install and debug the equipment
3) Provide technical exchanging
FAQ
Q1:Can you customize products for clients?
A1: Yes We can customize and produce woodworking machines according to the customer's requirements or drawings.

Q2:What about your products quality?
A2:We can provide you samples for quality inspection. If you order, we guarantee the quality is same with sample. In case of quality problem, we can sign agreements and our company will perform the duties.

Q3:How can we trust your factory?
A3:We recommend that you come to our factory to see the goods,to verify the real situation of the products, and know more about our factory.

Q4:Why does the price often change?
A4:The price depends on the latest prices of the raw materials.

Q5: How about delivery?
A: when the product is ready, it can be delivered to you after your full payment. We}ll provide technical guidance.
