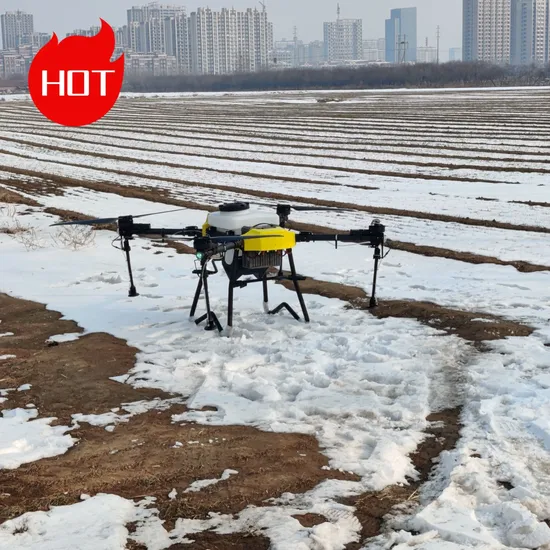

Dji T40 T50 T60 Agricultural Spraying Uav Sprayer Drone with 70L Granular Spreader Tank and Rtk

Product Description

DJI t40 t50 t60 agricultural spraying UAV sprayer drone with 70L granular spreader tank and RTK
- 40 liters pesticide tank, 70 liters fertilizer tank.
- 12m big spraying width, 16 hectares/hour high spraying efficiency.
- Aviation aluminum alloy & carbon fiber frame, foldable design, durable and light.
- 18s 30000mAh Quick detachable intelligent battery, 10 minutes fast charging.
- Heavy duty brushless motors, waterproof and dustproof, with self cooling system, can work continuously for 12 hours per day.
Product Parameters

Product Name	JT40L-404 Agricultural spreader Drone	Fly time	No-Load Hovering Time	20Min
Water Tank Capacity	40 Liters		Full Load Working Time	10Min
Spraying Width	10-12m(above crops 1-3 m)	Weight	Self Weight(without battery)	48.4KG (with 1 battery)
Spraying Efficiency	16Ha/hr (work continuously)		Full Load Weight	80~100KG
Spraying Speed	10 m/s	Size	Expand Size	1850*1520*930mm
Smart Battery	18s 30000mAh(≥600 cycles)		Fold Size	1050*900*930mm
Product Material	carbon fiber + aviation aluminum alloy		Packing Size	160*130*120CM
Spraying System	4pcs centrifugal nozzle	Charger	Model	Quick charger 8000W
Wind Resistance	10m/s		Charging Time	1pc 10 min(30%-99%, 220V)
Spraying Flow	13L/Min (adjustable)		Temperature	Battery temperature is below 60°
Motor System	Hobbywing	Waterproof Level	Motor	IP68
Flight Control System	JOYANCE		Whole Drone	IP57

Our Advantages
4G RTK antenna reduces magnetic interference,makes flight more stable and safe.
Split frame design, made of high-strength aluminum alloy, 50mm high-rigidity carbon fiber arm, simple structure, stable and durable.
8000W high power fast charger, 10 minutes full charge 1 battery (18s 30000mAh smart battery); 1 charger+2 batteries=continuous work.

70 liters large capacity fertilizer tank, big payload.
Built-in weighing sensor real-time correction of data deviation during flight.
No material detection function
Judging that there is no material/solution by weighing, and stop flying immediately after the operation is completed to avoid empty flight without material.
Blanking abnormality detection function
Detect the working status in real time, and trigger an alarm when the speed of spreading and feeding is abnormal.
If the spreader is stopped, blocked, the turntable is damaged, and the warehouse cannot be opened, it may lead to abnormal feeding.
Other Products
JT10L-404QC Sprayer Drone JT16L-404QC Sprayer Drone JT30L-606 Sprayer Drone

JT30L-404 Sprayer Drone JT16L-404HB Hybrid Drone JT Cleaning Drone
Company Profile

Shandong Joyance Intelligence Technology Co., Ltd.
JOYANCE is one of the earliest manufacturers of agricultural drones in China, design new products and optimize equipment performance according to the usage habits and working conditions of overseas customers. Our current products are mainly sprayer drones, spreader drones, 16L hybrid drone, cleaning drone, and multi-function drones.
Now we have real users in more than 90 countries from 5 continents, agents in 20 countries, hope to find a way to cooperate with you.
FAQ
What Certificates do you have?
CE, FCC, RoHS, ISO 9001. We also have 18 patents
Do you offer ODM/OEM?
Yes, we provide ODM, OEM, white label, etc.
Do you provide warranty and after-sales service?
Yes, we provide 3 year warranty for drone frame, 3~12 months for spare parts. Online technical support is for free all life.
Do you offer training?
Yes, we offer free online training, English & Spanish user manual, operation video and site training in some countries.
What is your payment terms?
T/T, Credit card, online transfer, Paypal. 50% deposit before production, balance before delivery.
What is the delivery time?
After payment, 3~7 days for sample order, 10~20 days for bulk order.
How to buy?
Contact our sales in this page to get quotation and buying guide.
How to be your distributor/dealer/agent?
We are looking for agent all over the world. Contact our sales to talk details.
