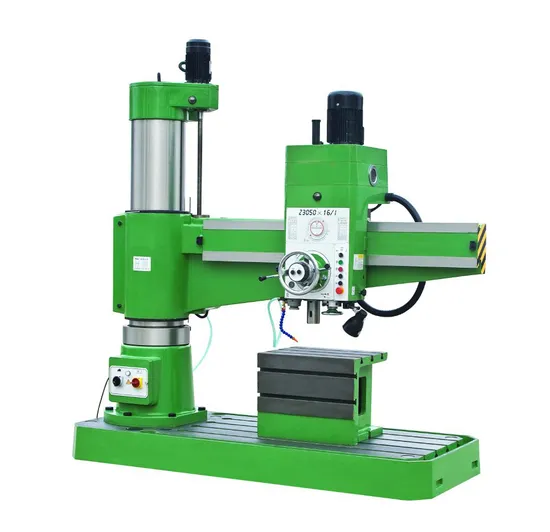

China Hydraulic Radial Drilling Machine Z3050X16/1
Basic Info.
Model NO.
Z3050X16
Controlling Mode
Artificial
Number of Shaft
None
Hole Diameter
50-100mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Max. Drilling Capacity
50mm
Distance Spindle Axis to Column
350-1600mm
Diameter of Column
350mm
Spindle Taper
Mt5
Spindle Travel
315mm
Spindle Speeds Range
25-2000mm
Spindle Speeds Series
16
Dimension of Worktable
630X500X500
Main Motor Power
4kw
Overall Size
2500X1060X2650
Transport Package
Plyw/Case
Specification
CE
Trademark
UNI-TECH
Origin
Shandong
HS Code
84592900
Production Capacity
80PCS/Per Month
Product Description
China hydraulic radial drilling machine z3050x16/1Main features:
1. With wide range of speed and feed, with manual \power and fine feeds. The feed of machines are very easily engaged and disengagedat any time
2. With safe and reliable feed safety machine, all parts easy operation and change
4. All controls centralized on the head stock easy operation and change.Clamping for assemblies and speed change of spindle achiered by hydraulic power, cmle is sensitna owet nelile
5.Main parts are made by machine center which import from KIA with high precision and efficiency, ensuring reliability and high quality.
| Model | Z3050×16/1 | Z3040×16/1 | Z3080X25 |
| Max. Drilling capacity (mm) | 50 | 40 | 80 |
| Distance spindle axis to column generating line (mm) | 350-1600 | 350-1600 | 500-2500 |
| Diameter of column (mm) | 350 | 350 | 550 |
| Spindle taper | MT5 | MT4 | MT6 |
| Spindle travel (mm) | 315 | 315 | 450 |
| Spindle speeds range (r/min) | 25-2000 | 25-2000 | 16-1250 |
| Spindle speeds series | 16 | 16 | 16 |
| Range of Spindle feeds (r/min) | 0.04-3.2 | 0.04-3.2 | 0.04-3.2 |
| Spindle feeds | 16 | 16 | 16 |
| Max. Distance spindle nose to working surface of base (mm) | 320-1220 | 350-1250 | 550-2000 |
| Dimension of worktable (mm) | 630×500×500 | 630x500x500 | 1000×800×560 |
| Dimension of base (mm) | 2400×1000×200 | 2400x1000x200 | 3530×1400×300 |
| Overall Size (mm) | 2500×1060×2650 | 2500x1060x2650 | 3730×1400×3790 |
| Power of Main motor (KW) | 4 | 3 | 7.5 |
| G.W/N.W (kg) | 3650/3400 | 3650/3400 | 15000/11000 |
| Packing dimension (cm) | 260x112x260 | 260x112x260 | 416×165×248/ |
| 382×63 |
