New Condition N Fold Hand Paper Towel Manufacturing Machine

Product Description

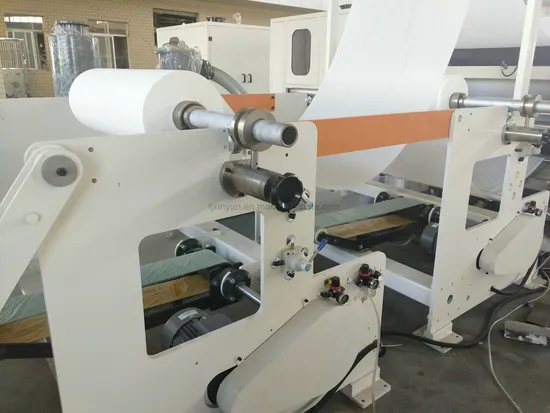

New condition N fold hand paper towel manufacturing machine XY-BT-288B
N Folding Glue Lamination Hand Towel Folding Machine is for making kitchen
towel. Raw material through embossing, glue laminating and interfolding into N fold kitchen towel. The glue lamination unit of this machine adopt leading technology and wall type structure, embossing pattern clear, glue well-distributed. Interfolding way makes it more convenient for home use. This machine is the best choice for making kitchen towel for middle and high-end market.
Functions and Features
1. Automatic counting sub-bit row of output, speed adjusted by frequency changer
2. Screw shear knives, Vacuum adsorption fold, web tension control by manual
3. Variable speed unwinding, can be adapted to base level of tension.
4. Electronically Controlled Pneumatic, easy to operate.
5. Pneumatic parent roll loading system; The unwinding belt is adjusted pneumatically, when the parent paper is used up the machine will slow down to stop; All the pneumatic device's air press are adjustable.
6. Product width range, to facilitate marketing
7. Paper break sensor, air compressor provided by buyer
8. High grade glue lamination unit,two layers connected with lamination, glue unit for lamination, automatic gluing composite.
9. Steel to rubber embossing ( two sets); The steel rollers were plated with hard chrome, the embossing is very clear;
11. Broken, winding can affect the automatic stop function;

Unfold size of finished product	210*(130-210)mm (Other size please point it out)
Folded size of finished product	70*(130-210)mm
Diameter of jumbo roll paper	1100 mm
Diameter of jumbo roll inner core	76.2 mm
Production speed	0-100 m/min
Programmable controller	PLC computer controller
Embossing unit	Two sets steel embossing to rubber
Counting unit	Ink marked
Machine power	5.5KW 380V 50HZ 3P
Overall dimension	about 4700*2400*2000mm

Parts processing and machines assembly in workshop. Why buy Machine from Fujian Xinyun Machinery Development Co., Ltd?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine, it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need). And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food, transportations and accommodation in buyer's city.
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
If you need more information about these machine,please feel free to contact me!
Welcome to contact us to get more details!
We can design the machine according to your request.
