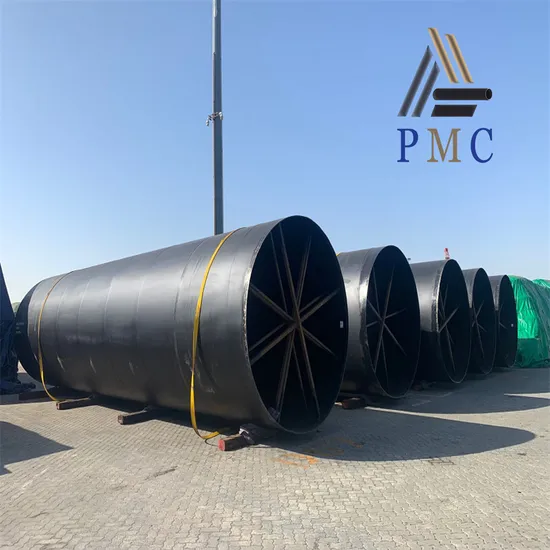

SSAW Spiral Welded Pipe with ASTM A252 Gr.1 2 3 API 5L Gr.B X42 X52 X60 X70 S235 S355 S275 Jr for Pile,Bridge,Wharf,Road, Building Structure,Transportation Use

Product Description

Product Description: Submerged arc welding (including submerged arc surfacing and electroslag surfacing, etc.) ,SSAW STEEL PIPEis an important welding method. Its inherent advantages such as stable welding quality, high welding productivity, no arc light and little smoke make it the main welding method in the manufacture of pressure vessel, pipe section, box beam and column and other important steel structures. In recent years, although many new welding methods with high efficiency and high quality have appeared successively, the application field of submerged arc welding has not been affected. From the perspective of the share of the weight of the deposited metal in various fusion welding methods, submerged arc welding accounts for about 10%, and it has not changed much over the years.
Specification:
SSAW Steel Pipe(Spiral Submerged Arc Pipe)
Sizes:
Out diameter:219mm-3620mm
Wall thickness: 5mm-25.4mm
Length: 1m-48m
Standard and Classification of SSAW Steel Pipe

Classification	Standard	Main Products
Line Pipe	API 5L PSL1/2	Line pipe
Casing	API 5CT/ ISO 11960 PSL1	Steel pipe for use as casing or tubing for wells of petroleum and natural gas industries
Steel Pipe for Fluid Service	ASTM A53	Black and hot-hipped galvanized welded and seamless steel pipe
	BS EN10217-2	Welded steel tubes for pressure purposes - delivery technical conditions - part2: Electric welded non- alloy and alloy steel tubes with specified elevated temperature properties
	BS EN10217-5	Welded steel tubes for pressure purposes - delivery technical conditions - part5: submerged arc welded non-alloy and alloy steel tubes with specified elevated temperature properties
Steel Pipe for Ordinary Structure	ASTM A252	Welded and seamless steel pipe piles
	BS EN10219-1	Cold formed welded structural hollow sections of non-alloy and fine grain steels - part1: Technical delivery conditions
	BS EN10219-2	Cold formed welded structural hollow sections of non-alloy and fine grain steels - part2: tolerances dimemsions and sectional properties

Chemical Analysis and Mechanical Properties of SSAW Steel Pipe

Standard	Grade	Chemical Composition(max)%					Mechanical Properties(min)
		C	Si	Mn	P	S	Tensile Strength(Mpa)	Yield Strength(Mpa)
API 5CT	h40	-	-	-	-	0.030	417	417
	J55	-	-	-	-	0.030	517	517
	K55	-	-	-	-	0.300	655	655
API 5L PSL1	A	0.22	-	0.90	0.030	0.030	335	335
	B	0.26	-	1.20	0.030	0.030	415	415
	X42	0.26	-	1.30	0.030	0.030	415	415
	X46	0.26	-	1.40	0.030	0.030	435	435
	X52	0.26	-	1.40	0.030	0.030	460	460
	X56	0.26	-	1.40	0.030	0.030	490	490
	X60	0.26	-	1.40	0.030	0.030	520	520
	X65	0.26	-	1.45	0.030	0.030	535	535
	X70	0.26	-	1.65	0.030	0.030	570	570
API 5L PSL2	B	0.22	0.45	1.20	0.025	0.015	415	415
	X42	0.22	0.45	1.30	0.025	0.015	415	415
	X46	0.22	0.45	1.40	0.025	0.015	435	435
	X52	0.22	0.45	1.40	0.025	0.015	460	460
	X56	0.22	0.45	1.40	0.025	0.015	490	490
	X60	0.12	0.45	1.60	0.025	0.015	520	520
	X65	0.12	0.45	1.60	0.025	0.015	535	535
	X70	0.12	0.45	1.70	0.025	0.015	570	570
	X80	0.12	0.45	1.85	0.025	0.015	625	625
ASTM A53	A	0.25	0.10	0.95	0.050	0.045	330	330
	B	0.30	0.10	1.20	0.050	0.045	415	415
ASTM A252	1	-	-	-	0.050	-	345	345
	2	-	-	-	0.050	-	414	414
	3	-	-	-	0.050	-	455	455
EN10217-1	P195TR1	0.13	0.35	0.70	0.025	0.020	320	320
	P195TR2	0.13	0.35	0.70	0.025	0.020	320	320
	P235TR1	0.16	0.35	1.20	0.025	0.020	360	360
	P235TR2	0.16	0.35	1.20	0.025	0.020	360	360
	P265TR1	0.20	0.40	1.40	0.025	0.020	410	410
	P265TR2	0.20	0.40	1.40	0.025	0.020	410	410
EN10217-2	P195GH	0.13	0.35	0.70	0.025	0.020	320	320
	P235GH	0.16	0.35	1.20	0.025	0.020	360	360
	P265GH	0.20	0.40	1.40	0.025	0.020	410	410
EN10217-5	P235GH	0.16	0.35	1.20	0.025	0.020	360	360
	P265GH	0.20	0.40	1.40	0.025	0.020	410	410
EN10219-1	S235JRH	0.17	-	1.40	0.040	0.040	360	360
	S275JOH	0.20	-	1.50	0.035	0.035	410	410
	S275J2H	0.20	-	1.50	0.030	0.030	410	410
	S355JOH	0.22	0.55	1.60	0.035	0.035	470	470
	S355J2H	0.22	0.55	1.60	0.030	0.030	470	470
	S355K2H	0.22	0.55	1.60	0.030	0.030	470	470

Latest SSAW project order:
SSAW Pipe Manufacturing Process:
Whole Services:
About us:
1.Pipe:
Permanent Steel Manufacturing Co.,Ltd has been committed to being a major supplier of quality kinds of carbon steel pipe, stainless steel tube, hollow section numerous types of piping equipments including Bend, Cap, Coupling, Elbow, Reducer, Stub End, Tee, Olet, Joint, Gasket, etc.
The Products from Permanent Steel Manufacturing Co.,Ltd are supplied in accordance with appropriate International Standards as well as Customer Specifications in a large variety of steel grades and dimensions. Permanent Steel Manufacturing Co.,Ltd on a 250,000 m2 area and has three production units: Foundry, Rolling and Extrusion mills. Permanent Steel Manufacturing Co.,Ltd operates under strict quality, environmental, as well as health and safety management systems, in compliance with ISO 9001, ISO 14001 and OHSAS 18001 standards. We have six spiral pipe production lines have introduced into the international advanced technique design andmanufacturing,each of them is outfitted with the whole set equipment from uncoiling to pipeindpection,packing and then Ex-work,includingun coiler, leve ling ma chine , fly welding machine ,plasma cutting machine,pipe endgrinding machine.hydrostatic testing machine,beveling machine,end expander, ultrasonic inspector for pipe body and weld seam,highlyclear X-ray image inspection system and so on.
2.Coating:
We have two advanced three-layer PE anticorrosive pipe production lines, which can carry out three-layer PE and FBE anticorrosion for steel pipe with diameter of 20mm to 1820mm, as well as epoxy asphalt anticorrosion production line, steel-plastic composite pipe production line, internal and external plastic coating and plasticlining production line, and cement mortar production line for inner wall of steel pipe. The annual anticorrosion production capacity reaches 18 million square meters. Since its establishment, the company has formed a good cooperative relationship with many domestic and foreign steel pipe manufacturers, gas companies and oil companies, and its sales network covers many countries.
Experimental Equipment:
Coil probe: steel coil into the production line, the first full board Ultrasonic Inspection
Leveling milling: through anvil plate leveling machine so that the original curl, and then pass thetwo edges of steel-sided milling machine milling, so that up to the requirements of the plate width,plate edge parallel groove shape
Cut type: steel production line along the outer edge of the coiled-coil tube
Welding and cutting: the use of advanced technology for pre double submerged arc weldingcutting inside from the foot of the welding specification welded steel pipe welded outside use, etc.
Visual inspection: some basic parameters by a professional technician check
Ultrasonic flaw: the inner and outer sides of the base metal and weld seam 100% inspection
X-ray detection: internal and external welds 100% X-ray television industry checks, the use of image processing system ensures detection sensitivity
Pressure test: hydrostatic testing machine by-root test steel pipe up to the standard requirementsto ensure that the test pressure
Chamfer level: steel pipe inspection pipe end processing, up to the requirements of the pipe end beveling size
Check: X-rays and then subjected to ultrasonic testing and magnetic particle inspectionconducted pipe end, check whether the deposit welding problems and defects in the pipe ends.
Oiled marking: Qualified oiled steel pipe corrosion and in accordance with user requirements formarking
Our Certificate:
End Users:
Our team:
Our advantage:
1. Full projects reference all of the world and vendor references from the most main oil and Gas in stitute, companies, investors
2. The inspection program is full supported to the docs requirements
3. The list of producing equipment and inspection equipment will be provided
4. The relative shipping docs, third party inspection report, Mill test certification, custom appreciate letters
5. The mill certification such as API monogram , ISO ect....
7. ITP, MPS & ISO manual
8. Prices competitively level
9. Full presentation experiences and guidance
10. Engineering design & construction capacities
11. Financial supports, various of payment term could be acceptable such as L/C, T/T.
12. Free custom inspection corporation & checked corporation in CCPIT
13. Full bank supported company with a perfect line of Credit "AAAAA"
ect
FAQ

Q: How long is your delivery time?
A: Depends on pipes size and quantity. 7-10 days for stocked steel pipe and 20-40 days for new productions according to quantity.bowl shape stainless steel smoking pipe screens
Q: Do you provide samples? Is it free or extra? 201 Stainless Steel Pipe used for Food and Chemical Industry
A: Yes,we could offer free steel pipe sample for your evaluation. stainless steel pipe fitting
Q: What is your terms of payment? steel pipe
A: TT payment way, TT+LC, or 100% sight LC and usance L/C for 30-120days,the specific payment should be addressed by further discussion.
