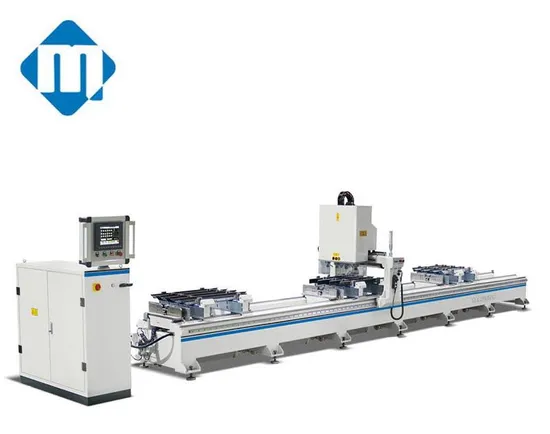

Four Heads CNC Drilling and Milling Machine for Aluminum Window Making

Product Description

CNC Drilling and Milling Machine Product Description

Youtube: https://youtu.be/514wtv6n9eQ
1.Adopt Delta CNC Control system, have the function of clear interface and easy operate.
2. 4 spindles, one time can finish four profiles processing, high efficient.
3. Spindle can be added or reduced according to customers' need.
4. Four positioning design, has more high processing efficiency.
5. Lubrication adopt intermittent supply system, bits cooling adopt system control spray pump device.
6. Machine can be used on processing aluminum, aluminum wood composite profiles, copper profile and other light metal.
7. One time clamping can complete finish four profiles processing.
8. Adopt imported high-precision ball screw, rail and rack to assure the high precision and stability of machine.
9. Adopt servo motor and driver, air cooling spindle, make sure machine high precision.
Product Parameters

Air Pressure	0.6~0.8MPa
X/Y/Z Axis stroke	6800mm*190mm*162mm
Input Power	17.5KW
Spindle Power	3KWx4
X axis power	2.9KW
Y axis power	1.3KW
Z axis power	1.3KW
Machining Profile Section (WXH)	110 X 110 mm
Max Length of profile	6800mm
X Axis Travel	6800mm
Y Axis Travel	190mm
Z Axis Travel	162mm
Overall size	7640*1500*1780

Detailed Photos

Certifications
Company Profile
Jinan Mag Group Co., Ltd. is one professional window solution supplier in Shandong province, China. Our products cover CNC processing machine, Aluminum window making equipment, insulating glass machine, Upvc window machine, curtain wall processing equipment, insulating glass and related insulating glass materials, etc.
With the progress of internationalization and globalization, we have 5 subsidiaries and 4 major production bases. At present, our products have been sold to more than 50 countries and regions. Relying on the sales centers of various countries, we also established service centers to provide customers with products and services efficiently.
Technology innovation is the vitality of an enterprise. We always keeps continual innovation and development, following global scientific research results. Mag Group embraces a R&D institute with over 20 scientific researchers and scientific research platforms equipped with advanced devices.
We achievements are successfully awarded the access to National Torch Plan projects, National Key New Product, Scientific Achievements Promotion Projects in National Construction Industry, Scientific Achievements Promotion Projects by Ministry of Construction and Government Green Procurement List.
Also, we has been awarded many honorary titles, such as National Hi-Tech Enterprise, Leading China Enterprise with Independent Innovation in Construction Technology, Shandong Provincial Government Quality Award, Leading Enterprise in Intellectual Property.
After several years' development, we have achieved great progress, Our R&D department provide the strong technical support and enable us to receive some O E M, O D M projects.
At present, we have more than 300 kinds of products, is the domestic building equipment domain product system complete manufacturer.
In the future, we will continue to uphold the "Make Building More Energy-saving And Make Life Getting Better" brand of faith, with new attitude, to provide customers with more cost-effective products and services, to create the bright, comfortable, high-quality window and doors productions.
