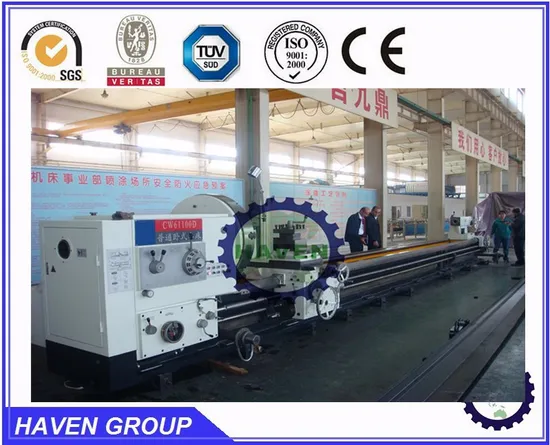

Precision Heavy Duty Lathe Machine
| US$1,000.00-100,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CW62140D/5000
Tool Holder
4 Stations Tool Post
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Max swing diameter over bed
1400mm
Max swing diameter over carriage
1030mm
Transport Package
Wooden Pallet
Specification
CW62140D/5000
Trademark
HAVEN
Origin
China
HS Code
84581900
Production Capacity
60 Units/Month
Product Description
Precision Heavy Duty Lathe MachineMain feature:
These lathes can perform to turn end-faces, cylindrical surfaces and internal holes of various parts as well as metric, inch, module and pitch threads. The top slides can be operated individually by power for cutting short taper surface. Long taper surface can be turned automatically through the compound movement combining longitudinal feed with the top slide feed, moreover, the machinery may be used for drilling, boring and trepanning.
Main specification:
| SPECIFICATION | Model | |||||
| CW61100D CW62100D | CW61125D CW62125D | CW61140D CW62140D | CW61160D CW62160D | |||
| CAPACITY | Max.swing diameter over bed | 1000 | 1250 | 1400 | 1600 | |
| Max.swing diameter over crossslide | 630 | 880 | 1030 | 1030 | ||
| Max.swing over gap | 1450 | 1700 | 1850 | 2050 | ||
| Width of bed | 755mm | |||||
| Max.length of workpiece | 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 | |||||
| SPINDLE | Spindle nose | A15 | ||||
| Sindle bore diameter | 130mm | |||||
| Taper of spindle bore | Metric No.140# | |||||
| Range of spindle speed | 3.15-315r/min 21kinds | |||||
| FEEDS | Longitudinal feeds range | 0.1-12mm/r 56 kinds | ||||
| Transversal feeds range | 0.05-6mm/r 56kinds | |||||
| Rapid speed | Z-axis | 3740mm/min | ||||
| X-axis | 1870mm/min | |||||
| upper toolpost | 935mm/min | |||||
| Metrec thread range | 0-120mm 44kinds | |||||
| Inch thread range | 3/8-28 teeth/iuch. 31kinds | |||||
| Modular thread range | 0.5-60mm 45kinds | |||||
| Pitch thread range | 1-56teech/iuch 25kinds | |||||
| TAILSTOCK | Tailstock sleeve taper | Morse NO.6 | ||||
| Tailstock sleeve diameter | 140mm | |||||
| Tailstock sleeve travel | 300mm | |||||
| MOTOR | Main motor power | 22kW | ||||
| Rapid motor power | 1.5kW | |||||
| Coolant pump power | 0.125kW | |||||
