environmental Protection Easy Operate Separator

Product Description

Product Description

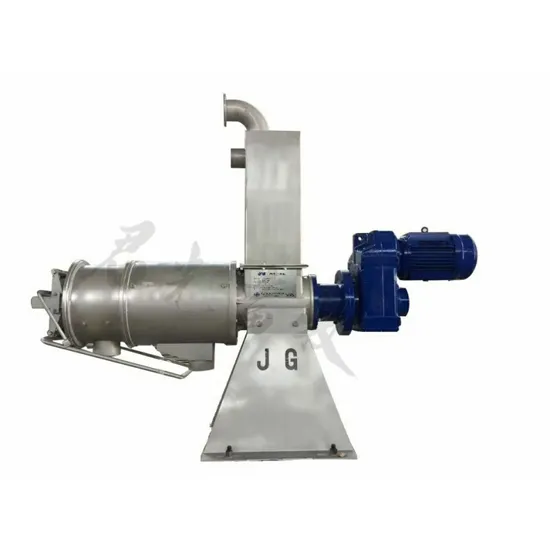

JGFL-7.5 solid-liquid separator is a special equipment for manure treatment, developed and produced by our company, which is mainly to solve the problem of manure treatment and manure reuse difficulties in farms, and then improve the environmental pollution problems of farms and their surroundings. The main body, mesh screen and feeding barrel of the equipment are made of high-quality 304 stainless steel, and the screw shaft is made of high-quality 316 stainless steel with wear-resistant coating, which can ensure the anti-corrosion and delayed service life of the equipment.The transmission part adopts an F-gear reducer to ensure the stability of use.
Specification

NO.	Item	Parameter range
1	Overall material	SUS304
2	Motor power	11KW
3	Length, width, height	2400MM/1000MM/1320MM
3	Maximum throughput	35m³/h
4	Moisture content of solids	65%-72%
5	Mesh screen gap	0.75-1.0MM
6	weight	700KG
7	Inlet diameter	Φ100MM
8	Overflow diameter	Φ150MM
9	Drain port diameter	Φ150MM

Remark
Separator type should be choose according to the bedding materials used in the dairy farm.
For GYFLJ-11: Front mesh screen gap 1.2mm,back mesh screen gap 1.0mm
GYFLJ-7.5-1: Front mesh screen gap 1.0mm,back mesh screen gap 0.7mm
GYFLJ-7.5-2: Front mesh screen gap 0.7mm,back mesh screen gap 0.5mm
Application
Spare parts
Mesh screen
Control box
