5xzc-15dxa Air Screen Seed Cleaner with Wind Sorting and Four Layers Sieve

Product Description

Product Description

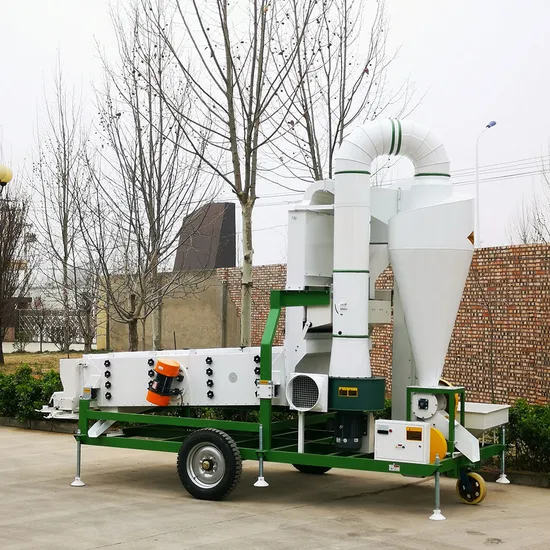

The 5XZC-15DXA Air-screener is the largest unit of the 5XZC series range. Fitted with 4 layers sieve. With a very wide range of sieves available, this machine is very versatile and can be used for seed cleaning of almost all crops.
The machines sift based on aerodynamics and the surface speed difference of seed and impurities, adjusting the seed of the air current. As impurities are light, they are sucked into the cyclone duster, while seed is heavy and is transferred into a vibrating screen. The vibrating screen has Four layers sieves with five outlet which eject large impurities, small impurities and seed respectively, The vibration screen used for separating seeds according different sizes.
Product Advantages
The machine works with 4 sieve levels, The sieve are cleaned on ball frames, with rubber balls. The rubber ball sifting structure complies with international standards, Sanli's patented rubber ball is highly elastic, endures and long lasting. The sieves are tightly fit in the machine by a clamp-locking system for quick changing of the sieves and thorough cleaning of the machine. The volume of air can be variable and adjusted by a controlling handle, assuring very accurate cleaning and sorting of seeds. The blower has a very stable and reproducible output. Transparent inspection windows for easy inspection and clean out. The machine has a very low noise level. Very easy and thorough cleaning of the machine and no contamination risk. No wooden frames on the sieves where seeds can hide. With cyclone duster, environmentally friendly model. Detailed Photos
Product Parameters

Model		5XZC-15DXA
Feeding-Capacity	Wheat seed	8000-10000 Kg/h
	Maize seed	7000-9000 Kg/h
	Beans	6000-8000 Kg/h
	Sesame	2000-3000 Kg/h
Size (L×W×H)		4640×2350×3560mm
Sieve size(L×W)		2400×1500mm
Sieve Layers		4
Weight		2030 Kg
Power supply		380V/50Hz/3-Phase
Total power		8.5 kW
Selection rate		≥98%
Clarity		≥97%
Broken rate		≤0.2%
Remarks		With Cyclone duster

Note: The capacities may vary depending on seed condition, moisture content, seed varieties, types and volumes of contaminants to be separated and percentage of foreign material acceptable in the final product. Cleaning Effect
FAQ
Q1:What is seed cleaning?
Ans: This is the process of removal of any foreign material or low quality, infected seeds and different crop varieties. Seed cleaning is that segment of the seed industry responsible for upgrading seed & improving planting condition of seed .This help in increasing the quality of the seeds hence ensuring increase in Farm productivity.

Q2:When should seed cleaning be carried out?
Ans: Seeds should be cleaned immediately after harvest. If the seeds are very moist and cleaning is done by machines, it may be necessary to dry the seeds within 12 - 16% moisture content before cleaning to prevent damage.
Q3:How should cleaning be done?
Ans:Cleaning should be done in a way that causes the least damage to the seed and does not waste good seeds.

Q4:Is seed cleaning something I can do myself to reduce costs?
Ans: Professional seed cleaning represents a small percentage of the final cost of finished goods. We see great value in the services we offer and hope to have an opportunity to work with you.
Q5: Can One Machines work on different seeds?
Ans:We also use individualized, seed specific settings on our machines to limit unwanted scarification. We provide number screens to be fitted on single machinery to our work on different variety of seeds
Q6:How quickly can you turn-around my order?
Ans: It depends on whether you have order single machin or complete plant, but generally speaking it takes only three week time after the receipt of order.

Q7:Capacity mentioned on the machines are input or output capacity?
Ans: Capacity mentioned on the machinery is the total amount of seed/grain machines it can handle per hour and in other words it is input capacity.
