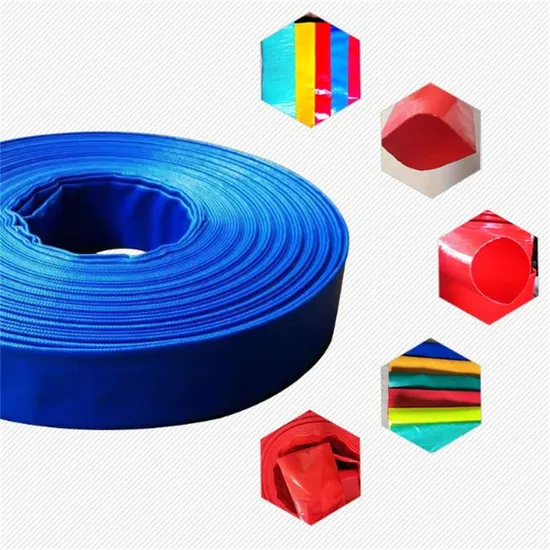

PVC Layflat Hose TPU Lay Flat Water Discharge Hose for Water Drain Pump Agriculture Irrigation

Product Description

Product Description
Construction:
Tube and Cover: PVC, blue,orange,red.
Reinforcement: high tensile polyester braiding
Characteristic:
Light weight,Good flexibility.
Corrosion resistant,anti-aging
Easy handle & storage
Various colors available.
Assemblies and/or cut lengths available.
Non-toxic,Non-smell
Burst pressure 3 times working pressure.
Temperature: -10ºC(-50°F)to +60C(+140°F)
PVC lay-flat hoses, also known as discharge hoses, transfer hoses, pump hoses, and flat hoses, are ideal for water, light chemicals, and other industrial, agricultural, irrigation, mining, and construction fluids. Because our flat hoses are made of PVC, they are lightweight and flexible, resistant to twisting and kinking, and easily compressed when not in use. As a result, lay-flat hoses are ideal for storage and transportation. It can be attached to a connector or quickly connected using a variety of methods, including standard hose clamps or crimping on the connector. Don't hesitate to get in touch with us if you have any specific requirements for Lay-flat hoses. Our PVC Lay-Flat Hose is a popular, long-lasting hose that meets the needs of professional farmers all over the world. The working pressure is increased by the use of a thick wall and high-strength polyester.
Product Parameters
Specification (Standard duty)

size	ID	Working Pressure		Bursting Pressure		Weight	Length	Volume
	mm	Psi	Bar	Psi	Bar	Kg/m	m/roll	m³/roll
3/4''	20	60-75	4	220	15	0.14	100	0.015
1''	25	60-75	4	220	15	0.15	100	0.015
1-1/4''	32	60-75	4	220	15	0.17	100	0.020
1-1/2''	38	60-75	4	220	15	0.21	100	0.024
2''	50	60-75	4	200	15	0.24	100	0.030
2-1/2''	65	60-75	4	200	15	0.32	100	0.044
3''	75	60-75	4	200	12	0.36	100	0.052
4''	102	60-75	4	200	12	0.55	100	0.065
5''	127	60-75	4	200	12	0.75	100	0.110
6''	152	60-75	4	200	12	0.90	100	0.120
6-1/2''	163	60-75	4	200	12	1.20	100	0.150
8''	203	60-75	4	180	12	1.65	100	0.230
10''	252	60-75	4	180	12	2.60	50	0.180
12''	304	60	4	160	10	3.10	50	0.240
14''	354	60	4	150	10	5.10	50	0.300
16''	400	60	3	120	9	6.50	50	0.400

Specification (2bar)

size	ID	Working Pressure		Burst Pressure		Weight	Length	Volume
	mm	Psi	Bar	Psi	Bar	Kg/m	m/roll	m³/roll
1-1/2"	38	30-45	2-3	95-140	6-9	0.20	100	0.022
2"	50	30-45	2-3	95-140	6-9	0.23	100	0.030
2-1/2"	65	30-45	2-3	95-140	6-9	0.31	100	0.038
3"	75	30-45	2-3	95-140	6-9	0.36	100	0.040
4"	102	30-45	2-3	95-140	6-9	0.55	100	0.055
6"	152	30-45	2-3	95-140	6-9	0.85	100	0.120

Specification (6bar)

size	ID	Working Pressure		Burst Pressure		Weight	Length	Volume
	mm	Psi	Bar	Psi	Bar	Kg/m	m/roll	m³/roll
1-1/2"	38	90	6	280	18	0.23	100	0.022
2"	50	90	6	280	18	0.3	100	0.0348
2-1/2"	65	90	6	280	18	0.43	100	0.0432
3"	75	90	6	280	18	0.5	100	0.046
4"	102	90	6	280	18	0.8	100	0.09
6"	153	90	6	280	20	1.8	50	0.094
8"	203	90	6	280	16	2.2	50	0.132

Specification (Heavy duty)

size	ID	Working Pressure		Bursting Pressure		Weight	Length	Volume
	mm	Psi	Bar	Psi	Bar	Kg/m	m/roll	m³/roll
3/4''	20	165	10	495	30	0.15	100	0.008
1''	25	165	10	495	30	0.2	100	0.01
1-1/4''	32	165	10	495	30	0.21	100	0.012
1-1/2''	38	150	10	450	30	0.29	100	0.015
2''	51	116	8	348	24	0.35	100	0.0396
2''	51	150	10	450	30	0.43	100	0.042
2-1/2''	65	116	8	348	24	0.55	100	0.0435
2-1/2''	65	150	10	450	30	0.65	100	0.046
3''	76	116	8	348	24	0.66	100	0.05
3''	76	150	10	450	30	0.85	100	0.056
4''	102	116	8	348	24	1	50	0.0686
4''	102	150	10	450	30	1.2	50	0.0832
6''	153	115	8	345	24	2.1	50	0.136
8''	203	110	8	330	20	2.8	50	0.182

Application
Packaging & Shipping
Company Profile
Kebing has focused on the professional hose, The company integrates production, sales, and scientific research into a new high-tec, polymer composite material plastic product manufacturer. The resin hoses produced by our company include pneumatic hoses, high-pressure hoses, air hoses-fluid hoses, garden hoses, fire hoses, steel wire hoses, plastic hoses, suction hoses Hundreds of varieties of dust pipes, ventilation pipes, etc; We′re pleased to get your Inquiry and we will reply you as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
