GB/T12981 Brake Fluid Low Temperature Fluidity Tester

Product Details

Product Description

Product Description

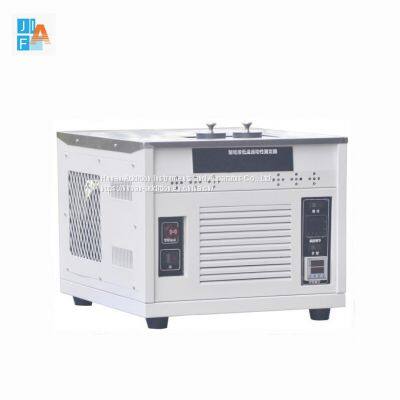

Brake Fluid Low Temperature Fluidity Tester
Product model: JF12981B
Product Introduction
This instrument is suitable for measuring the fluidity and appearance changes of brake fluid at low temperature. The test principle is to take it out and observe the appearance changes such as transparency, precipitation, delamination and other phenomena at the specified test temperature after placing it for a specified time, and at the same time measure the fluidity.
Technical Parameter
1. Applicable standard: GB/T12981
2. Refrigeration method: compressor refrigeration
3. Temperature control method: digital display PID temperature controller
4. Temperature control range: normal temperature~-50℃ (or choose two temperature and two holes)
5. Timing method: digital display timer
6. Working unit: 2 units
7. Alarm mode: buzzer alarm
8. Working power supply: AC220V 50HZ
9. Power of the whole machine: 1600W
10. Instrument size: 660*560*490mm
11. Net weight: 40KG
Performance characteristics
1. It adopts metal bath cold trap and imported Danfoss hermetic compressor for refrigeration, with large cooling capacity;
2. Unique shock absorption technology, low noise;
3. Microcomputer temperature controller, PID self-tuning, PT100 temperature sensor, high precision;
4. Digital display time controller, buzzer alarm, prompt when the test is over;
5. The casing of the instrument is formed of cold-rolled steel plate, and the surface is treated by electrostatic spraying;
